Newmar Power PX-3 Waterproof Junction Box for Marine and Electrical Applications

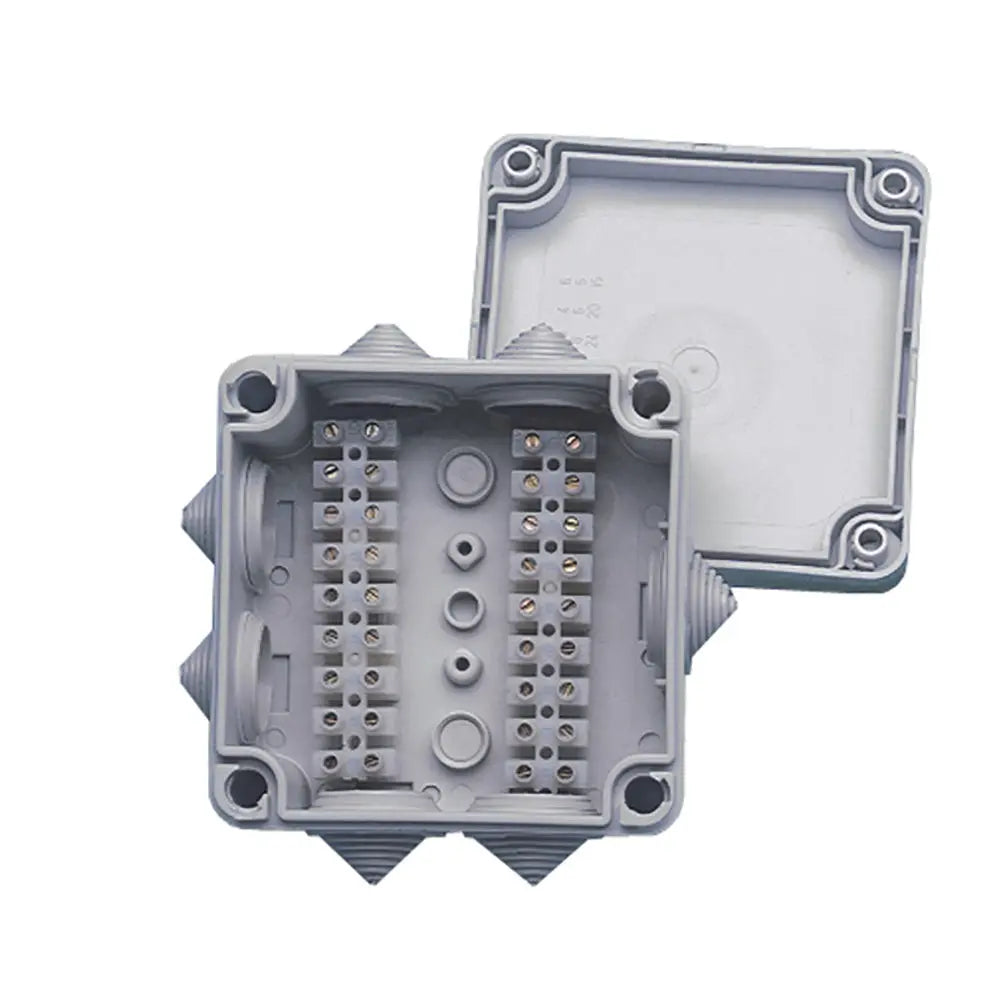

PX-3 Junction Box

This waterproof junction box is ideal for making wiring connections above or below decks, even in areas subject to occasional spray.

Connector Strips Installed in Boxes

Molded nylon encases pairs of connectors that use screw compression to secure wires without the use of lugs. Ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel finger compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage and meeting ABYC standards.

Features:

• Similar to BX Series junction boxes but made from rugged, non-corrosive, high-impact polypropylene
• The snap-on cover provides a watertight seal
• Universal cut-to-fit graduated diameter cable entries accommodate a wide cable range
• Multiple position connector strips with captive screw compression wire terminals installed, see matrix below for connector strip specifications per box
• Multiple knockouts are provided for conduit access (in addition to cable entries)
• IEC Waterproof Rating: IP55 Water projected in jets against the enclosure from any direction shall have no harmful effects.

Specifications:

• Number of Connector Strips: 2
• Positions per Strip: 9
• Max Wire Gauge: 16
• Number of Cable Entry Ports: 7
• Number of Cable Entries Installed: 7
• Spare Cable Entries Provided: 0
• Cable Diameter Range (inches): .14 .99
• Cable Diameter Range (mm): 3.5 25.5
• Box Size (inches): 4.45 x 4.45 x 2.29
• Box Size (cm): 11.3 x 11.3 x 5.8

The Newmar Power PX-3 Junction Box is a robust and reliable solution designed for making secure wiring connections in environments exposed to moisture and occasional spray. Crafted from high-impact polypropylene, this waterproof junction box offers enhanced durability over traditional metal options, making it ideal for marine, industrial, or outdoor electrical installations. Its rugged construction ensures resistance to corrosion, UV exposure, and impact, providing long-lasting performance in demanding conditions. The snap-on cover guarantees a watertight seal, protecting internal connections from water ingress and environmental damage. With seven cable entry ports and multiple knockout options, the PX-3 accommodates a wide range of wiring setups, simplifying installation and future modifications. The box features two connector strips with nine positions each, equipped with captive screw compression terminals that securely hold wires without the need for lugs, meeting ABYC standards for marine wiring safety. Brass barrels inside the connector strips capture wires and are held in place with stainless steel fingers, ensuring a secure connection while protecting copper strands from cuts or breakage. The universal cut-to-fit cable entries adapt to cable diameters from 3.5 to 25.5 mm (0.14 to 0.99 inches), providing flexibility for different wiring requirements. The enclosure's IEC IP55 rating guarantees protection against water projected in jets from any direction, making it suitable for outdoor or wet environments. Overall, the Newmar PX-3 Junction Box combines rugged construction, versatile features, and waterproof integrity to deliver a dependable connection point for electrical systems in challenging conditions, whether installed above or below decks or in exposed outdoor locations.

Features:

• Constructed from high-impact polypropylene for rugged, non-corrosive durability

• Snap-on cover provides a watertight, IP55-rated seal against environmental elements

• Universal cut-to-fit cable entries accommodate cables from 3.5 to 25.5 mm in diameter

• Includes two connector strips with nine positions each, featuring captive screw compression terminals

• Multiple knockouts and cable entry ports for versatile wiring access and conduit connection
