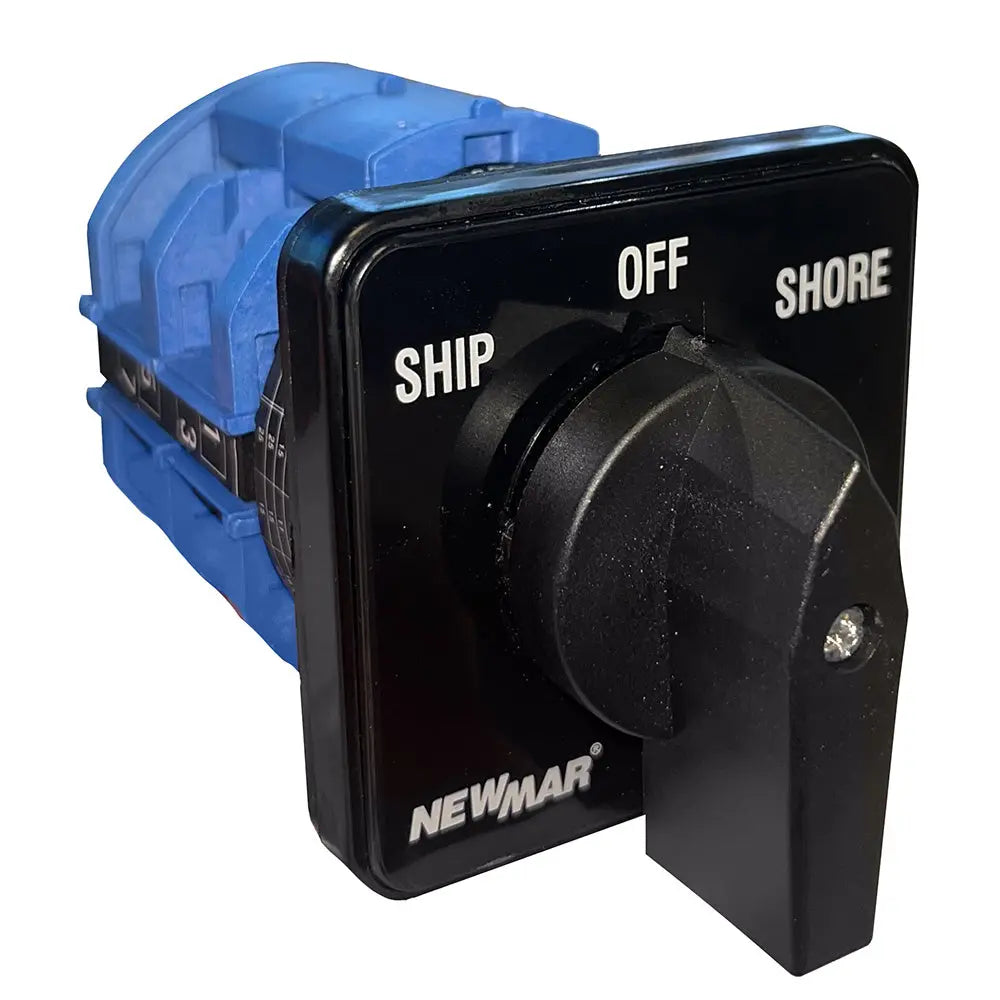

Newmar Power SS Switch 7.5 AC Selector Switch for Marine and RV Applications

SS Switch - 7.5 AC Selector Switch

This AC source selector switch is an essential item for any vessel with an onboard AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.

The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.

The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.

Features:

• Maybe rear-mounted in a panel with a thickness of up to 1/4

Specifications:

• Amperage @ 115/230V: 63
• Number of Poles: 2
• Switch Positions: 2 + OFF
• Standard Plate Markings: SHIP-OFF-SHORE
• Depth Dimensions: 2-3/8 in.

The Newmar Power SS Switch 7.5 AC Selector Switch is an essential component for vessels and RVs equipped with onboard AC generators or inverters. Designed to ensure safety and protect electrical systems, this switch allows operators to isolate power sources easily, preventing potential damage or safety hazards caused by simultaneous connection of multiple AC sources. Its robust construction and safety features make it suitable for demanding marine and recreational vehicle environments. The switch is fitted with a compact escutcheon plate, engraved with clear switch position markings for straightforward operation, marked with SHIP, OFF, and SHORE to indicate different power source states. It is engineered with heavy-duty contacts and a positive step cam mechanism, providing low-resistance contact closure for reliable performance over time. Approved by cUL and CE-marked, the switch adheres to international safety standards, ensuring dependable operation in critical applications. Its versatile mounting design allows for rear mounting in panels up to 1/4 inch thick, making it adaptable to various installation configurations. With a maximum current capacity of 63 amps at 115/230 volts, this two-pole switch offers a durable solution for managing multiple power sources safely. Its compact dimensions and sturdy construction make it suitable for integration into control panels where space and reliability are paramount. Whether used on ships, recreational vehicles, or mobile marine systems, the Newmar Power SS Switch 7.5 AC Selector Switch provides a reliable, safe, and efficient means of switching between power sources to ensure continuous operation and safety. This switch is an ideal choice for those seeking a high-quality, compliant, and easy-to-install solution for AC source management in demanding environments.

Features:

• Rear-mounted installation compatible with panels up to 1/4 inch thick

• Maximum amperage of 63 amps at 115/230 volts

• Two-pole switch with three positions: SHIP, OFF, SHORE

• Engraved switch position markings for easy identification

• Heavy-duty contacts with positive step cam mechanism for reliable contact closure

• cUL approved and CE-marked for safety and compliance

• Compact design suitable for various installation environments
