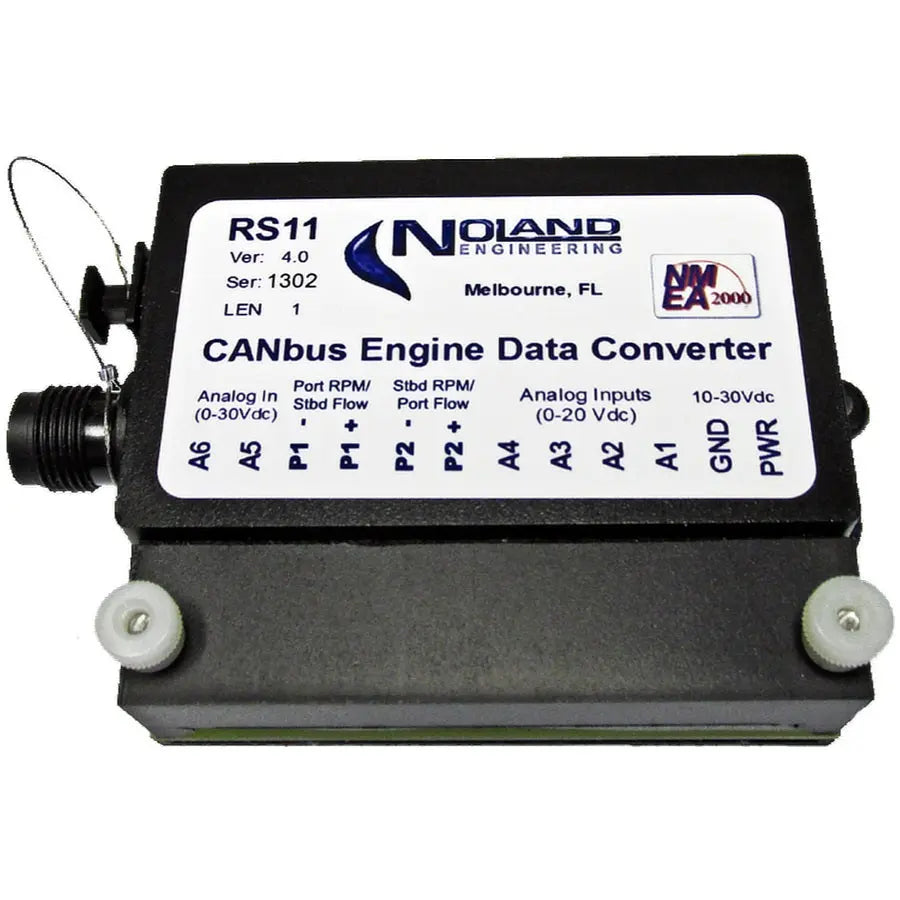

Noland RS11 Analog Engine to NMEA 2000 Data Converter

Noland RS11: Efficient Analog Engine to NMEA 2000 Data Conversion

Noland RS11 Analog Engine to NMEA 2000 Data Converter

Noland RS11 Analog to NMEA 2000(R) Data Converter

Model: RS11

The RS11 Engine Data Converter converts tachometer signals and analog gauge voltages from virtually any engine into CANbus digital messages (NMEA 2000(R)). It is configurable for either single or dual engine installations and includes a USB PC interface for initial configuration, data monitoring, and software updates. Output messages are applied to the CANbus for display by compatible devices. The RS11 is designed for versatile interfacing to almost any type of analog engine sensor or gauge commonly used on marine or automotive engines. It has two pulse (RPM/Fuel Flow) inputs, six analog (gauge) inputs and supports both 12 and 24 volt systems. The analog inputs can be assigned all to one engine or be split between two engines. Multiple RS11's can be installed on the same CANbus. The RS11 can be used with existing analog gauges or as a replacement for them. Current sources within the RS11 will power resistive sending units where gauges have been removed or new senders(without gauges) have been added.

Seamless Integration with Marine Networks

The Noland RS11 serves as a vital bridge between analog engine signals and modern NMEA 2000 networks. By converting multiple engine parameters such as RPM, temperature, and oil pressure into digital data, the RS11 ensures that your vessel's engine information integrates smoothly with advanced marine electronics. This capability allows boat owners and marine technicians to monitor engine performance alongside other onboard systems for improved operational efficiency and safety.

High Compatibility and Easy Installation

Designed with user convenience in mind, the Noland RS11 analog engine to NMEA 2000 data converter supports a wide range of analog inputs common in many marine engines. Its plug-and-play design reduces installation time, making it suitable for both new builds and retrofits. The device features robust build quality to endure harsh marine environments, ensuring reliable data communication even in demanding conditions.

Accurate and Real-Time Engine Monitoring

With the Noland RS11, users gain access to precise, real-time engine data transmitted over the NMEA 2000 network. Real-time monitoring allows for prompt detection of abnormalities, helping to prevent engine failure and optimize performance. The converter's reliable data transmission aids in maintaining vessel safety, reducing downtime, and improving the overall boating experience.
