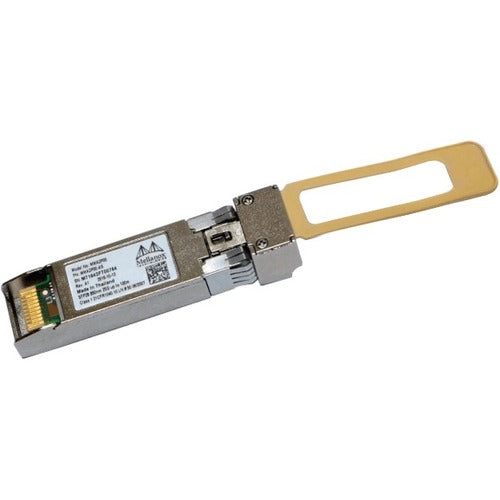

NVIDIA Mellanox MMA2P00-AS 25Gb/s Optical Transceiver for Multi-Mode Fiber

The NVIDIA Mellanox MMA2P00-AS is a high-performance, pluggable SFP28 optical transceiver designed for 25Gb/s Ethernet applications. This module leverages Mellanox's advanced integrated circuit technology to deliver reliable, high-speed data transmission with low power consumption in a compact form factor. Compatible with multi-mode fiber optic cables, it operates over a pair of multi-mode fibers using a nominal wavelength of 850 nm, making it suitable for data centers and high-speed network environments. The MMA2P00-AS supports transmission distances up to 100 meters on OM4 fiber and 70 meters on OM3 fiber, ensuring flexible deployment options for various infrastructure needs. It features a standard SFP28 connector on the electrical side supporting CAUI-1, with optical channels transmitting data in both directions at rates up to 25.78125 GBd. Rigorous production testing guarantees optimal out-of-the-box performance, durability, and safety, meeting Class 1 laser safety standards. The transceiver includes advanced features such as selectable retiming, programmable transmit input equalizer, and programmable receive output emphasis, enabling fine-tuning for optimal signal integrity and compatibility with diverse networking equipment. Designed for ease of installation and maintenance, the MMA2P00-AS is hot-pluggable and environmentally friendly, backed by a one-year warranty from NVIDIA. Whether upgrading existing infrastructure or deploying new high-speed networks, this optical transceiver offers a robust solution for demanding data transmission requirements.

Features:

• Class 1 laser safety ensures safe operation in sensitive environments

• Supports up to 100 meters on OM4 fiber and 70 meters on OM3 fiber at 25Gb/s

• SFP28 power level 1 compliance guarantees reliable performance

• Bit Error Rate better than 1E-15 for data integrity

• SFF-8402 compliant for broad compatibility

• Operates with a 3.3V power supply for energy efficiency

• Selectable retiming feature for signal optimization

• Programmable transmit input equalizer for enhanced signal quality

• Maximum data rate of up to 26Gb/s supports future-proofing

• Programmable receive output emphasis for improved signal clarity
