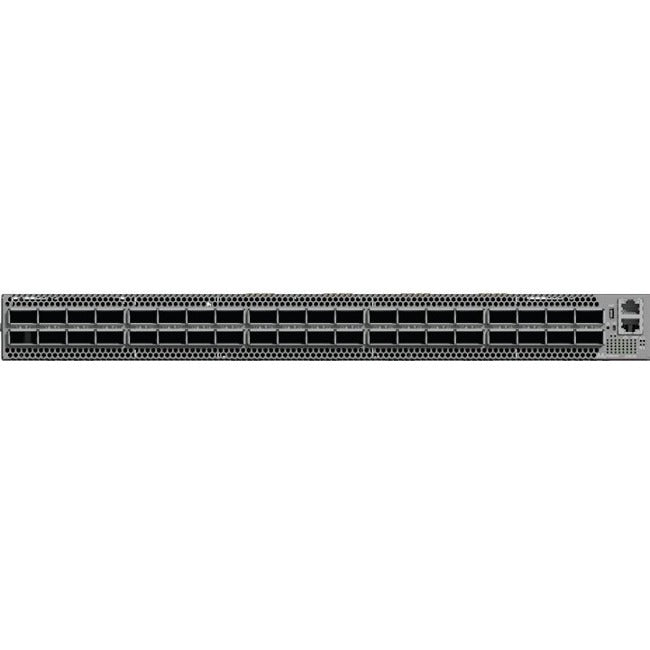

NVIDIA Mellanox QM8790 Quantum HDR InfiniBand Switch, 40-Port, 200Gb/s, Part MQM8790-HS2F

The NVIDIA Mellanox QM8790 Quantum HDR InfiniBand Switch delivers high-speed, low-latency connectivity for high-performance computing (HPC), enterprise data centers, artificial intelligence, and demanding storage environments. With up to 16Tb/s of non-blocking aggregate switch throughput and sub-90ns port-to-port latency, this rack-mountable 1U switch is designed to support bandwidth-intensive workloads and next-generation server architectures. The MQM8790-HS2F provides 40 HDR 200Gb/s ports with full bidirectional bandwidth per port, making it suitable for top-of-rack leaf connectivity and cluster deployments ranging from small installations to extremely large-scale data centers.
The QM8790 is built around Mellanox Quantum InfiniBand technology and supports in-network computing through Co-Design SHARP technology. This architecture enables active data center devices to accelerate communication frameworks using embedded hardware, helping improve application performance for distributed computing and advanced analytics. The switch can also support up to 80 HDR100 100Gb/s ports when used with splitter cables, providing flexible connectivity options as network requirements evolve.
Designed for resilient data center operation, the NVIDIA Mellanox QM8790 includes redundant and hot-swappable system components. Its 1+1 redundant power architecture and N+1 redundant hot-swappable fans help maintain service continuity, while Gold+ and Energy Star certified power supplies support energy-conscious deployment. The switch is RoHS compliant and includes a rail kit for rack installation. Whether deployed in an HPC cluster, AI infrastructure, or enterprise data center, the MQM8790-HS2F combines high port density, efficient rack utilization, and advanced InfiniBand switching capabilities in a compact 1U platform.

Features:

• 40 HDR 200Gb/s InfiniBand ports in a 1U rack-mountable switch

• Up to 16Tb/s of non-blocking aggregate switch throughput

• Sub-90ns port-to-port switch latency

• Supports up to 80 HDR100 100Gb/s ports using splitter cables

• Mellanox Quantum architecture with Co-Design SHARP in-network computing

• 1+1 redundant and hot-swappable power supplies

• N+1 redundant and hot-swappable fans

• Gold+ and Energy Star certified power supplies

• RoHS-compliant design

• Includes rail kit for rack installation
