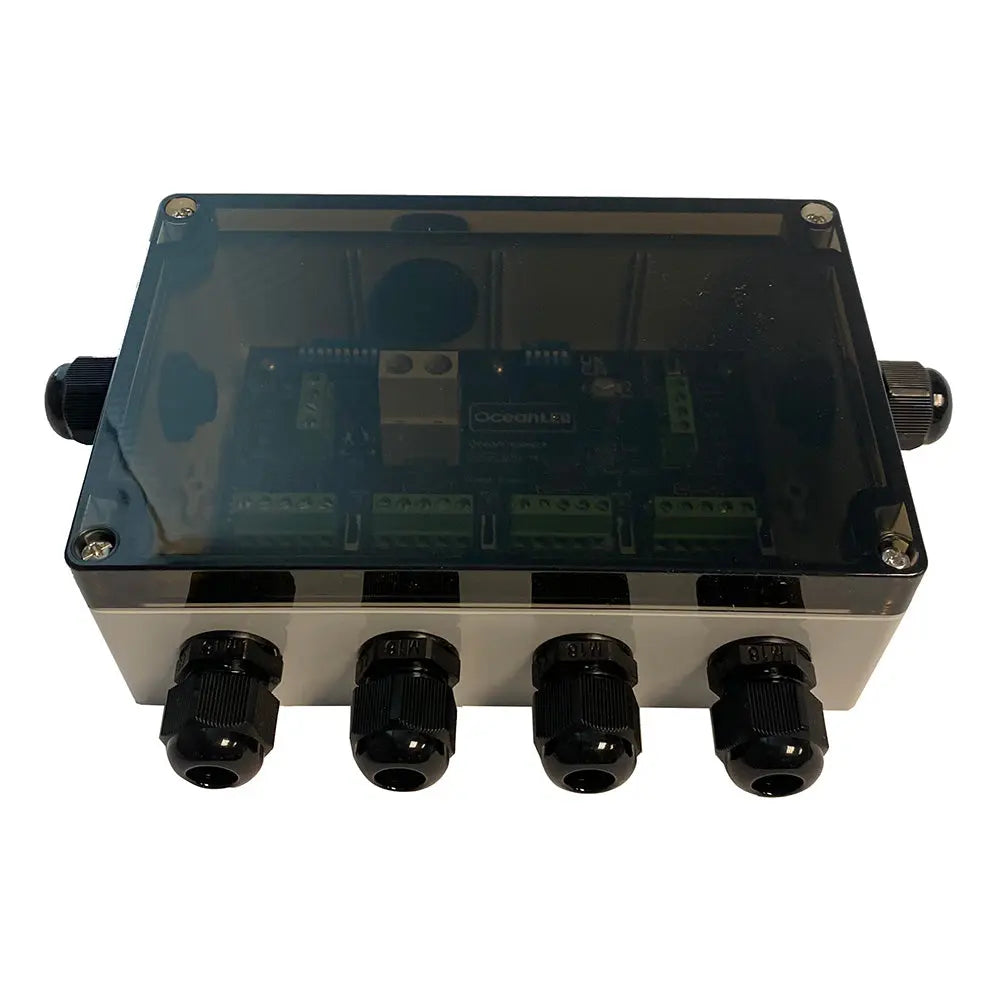

OceanLED OceanConnect Junction Box - Waterproof DMX-Controlled Low-Voltage Power Hub

OceanConnect Junction Box

The OceanConnect is a waterproof (IP66) DMX-controlled, low-voltage DC (932V) junction box.

The OceanConnect provides one power unit and four individually switched fused power outputs (6 amps per output) to connect DC-powered lights or other DC-switched units. The unit also supports powering and individual addressing of up to four DMX-controlled OceanLED X-Series lights.

Contents:

• 1x OceanConnect unit, including 4x 7.5A blade fuses
• 4x mounting screws
• 1x twin entry cable grommet
• 4x blanking plugs

Specifications:

• Voltage: 12/24V DC (max 32V DC)
• Input/Output Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out
• Power Input Terminals Wire Gauge: 8-20 AWG
• DMX In/Out, and Lights Out Terminals Wire Gauge: 12-28 AWG
• Light Outputs: DMX Power- 4 x individual fused 6 Amp each max
• DMX Input: 1x DMX Input (to connect the DMX controller)
• DMX Output: 1x DMX Output (to link junction boxes in the chain)
• DMX Terminator: Onboard DMX terminator with an on/off switch

Physical Specifications

• Dimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3")
• Enclosure: IP66-robust polycarbonate
• Weight: 270g

The OceanLED OceanConnect Junction Box is a rugged, waterproof (IP66) enclosure designed for reliable control and distribution of low-voltage DC power in professional lighting installations. Compatible with 12V and 24V DC systems, it provides a secure solution for connecting and managing multiple DMX-controlled LED fixtures and other DC-powered units. The unit features one main power input and four individually switched fused outputs, each capable of delivering up to 6 amps, ensuring safe and dedicated power distribution for each connected device. This makes it ideal for use in outdoor environments or demanding settings where durability and precise control are essential.
Constructed from durable polycarbonate, the OceanConnect measures approximately 9 inches long, 6.8 inches wide, and 2.3 inches high, with a lightweight design weighing around 9 ounces for easy installation. It includes four mounting screws, a twin entry cable grommet, and blanking plugs for sealed and flexible setup. The unit supports wiring with wire gauges from 8 to 20 AWG for power input and 12 to 28 AWG for DMX and lighting outputs, accommodating a variety of wiring needs. An onboard DMX terminator with a switch allows seamless chaining of multiple junction boxes, ensuring signal integrity across complex lighting setups.
Designed for flexibility, the OceanConnect features one DMX input and one DMX output, enabling easy integration with DMX controllers and other junction boxes. The unit's built-in fuse protection and individual switchable outputs provide enhanced safety and control, reducing the risk of overloads or short circuits. Whether powering OceanLED X-Series lights or other compatible fixtures, this junction box offers a reliable, weatherproof solution for professional lighting applications, including stage, architectural, and landscape lighting projects.

Features:

• Waterproof (IP66) enclosure for outdoor use

• Supports 12V and 24V DC systems with a maximum of 32V DC

• Four individually switched fused outputs (6 amps each) for dedicated device control

• Includes main power input and DMX control with input and output ports

• Built-in DMX terminator with on/off switch for signal integrity

• Durable polycarbonate construction with compact dimensions

• Supports wiring with gauges from 8-20 AWG for power and 12-28 AWG for DMX and lights

• Includes mounting screws, cable grommet, and blanking plugs for flexible installation

• Compatible with OceanLED X-Series DMX-controlled lights

• Lightweight and robust design suitable for demanding environments
