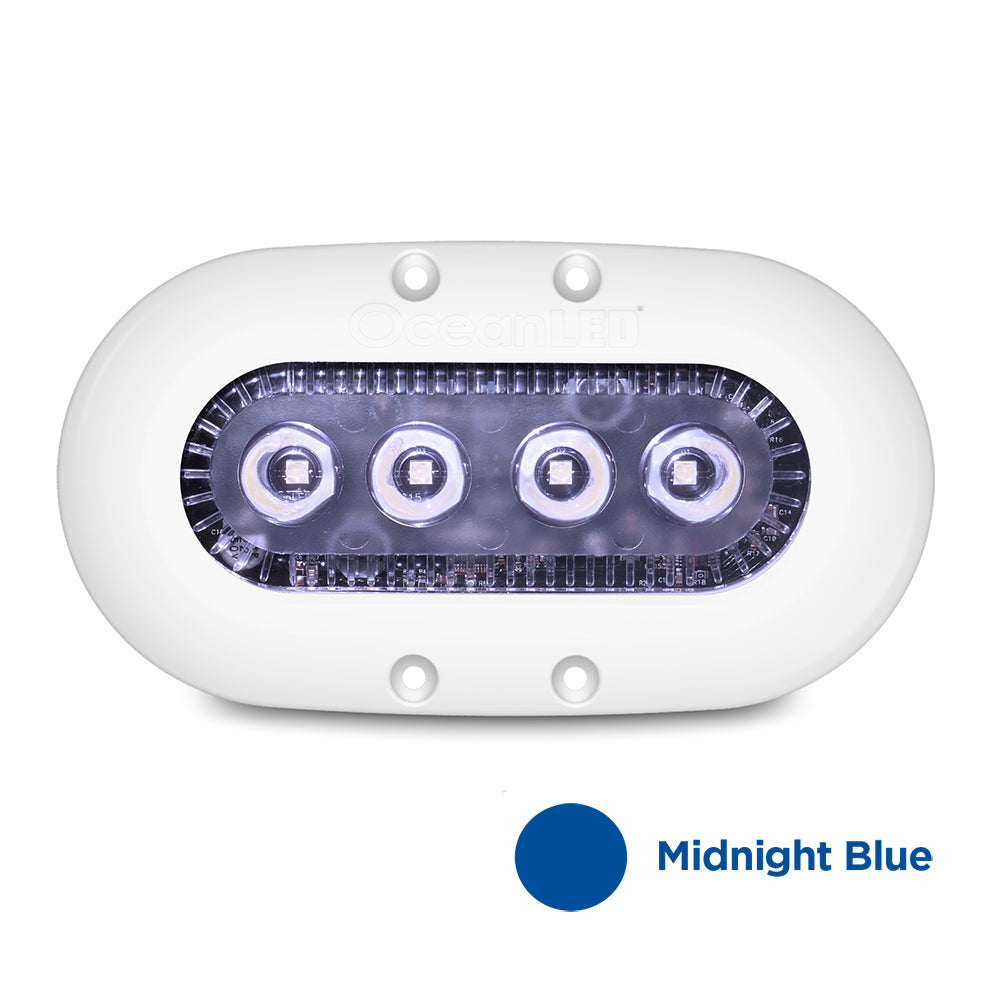

OceanLED X-Series X4 Midnight Blue LED Underwater Light - Bright 1150 Lumens, Fish-Strobe Mode

X-Series X4 - Midnight Blue LEDs

The OceanLED X-Series X4 combines brightness with affordability. Whether cruising or fishing, the X4 gives stunning performance allowing you to enjoy more time on the water with family and friends.

The X4 outputs an impressive 1,150 Fixture lumens from its low profile design and utilizes focused optics to produce a 60 circular beam from each LED providing great water penetration, illuminating a large area. Choose Midnight Blue or Ultra White color options. one app, your choice is virtually limitless.

Looking to catch more fish Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.

The low profile, simple design is easy to install even for the weekend DIYer. A small 12.5mm hole is all that's needed to run the cable through the hull. Fix 4 screws and that's the hard work done! Simply attach to 12V and you are ready to light up your world.

Maintenance is virtually zero. Simply wipe the lens with a cloth to remove any marine growth thanks to the special Tritonium coating.

Features:

1,450 Lumens / 1,150 Fixture Lumens:

Outstanding performance from this small, bright light makes it the obvious choice for those who want tostand out from the crowd.

60 Beam Angle

A wide-angled, focused beam lights up a large area of the water.

Compact and simple design

Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light. Installation needs only a small, 12mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.

Easy to Clean

Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours ofscrubbing each time you use it.

Fish-Strobe Mode

Exceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait.

Mounting Recommendations

• Boat size: up to 30' (9M)
• Transom / Hull spacing: 2-3' (0.5-1.0M)
• Transom quantity: 2-4
• Hull quantity: 4-8" (10-20cm)
• Maximum hull thickness: N/A
• Installation depth (to top of fixture): 300mm below water line
• In water fitting: No

Technical

• Light output equivalent to: 150W metal halide
• Fixture Lumens* (total light output from a finished fixture): 1,150
• Lumens: 1,450
• Beam angle: 60 circular
• Typical LED life expectancy: 40,000 hours
• Minimum-Maximum operating voltage DC: 9 - 32 V DC
• Minimum-Maximum operating voltage AC (AC/optional) Current / Amp draw (DC): 0.8A @ 12V DC - 0.4A @ 24V DC
• Approx. light penetration (avg. water quality): 20' (6M)
• Approx. Light penetration (perfect water quality): 45' (13+M)
• Driver type: Internal
• Driver size (L x W x H): N/A
• Color options: Ultra White - Midnight Blue
• Correlated Color Temp: 6500 K - 450 nm
• IP Rating: IP68
• Fish strobe: YES
• Anti fouling properties: Tritonium coated lens
• LED Manufacturer: CREE

Physical

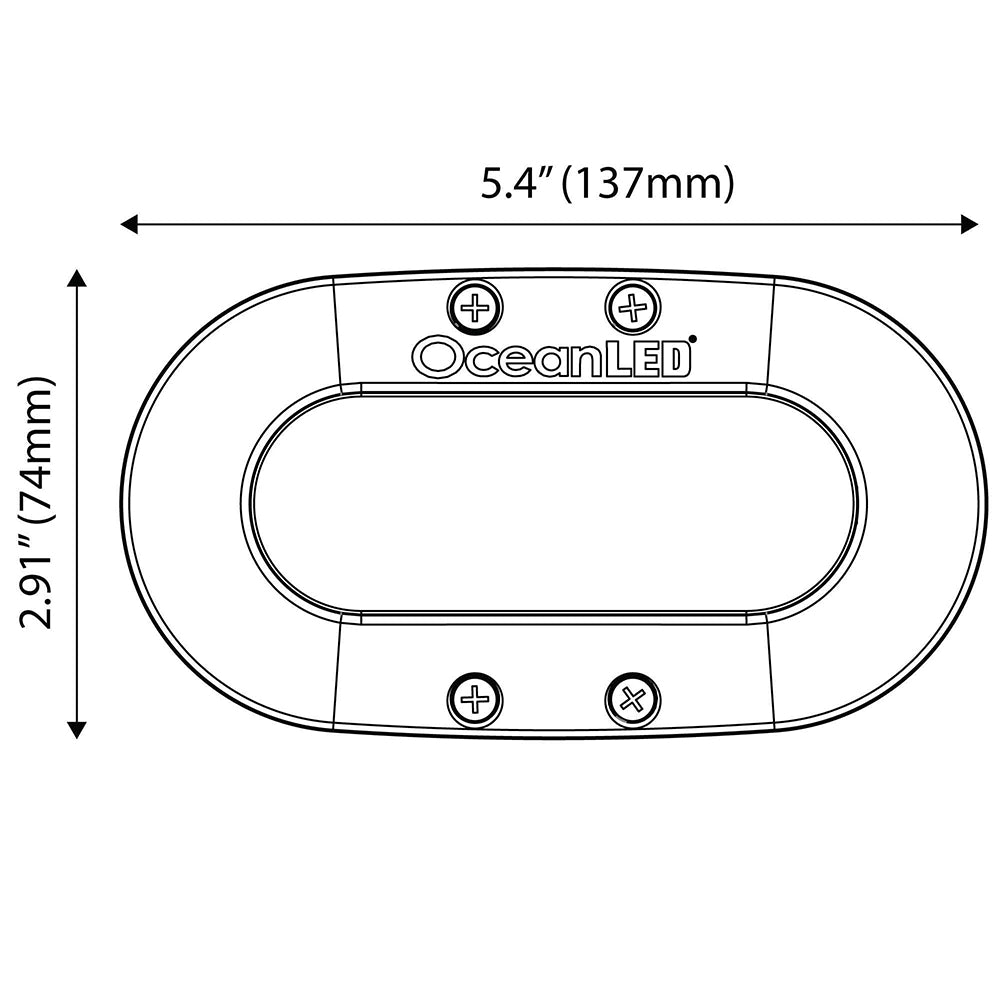

• Size: 5.4" (137mm) x 2.91" (74mm)

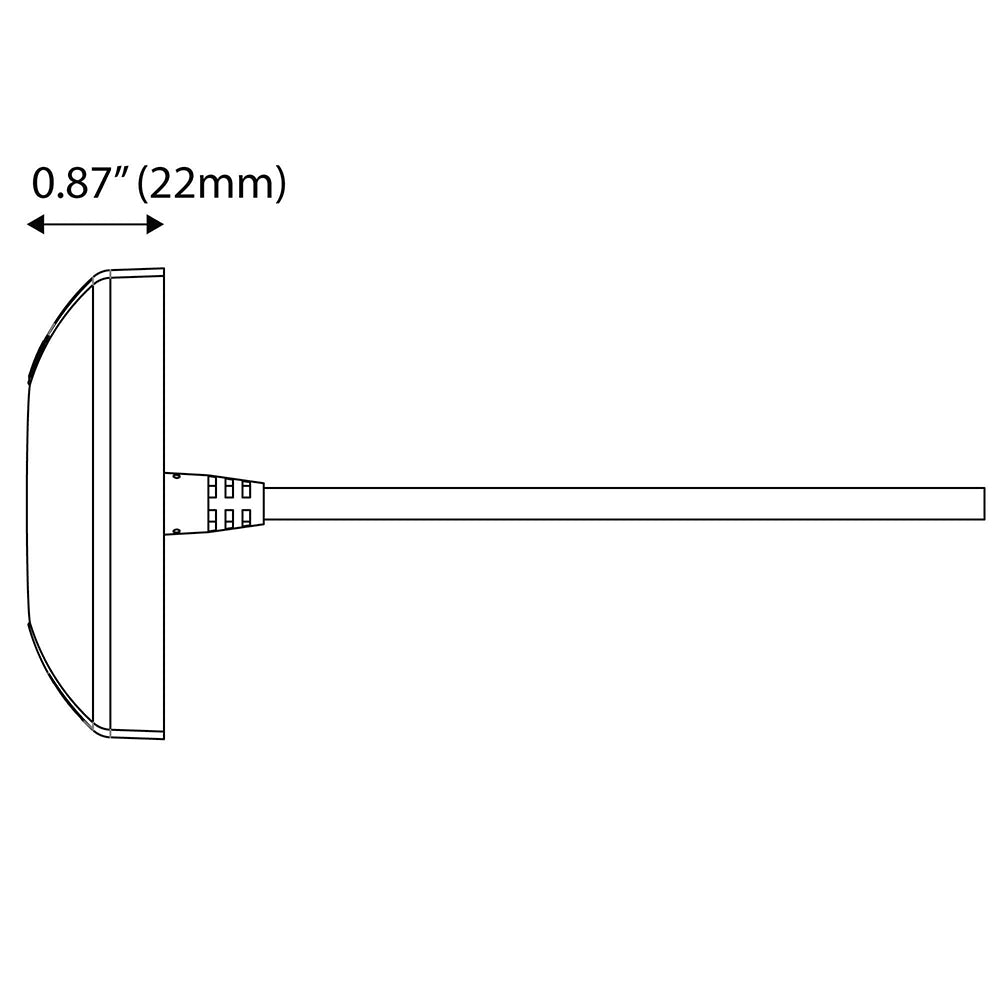

• Depth: 0.86" (22mm)
• Total weight including electrical driver: 0.70kg
• Extension cable length (standard-hard wired to light): 9-7/64' (3M)
• Hole cut-out for cable entry: 1/2" (12.5mm)
• Material: AB2
• Lens material: Pilkington Optiwhite
• Body construction: Chemically resistant optical polymer
• Bezel material: Plastic
• Bezel thickness: N/A
• Bezel options: Stainless Steel Bezel Optional
• Bezel color: White
• Drag factor: N/A
• Optics: Collimator
• No of LEDs: 4
• Certification: EMC Approved
• CE Approved: Yes

Specifications:

• Warranty: 2 years

The OceanLED X-Series X4 combines high-performance lighting with user-friendly installation, making it an excellent choice for boat owners seeking reliable underwater illumination. With a compact design, the X4 delivers an impressive 1,150 fixture lumens, providing powerful water penetration and illuminating large areas with a broad 60-degree beam angle. Crafted from chemically resistant materials and featuring a Tritonium-coated lens, this light offers low maintenance and durability in marine environments. Its focus optics and high-quality CREE LEDs ensure long-lasting performance and vibrant illumination, whether for cruising or fishing activities.
Designed for ease of installation, the X4 requires only a small 12.5mm hole in the hull, with minimal wiring and three screws to secure it. Its internal driver and simple mounting process make it accessible even for DIY enthusiasts. The light's IP68 rating guarantees protection against water ingress, while the built-in Fish-Strobe mode emits randomized flashing patterns proven to attract bait fish, increasing your chances of a successful catch. The dual color options, Midnight Blue and Ultra White, allow customization to match your boat's aesthetics or lighting preferences.
Operationally, the X4 supports voltage ranges from 9 to 32 volts DC, making it compatible with most marine power systems. It offers approximately 20 feet of water penetration in typical conditions and up to 45 feet in optimal, clear water. The fixture is designed for boats up to 30 feet, with recommended mounting spacing for transom or hull installations. Its robust construction includes an AB2 body, Pilkington Optiwhite lens, and optional stainless steel bezel for added durability and style.
With a lifespan of around 40,000 hours, the OceanLED X-Series X4 ensures long-term service, backed by a two-year warranty. Its low profile, lightweight design, and anti-fouling coating make it an ideal underwater lighting solution for enhancing both safety and aesthetics on your vessel, whether you're fishing, cruising, or simply enjoying the water at night.

Features:

• Impressive 1,150 fixture lumens for bright underwater illumination

• 60-degree beam angle provides wide water coverage

• Compact, low-profile design for easy installation with only a 12.5mm hole required

• Constructed from chemically resistant optical polymer with Tritonium coating for low maintenance

• Fish-Strobe mode emits randomized flashes proven to attract bait fish

• Supports 9-32V DC power input, compatible with most marine electrical systems

• IP68 rated for maximum water and dust resistance

• Long-lasting CREE LEDs with an estimated 40,000-hour lifespan

• Dual color options: Midnight Blue and Ultra White to suit preferences

• Simple mounting with three screws and optional stainless steel bezel
