OceanLED X-Series X8 Midnight Blue LED Light - High Performance Marine Underwater Lighting

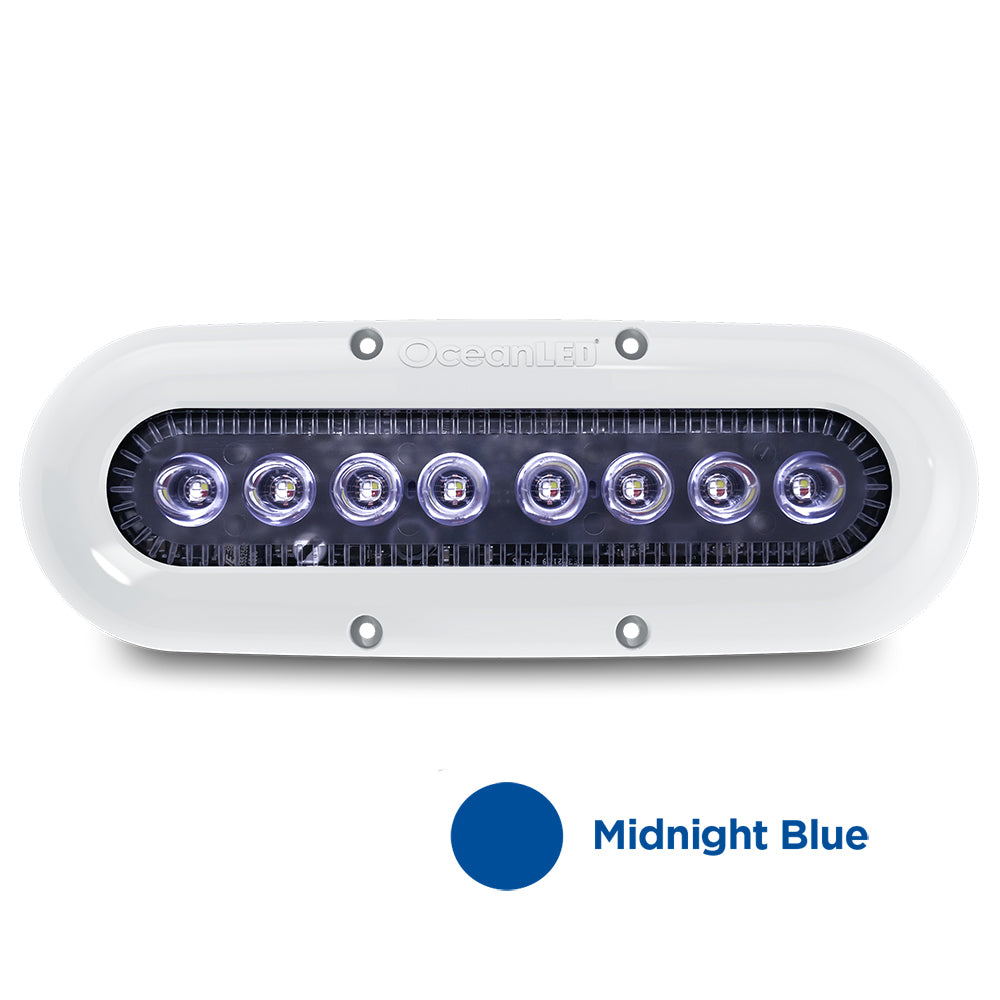

X-Series X8 - Midnight Blue LEDs

The X8 packs a mighty 2,300 Fixture Lumens into its low profile design and utilizes focused optics to produce a 60x circular beam from each LED providing great water penetration, illuminating a large area.

Choose either a single color version from either Midnight Blue or Ultra White or pick our Colours option where you can select any color you want from the RGBW spectrum. You can toggle between the colors or with our DMX controller and smartphone app, your choice is virtually limitless.

Looking to catch more fish Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.

The low profile, simple design is easy to install even for the weekend DIYer. A small 12.5mm hole is all that's needed to run the cable through the hull. Fix 4 screws and that's the hard work done! Simply attach to 12V and you are ready to light up your world.

Maintenance is virtually zero. Simply wipe the lens with a cloth to remove any marine growth thanks to the special Tritonium coating.

Features:

2,900 Lumens / 2,300 Fixture Lumens:

Outstanding performance from this small, bright light makes it the obvious choice for those who want tostand out from the crowd.

60 Beam Angle

A wide-angled, focused beam lights up a large area of the water.

Compact and simple design

Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light. Installation needs only a small, 12.5mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.

Easy to Clean

Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours ofscrubbing each time you use it.

Fish-Strobe Mode

Exceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait.

Mounting Recommendations

• Boat size: up to 50' (15M)
• Transom / Hull spacing: 2-4' (0.5-1.2M)
• Transom quantity: 2-6
• Hull quantity: 4-8" (10-20cm)
• Maximum hull thickness: N/A
• Installation depth (to top of fixture): 300mm below water line
• In water fitting: No

Technical

• Light output equivalent to: 50W Xenon
• Fixture Lumens* (total light output from a finished fixture): 2,300
• Lumens: 2,900
• Beam angle: 60 circular
• Typical LED life expectancy: 40,000 hours
• Minimum-Maximum operating voltage DC: 9 - 32 V DC
• Minimum-Maximum operating voltage AC (AC/optional) Current / Amp draw (DC): 1.65A @ 12V DC - 0.75A @ 24V DC
• Approx. light penetration (avg. water quality): 26' (8M)
• Approx. Light penetration (perfect water quality): 72' (21+M)
• Driver type: Internal
• Driver size (L x W x H): N/A
• Color options: Ultra White - Midnight Blue or Colors
• Correlated Color Temp: 6500 K - 450 nm
• IP Rating: IP68
• Fish strobe: YES
• Anti fouling properties: Tritonium coated lens
• LED Manufacturer: CREE

Physical

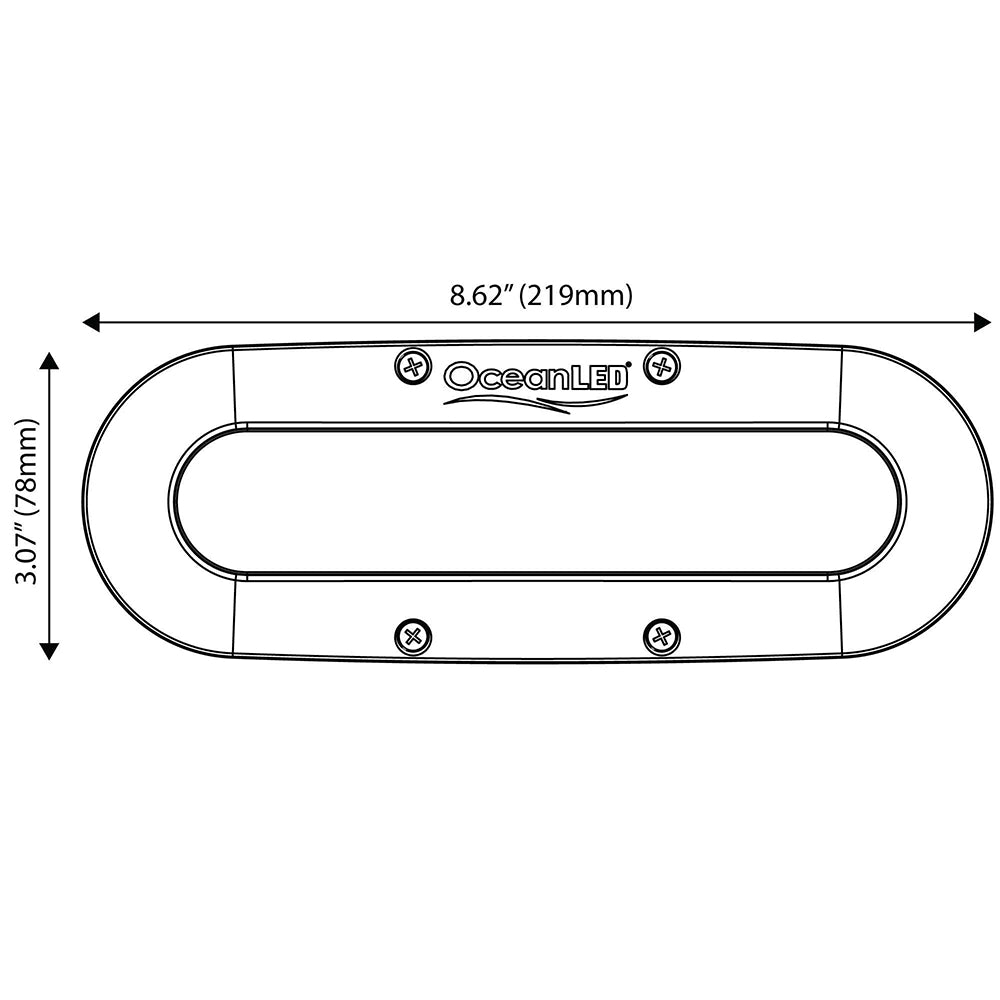

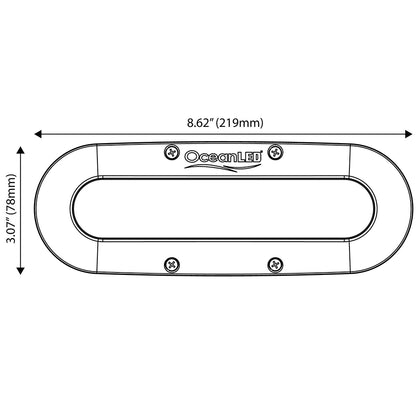

• Size: 8.62" (219mm) x 3.07" (78mm)

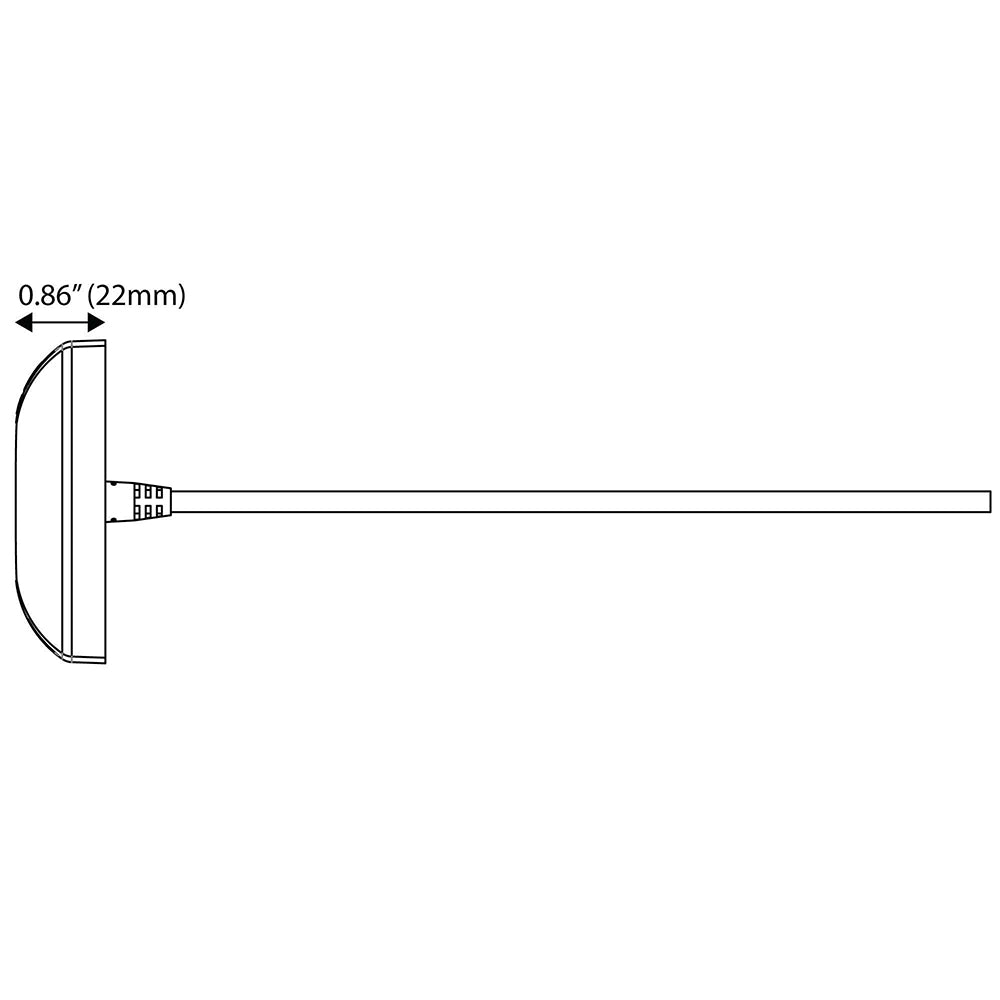

• Depth: 0.86" (22mm)
• Total weight including electrical driver: 0.34kg
• Extension cable length (standard-hard wired to light): 9-7/64' (3M)
• Hole cut-out for cable entry: 1/2" (12.5mm)
• Material: Chemically Resistant Optical Polymer
• Lens material: Pilkington Optiwhite
• Body construction: Machined (First Release)
• Bezel material: Plastic
• Bezel thickness: N/A
• Bezel options: Stainless Steel Bezel Optional
• Bezel color: White
• Drag factor: N/A
• Optics: Collimator
• No of LEDs: 8
• Certification: EMC Approved
• CE Approved: Yes

Specifications:

• Warranty: 2 years

The OceanLED X-Series X8 with Midnight Blue LEDs offers a compact yet powerful solution for marine lighting applications. This underwater light delivers an impressive 2,300 fixture lumens and features a focused 60-degree circular beam, providing excellent water penetration and illuminating large areas of underwater scenery. Its low-profile design simplifies installation, requiring only a small 12.5mm hole in the hull, making it ideal for DIY boat owners and professionals alike. The X8's durable construction, made from chemically resistant optical polymer with a Pilkington Optiwhite lens, ensures longevity and ease of maintenance, thanks to its Tritonium coating that prevents marine growth buildup. This coating allows for quick cleaning simply by wiping the lens, saving time and effort during routine maintenance.Designed with versatility in mind, the X8 offers multiple color options, including a single Midnight Blue or Ultra White LED, along with a customizable RGBW spectrum. Users can toggle colors manually or control them remotely via DMX controllers and smartphone apps, enabling virtually limitless lighting configurations. The Fish-Strobe mode, an exceptionally bright and randomized strobing feature, is proven to attract bait fish, increasing the chances of a successful catch. The light's internal driver and straightforward mounting process—requiring just three screws—make setup quick and hassle-free. Suitable for boats up to 50 feet, the X8 can be mounted on transoms or hulls with spacing recommendations of 2-4 feet, ensuring optimal performance across various vessel sizes.With a typical LED lifespan of approximately 40,000 hours, the OceanLED X8 is built to provide reliable performance over many seasons. It features an IP68 rating, making it fully waterproof and resistant to harsh marine environments. The light's optical collimator optics enhance its beam focus, while the 60-degree beam angle covers a wide area, ideal for underwater illumination, fishing, and night-time boating. Operating efficiently within a voltage range of 9 to 32 volts DC, the X8 consumes minimal power—just 1.65 amps at 12 volts—making it suitable for various electrical systems. Its sleek physical design measures approximately 8.62 inches in length and 3.07 inches in width, with a depth of just 0.86 inches, ensuring it fits comfortably on a variety of vessels.Backed by a 2-year warranty, the OceanLED X-Series X8 is a high-quality, versatile, and durable underwater lighting solution designed to enhance your marine experience. Whether you need bright illumination for fishing, night navigation, or simply to add a stylish glow to your vessel, this light provides excellent performance, easy installation, and minimal maintenance in a compact form factor.

Features:

• 2,300 fixture lumens and 2,900 total lumens for outstanding brightness

• 60-degree beam angle for wide water coverage

• Compact design requiring only a 12.5mm hull hole for installation

• Made from chemically resistant optical polymer with Pilkington Optiwhite lens

• Tritonium coating for easy cleaning and anti-fouling protection

• Multiple color options, including RGBW spectrum for customizable lighting

• Fish-Strobe mode with randomized strobing pattern to attract bait fish

• Internal driver with simple mounting process using three screws

• Suitable for boats up to 50 feet with recommended mounting spacing

• IP68 waterproof rating and 40,000 hours LED lifespan

• Efficient operation at 9-32V DC, consuming minimal power

• Sleek dimensions and lightweight construction for versatile mounting

• CE and EMC approved for safety and compliance
