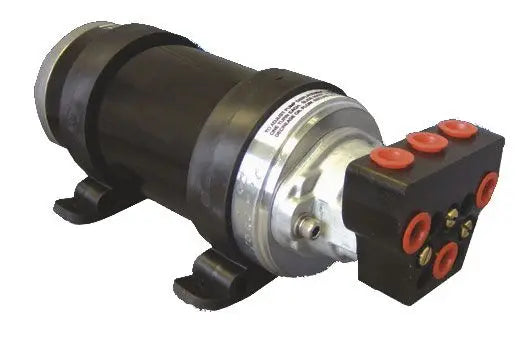

Octopus 1200cc/min Reversing Piston Pump 12Vdc
Octpus 1200cc/min Reversing
Piston Pump 12Vdc
Model: AF1212
The unique Octopus piston pump delivers over twice the hydraulic output per watt of input than a standard hydraulic gear pump.
Gear pumps leak oil between the gears, while a piston (such as used in car engines) does not. This means the piston pump will place the cylinder ram exactly where it is required, positioning the rudder accurately. This gives far sharper steering, reducingunnecessary course corrections meaning battery consumption on Octopus pumps is up to half that of other pumps.
Leading autopilot manufacturers choose Octopus pumps for their non RFB pilot systems which do not have a Rudder Feedback unit. Previously, slop in the system caused by gear leakage meant that a Rudder Feedback unit was necessary to tell the pilot the exact rudder position. As Octopus pumps will always bring the ram back to the required position the Rudder Feedback unit is not required, which also greatly simplifies installation.
A professional installation should always have a method of isolating the pump from the steering system - Octopus pumps feature inbuilt shut off valves in the pump manifold.
A pump that does not have variable flow (unless dedicated to a range of cylinders such as our fixed 0.8L pump) will be operating too fast or too slow in 90% of cases. Autopilot manufacturers get around this problem by adjusting the output to the pump to compensate, which either forces the pump to operate for longer periods of time which increases power consumption and wear on the parts, or it will operate at high pressure for short periods of time - also putting unnecessary strain and wear on the system.
Octopus Variable Flow Reversing Pumps precisely control the speed of the ram, reducing unnecessary battery consumption, pressure, strain and wear on the hydraulic system.
The Octopus 1200cc/min reversing piston pump 12Vdc features a compact and robust design tailored for consistent fluid transfer. Its compact size allows integration into various applications without occupying excessive space. Despite its small footprint, this pump delivers a high flow rate of 1200cc per minute, ensuring efficient and smooth operations. The 12Vdc power supply makes it compatible with standard electrical systems, offering reliability and ease of use. Ideal for marine, automotive, and industrial uses, the Octopus pump provides a perfect balance of power and precision.
Equipped with a reversing piston mechanism, the Octopus pump offers bidirectional fluid flow, enhancing operational flexibility. This functionality allows users to effortlessly switch the pump’s flow direction, making it highly adaptable for applications requiring fluid transfer in multiple directions. The reversing feature helps in system flushing, preventing clogging and extending the pump’s lifespan. It is designed with durable materials that withstand frequent direction changes while maintaining performance consistency, making it an excellent choice for diverse fluid handling needs.
The Octopus 1200cc/min reversing piston pump 12Vdc is built from high-quality materials to ensure long-lasting performance even in demanding environments. Its sturdy construction resists wear and corrosion, minimizing downtime and maintenance costs. The pump’s design allows easy access to internal components for routine maintenance, reducing service time. Additionally, its reliable sealing system prevents leaks and maintains steady pressure during operation. Combined with its efficient power usage, the Octopus pump represents a cost-effective solution for businesses seeking reliable fluid management equipment.
