SKU:75683

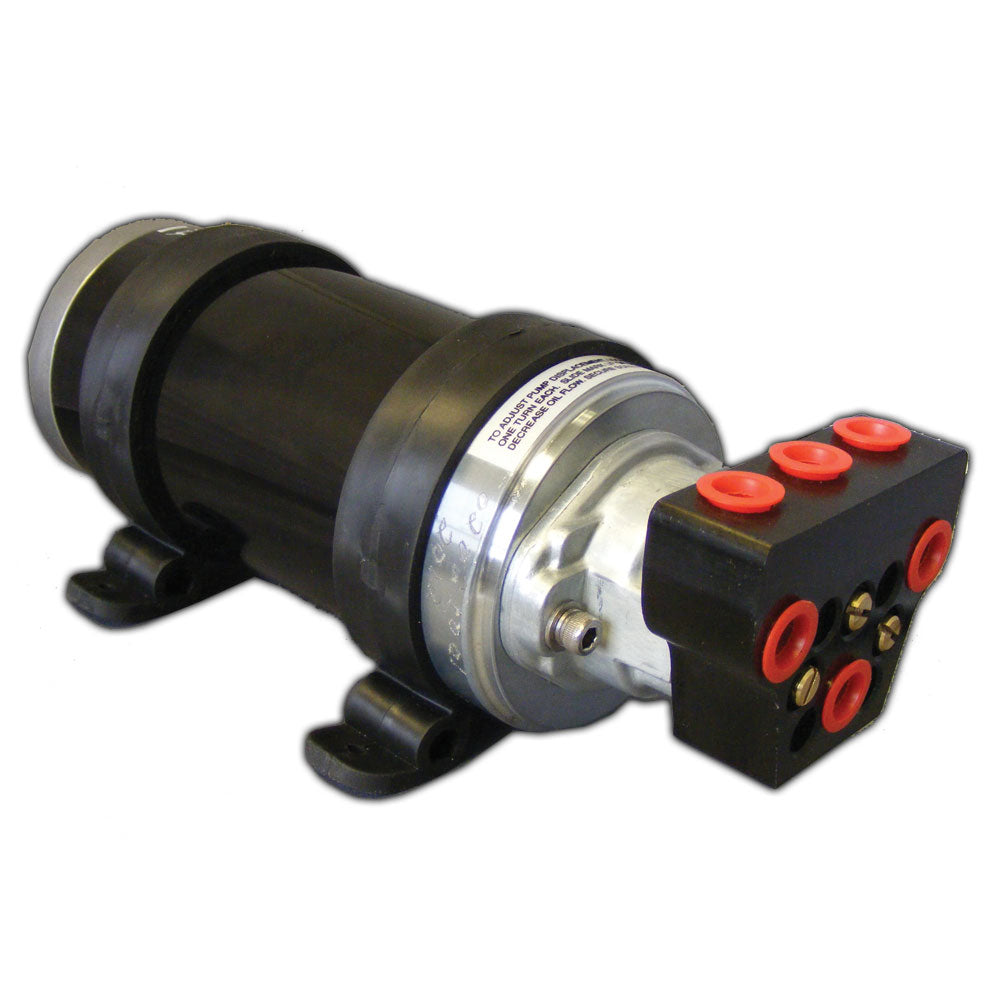

Autopilot Pump Type 1 Adjustable Reversing 12V Up To 15 CI Cylinder
TWICE THE POWER
The unique Octopus piston pump delivers over twice the hydraulic output per watt of input than a standard hydraulic gear pump.
HALF THE POWER CONSUMPTION
Gear pumps leak oil between the gears, while a piston (such as used in car engines) does not. This means the piston pump will place the cylinder ram exactly where it is required, positioning the rudder accurately. This gives far sharper steering, reducingunnecessary course corrections meaning battery consumption on Octopus pumps is up to half that of other pumps.
PINPOINT ACCURACY
Leading autopilot manufacturers choose Octopus pumps for their non RFB pilot systems which do not have a Rudder Feedback unit. Previously, slop in the system caused by gear leakage meant that a Rudder Feedback unit was necessary to tell the pilot the exact rudder position. As Octopus pumps will always bring the ram back to the required position the Rudder Feedback unit is not required, which also greatly simplifies installation.
SAVE ON INSTALLATION COSTS
A professional installation should always have a method of isolating the pump from the steering system - Octopus pumps feature inbuilt shut off valves in the pump manifold.
ADJUSTABLE FLOW RATE
A pump that does not have variable flow (unless dedicated to a range of cylinders such as our fixed 0.8L pump) will be operating too fast or too slow in 90% of cases. Autopilot manufacturers get around this problem by adjusting the output to the pump to compensate, which either forces the pump to operate for longer periods of time which increases power consumption and wear on the parts, or it will operate at high pressure for short periods of time - also putting unnecessary strain and wear on the system.
Octopus Variable Flow Reversing Pumps precisely control the speed of the ram, reducing unnecessary battery consumption, pressure, strain and wear on the hydraulic system.
Getting the best steering performance for the boat. The flow rate of the pump can be set to get the best hard over time (cylinder ram speed) for the particular boat.
Features:
The Octopus Autopilot Pump Type 1 is a high-performance hydraulic solution designed for precise steering control on boats. Featuring piston pump technology with only three moving parts, it delivers reliable and consistent operation. This pump provides over twice the hydraulic output per watt of input compared to traditional gear pumps, making it an efficient choice for demanding marine applications. Its advanced design ensures that the cylinder ram is positioned accurately, reducing unnecessary course corrections and optimizing power consumption. This results in up to 50% less battery usage, extending the operational time of your vessel. The pump's precise control over flow rate allows users to tailor performance to their specific boat, ensuring optimal steering responsiveness and smooth handling. With built-in shut-off valves integrated into the manifold, installation and servicing are straightforward, saving time and reducing costs. The adjustable flow feature helps prevent system strain and wear by regulating ram speed, improving overall reliability and longevity. Ideal for systems without a Rudder Feedback unit, the Octopus pump consistently returns the ram to the required position, simplifying setup and reducing system complexity. Whether upgrading an existing autopilot or installing a new system, this pump offers a combination of power, efficiency, and ease of use, making it a dependable choice for marine autopilot applications.
