SKU:75685

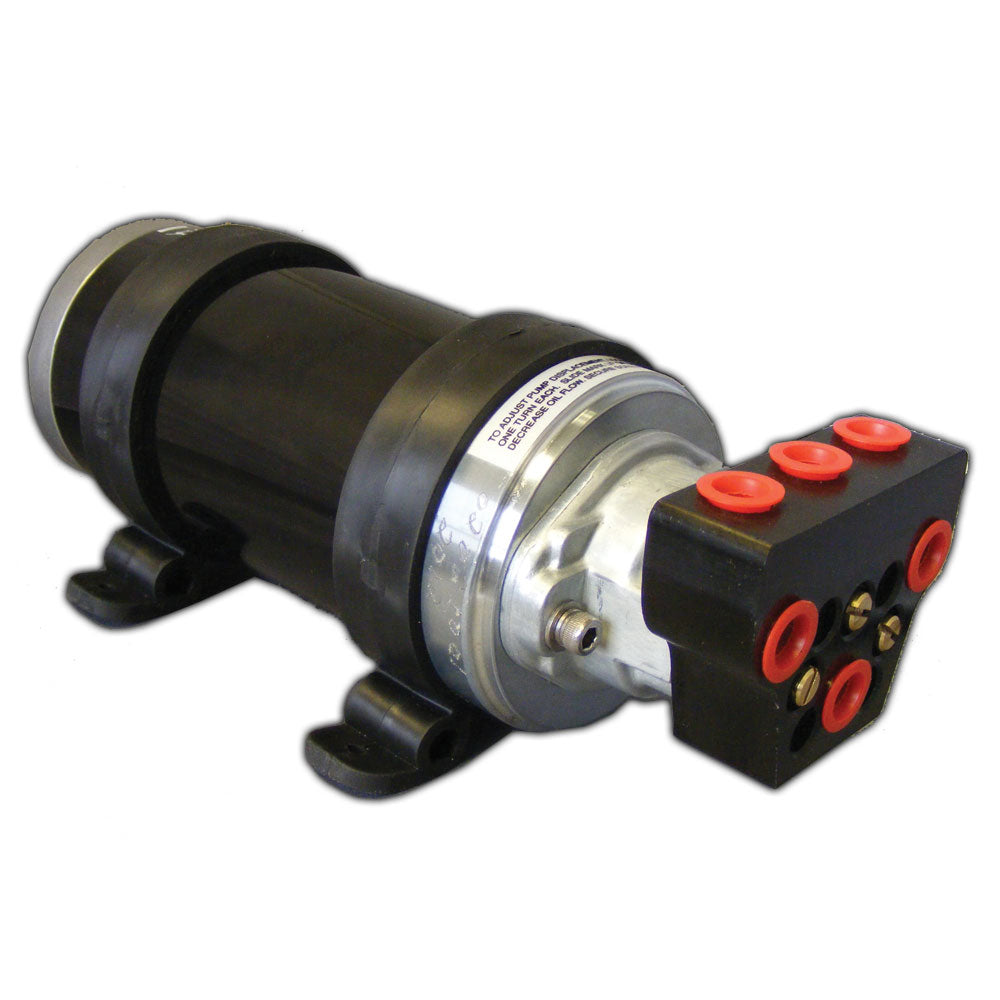

Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI Cylinder
Now with ORB Port Connection manifold
Reversing pumps are used when hydraulic steering is fitted on boats up to 65 feet L.O.A. (depending on rudder torque). The pumps are switched on by the automatic pilot and make a steering correction to left or right determined by the direction of rotation of the pump motor. The motors are of the permanent magnetic type and reversing direction is accomplished by reversing the motor input current.
The pump has only three moving parts and requires no complicated check valves to prevent rudder movement when de-energized. Output flow is completely adjustable to 50% of rated flow allowing the pump output to be adjusted precisely to the volume of steering cylinder fitted. The pump is exceptionally reliable and delivers more than twice the hydraulic output per watt of input than gear pumps manufactured by competitors.
Motors are heavy duty, a full 85mm in diameter with long brushes and sealed ball bearings for long service life. The molded rubber mounting foot can be rotated to allow the pump to be mounted on any surface.
A useful range of accessories can be used to enhance the pump by incorporating added valves and solid state FET switching. The valves mount directly to the pump body. The FET switch mounts adjacent to the pump. No other autopilot pump made offers such advantages.
Benefits of the Octopus Reversing Pumps
Piston pump technology giving higher efficiency and accuracy Fewer moving parts giving increased reliability Variable flow rate to make sure the pump is matched as accurately as possible to the manual steering system Professional cut off valves for simple servicing.
Features:
The Octopus Autopilot Pump Type 2 is a versatile and reliable hydraulic reversing pump designed for boats up to 65 feet in length, depending on rudder torque. Equipped with an ORB port connection manifold, this pump offers easy installation and secure connections. Its primary function is to facilitate hydraulic steering by automatically adjusting the rudder position via the autopilot system, making it an essential component for marine navigation. The pump's design features only three moving parts, eliminating the need for complex check valves and reducing maintenance requirements. The output flow is fully adjustable from 600cc to 1.2 liters per minute, allowing precise matching to your steering cylinder size, which ranges from 11 to 22 cubic inches. This adaptability ensures optimal steering response and efficiency. The motor is a heavy-duty, permanent magnetic type with a diameter of 85mm, long-lasting brushes, and sealed ball bearings, ensuring long service life even under demanding conditions. Reversing the motor's direction is achieved by reversing the input current, enabling smooth left or right steering corrections. The molded rubber mounting foot can be rotated, providing flexible installation options on various surfaces. Designed for efficiency, the pump delivers more than twice the hydraulic output per watt compared to gear pumps from competitors, maximizing power usage. A variety of accessories, including valves and solid-state FET switches, can be integrated to enhance functionality. These accessories mount directly to the pump body or adjacent to it, offering advanced control options such as solid-state switching and additional valve integration. This pump's piston pump technology ensures high efficiency and accuracy, making it a professional-grade solution for hydraulic steering systems. The pump operates on a 12-volt DC power supply, with an average current draw of 4 to 6 amps and a maximum of 19 amps, suitable for most marine electrical systems. With a compact design, lightweight build, and durable construction, the Octopus Autopilot Pump Type 2 provides a dependable and precise steering solution for modern marine vessels.
