SKU:75686

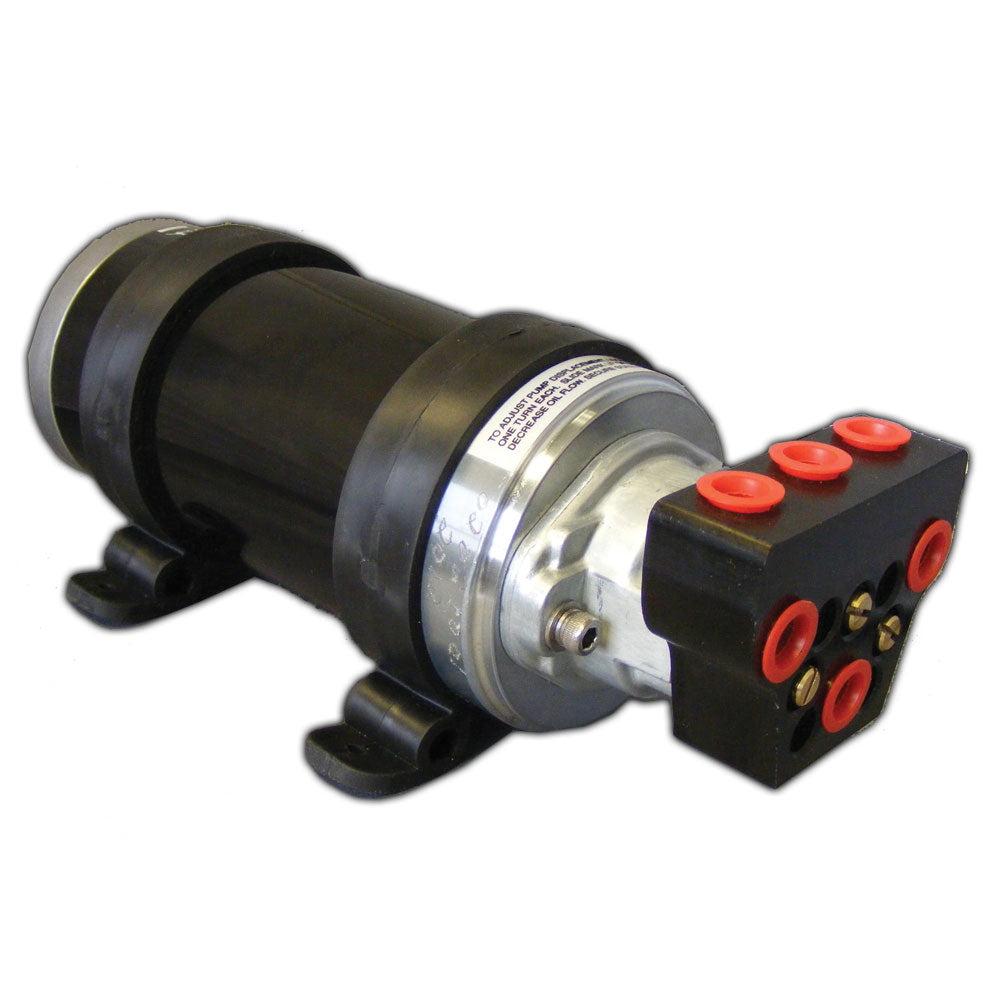

Autopilot Pump Type 3 Adjustable Reversing 12V Up to 30CI Cylinder
Features:
TWICE THE POWER
The unique Octopus piston pump delivers over twice the hydraulic output per watt of input than a standard hydraulic gear pump.
HALF THE POWER CONSUMPTION
Gear pumps leak oil between the gears, while a piston (such as used in car engines) does not. This means the piston pump will place the cylinder ram exactly where it is required, positioning the rudder accurately. This gives far sharper steering, reducingunnecessary course corrections meaning battery consumption on Octopus pumps is up to half that of other pumps.
PINPOINT ACCURACY
Leading autopilot manufacturers choose Octopus pumps for their non RFB pilot systems which do not have a Rudder Feedback unit. Previously, slop in the system caused by gear leakage meant that a Rudder Feedback unit was necessary to tell the pilot the exact rudder position. As Octopus pumps will always bring the ram back to the required position the Rudder Feedback unit is not required, which also greatly simplifies installation.
SAVE ONINSTALLATIONCOSTS
A professional installation should always have a method of isolating the pump from the steering system - Octopus pumps feature inbuilt shut off valves in the pump manifold.
ADJUSTABLE FLOW RATE
A pump that does not have variable flow (unless dedicated to a range of cylinders such as our fixed 0.8L pump) will be operating too fast or too slow in 90% of cases. Autopilot manufacturers get around this problem by adjusting the output to the pump to compensate, which either forces the pump to operate for longer periods of time which increases power consumption and wear on the parts, or it will operate at high pressure for short periods of time - also putting unnecessary strain and wear on the system.
Octopus Variable Flow Reversing Pumps precisely control the speed of the ram, reducing unnecessary battery consumption, pressure, strain and wear on the hydraulic system.
The Octopus Autopilot Pump Type 3 offers reliable hydraulic control with advanced piston pump technology, designed for vessels requiring precise steering. Featuring a compact design, this pump is suitable for systems up to 30 cubic inches and provides a robust solution for autopilot applications. Its construction with only three moving parts ensures durability and ease of maintenance while delivering consistent performance in demanding marine environments. The pump's 12-volt operation makes it compatible with standard boat electrical systems, providing a seamless upgrade for existing or new autopilot configurations.
The Octopus pump is engineered to deliver over twice the hydraulic output per watt compared to traditional gear pumps, resulting in faster, more responsive steering. Its efficient design reduces power consumption by approximately 50%, thanks to piston technology that minimizes oil leakage and accurately positions the rudder. This efficiency translates into longer battery life and less strain on the vessel's electrical system, making it ideal for extended voyages or boats with limited power resources.
Its pinpoint accuracy eliminates the need for a Rudder Feedback unit, simplifying installation and reducing system complexity. The pump's inbuilt shut-off valves facilitate easy servicing and removal without draining the entire steering system, minimizing downtime and maintenance costs. The adjustable flow rate feature allows customization of hydraulic performance, ensuring optimal response times for various vessel sizes and steering requirements. This flexibility helps prevent over- or under-speeding the rudder, enhancing overall handling and safety.
The Octopus Autopilot Pump Type 3 is a professional-grade component designed for reliable, efficient, and easy integration into marine autopilot systems. Its balanced combination of power, precision, and serviceability makes it a preferred choice among marine automation experts seeking improved vessel control and reduced operational costs.
Features:
