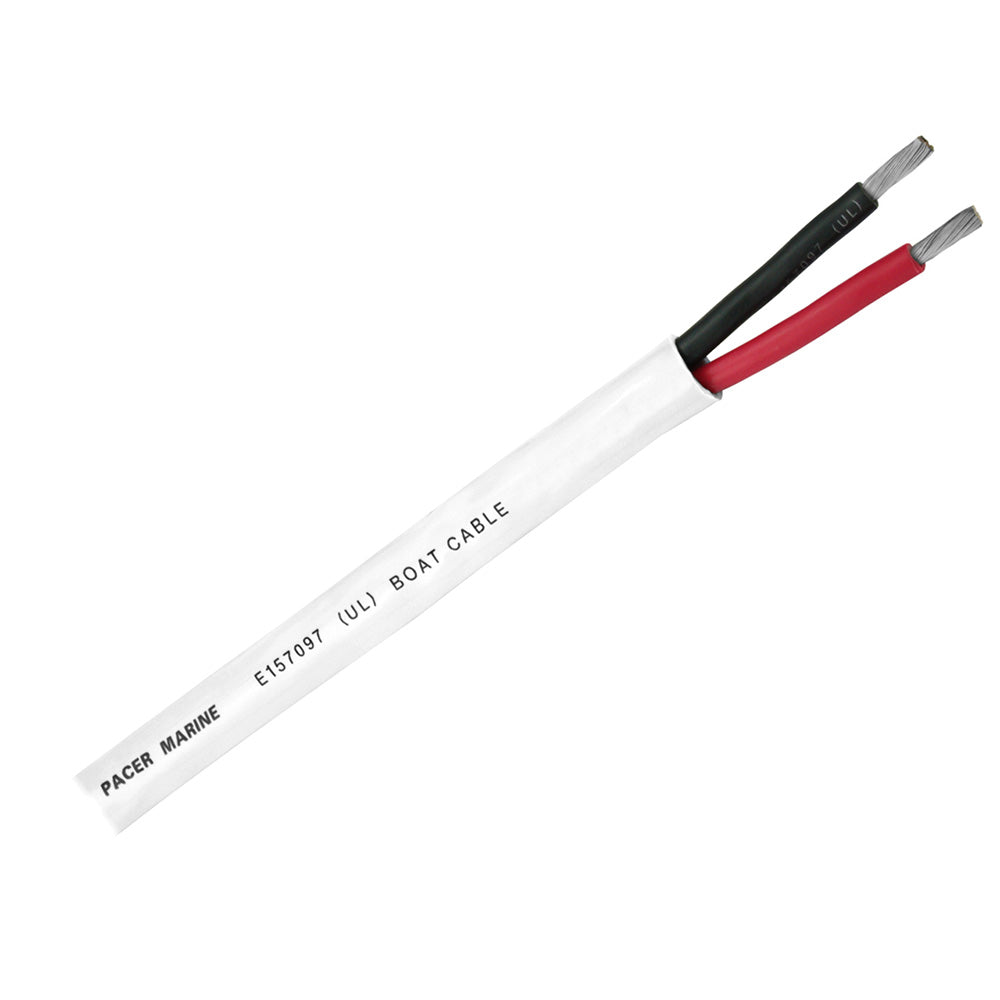

Pacer 14/2 AWG Round Duplex Boat Cable - 100 ft with Tinned Copper Conductors

Round Duplex 2 Conductor Cable - 100 - 14/2 AWG - Round Cable - Red, Black

Duplex Boat Cable is a type of multiconductor cable that is used in low-voltage AC applications and DC circuits. Pacer manufactures 14 AWG Duplex boat cables in-house in Sarasota FL, USA for the highest quality. It starts with finely stranded, Type III tinned copper conductors. These allow for maximum flexibility and prevention of corrosion. The PVC jacket helps 14 AWG Duplex Boat Cable with flexibility while serving to prevent moisture from building up. How does it achieve this Well, the voids between wires are filled during the extrusion process. This leaves no room for moisture or air to build up. As an added bonus, a talcum powder coating is applied to the interior wires. This coating allows the outer jacket to be removed easily. Just another reason 14 AWG Duplex boat cable is perfect for marine usage.

Features:

• 14 AWG duplex boat cable
• 100 ft. of cable
• No. of Conductors: 2
• Stranded, tinned copper conductors
• Annealed Finely Stranded Tinned Copper ASTM B172 Class K
• Built for durability, flexibility, and longevity in the harshest marine environments
• So flexible that you can tie it into a knot without compromising any of its qualities
• Proprietary insulation ensures the highest level of protection available
• Ease of installation and the longevity of its design have helped solidify this boat cable as the choice of boating professionals

Specifications:

• Conductor Colors: Black Red
• Conductor Stranding: 41/0.0100
• Jacket Color: White
• Jacket Thickness (inch): 2 conductors @ 0.035
• Nom. Cable O.D.(inch): 2 conductors @ 0.225 x 0.370

Characteristics:

• Conductor: Annealed Fine Stranded Tinned Copper
• Insulation: -20 C to 105 C Flexible, Color Coded PVC
• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil
• Voltage Rating: 600 V
• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications:

• Two conductor boat cable is a durable product for use in DC circuits as well as low voltage AC applications

Compliances:

• UL Standard 1426
• RoHS Compliant
• ABYC: E-11.14
• Coast Guard: 33 CFR part 183
• UL compliant

The Pacer WR14/2DC-100 is a high-quality 14 AWG round duplex boat cable designed for reliable low-voltage AC and DC applications. Manufactured in Sarasota, FL, this cable features finely stranded, tinned copper conductors that provide maximum flexibility and resistance to corrosion. Its durable PVC jacket offers excellent flexibility while preventing moisture ingress, thanks to the extrusion process that fills voids between wires to eliminate air and moisture buildup. The internal wires are coated with a talcum powder layer, facilitating easy jacket removal for maintenance or repair. This design ensures the cable's suitability for marine environments where durability and corrosion resistance are critical. The cable's flexibility allows it to be tied into knots without losing integrity, making installation in tight or complex spaces straightforward. The proprietary insulation and construction adhere to strict industry standards, providing superior protection against acids, alkalis, abrasion, flame, gasoline, oil, and moisture. Rated for 600V and operating efficiently within a temperature range from -20°C to 105°C, this cable maintains performance in harsh conditions. It is UL 1426, RoHS, ABYC E-11.14, and Coast Guard compliant, underscoring its safety and suitability for marine use. Whether used for DC circuits or low-voltage AC systems on boats, this cable offers longevity, ease of installation, and dependable performance, making it a preferred choice among marine professionals and boat builders.

Features:

• 14 AWG duplex boat cable with durable PVC jacket

• 100 feet length for versatile installation

• No. of Conductors: 2, color-coded in black and red

• Stranded, tinned copper conductors for maximum flexibility and corrosion resistance

• Annealed Fine Stranded Tinned Copper ASTM B172 Class K for durability

• Built for harsh marine environments with high flexibility and longevity

• Ties into a knot without loss of properties due to exceptional flexibility

• Proprietary insulation ensures maximum protection against environmental factors

• Ease of installation with removable jacket and high durability
