SKU:104972

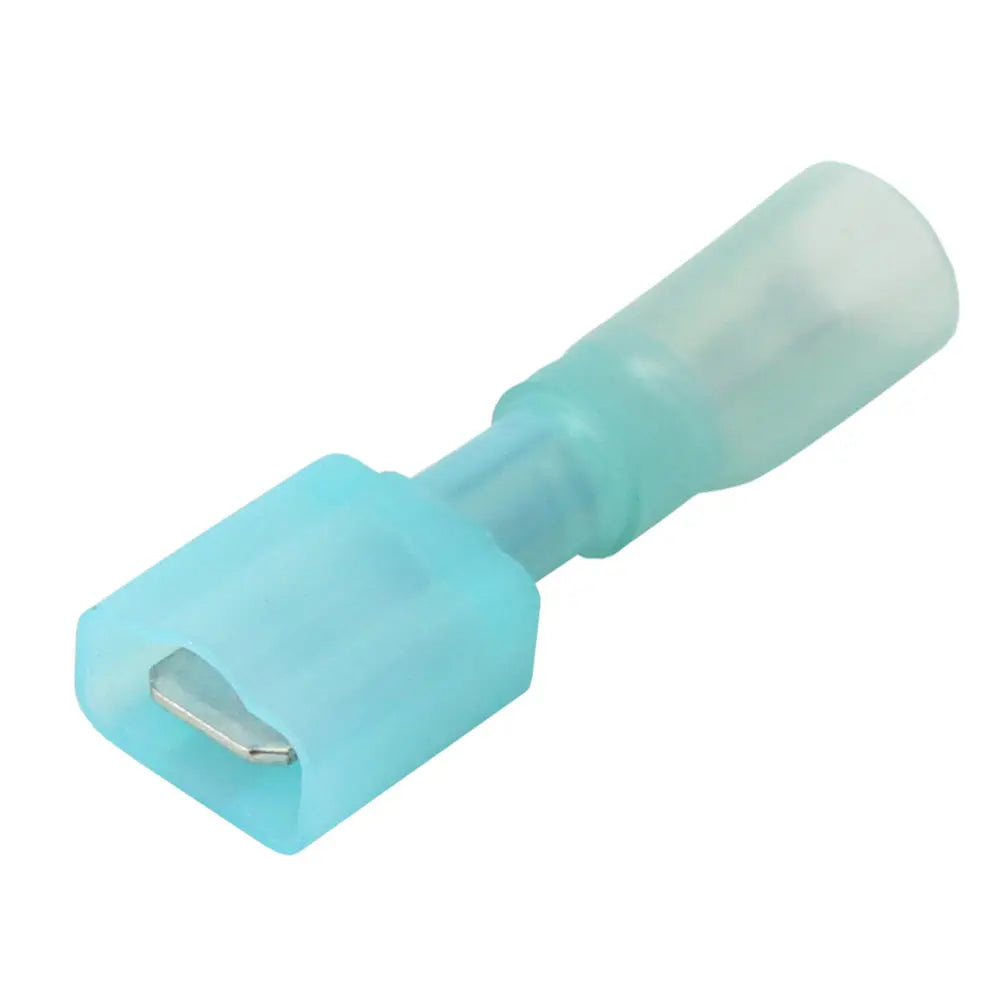

16-14 AWG Fully-Insulated Male Disconnect Terminal - Blue - 100 Pack
Creating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacers heat shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this These heat shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.
This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
Characteristics:
Specifications:
Compliances:
The Pacer TDE14-250FIM-100 is a high-quality, fully insulated male disconnect terminal designed for reliable electrical connections in demanding environments. These terminals are ideal for applications requiring secure connections with easy disconnection capabilities, offering both convenience and safety in maintenance and field servicing. Constructed with heat shrink technology, they feature a built-in heat-activated adhesive liner that provides a rugged, environmentally sealed connection, protecting against moisture, salt spray, oil, and corrosive substances. This robust protection ensures the terminals maintain optimal conductivity even in harsh conditions, reducing the risk of failures and ensuring long-term durability. The blue insulation color indicates compatibility with 16-14 AWG wire sizes, making selection straightforward for technicians and electricians. This size is commonly used in automotive, industrial, and marine wiring projects where reliable moisture and vibration resistance are critical. The heat shrink ratio of approximately 3:1 at 135°C ensures a snug fit over the wire and terminal, providing strain relief and mechanical strength. Operating effectively within a temperature range of -55°C to 125°C, these terminals maintain performance in extreme environments. They are rated for 600 volts and have a dielectric strength of 900 volts per mil, meeting rigorous safety standards. Each package contains 100 terminals, making them suitable for large-scale installations or maintenance projects. Compliant with UL, CSA, and RoHS standards, the Pacer fully insulated disconnect terminals offer peace of mind and dependable performance for professional electrical work. Whether you are working on automotive wiring, industrial control panels, or marine systems, these terminals provide a secure, moisture-resistant connection that simplifies installation and servicing. Their corrosion resistance, vibration protection, and strain relief features make them an excellent choice for demanding applications where reliable electrical connections are paramount.
Features:
