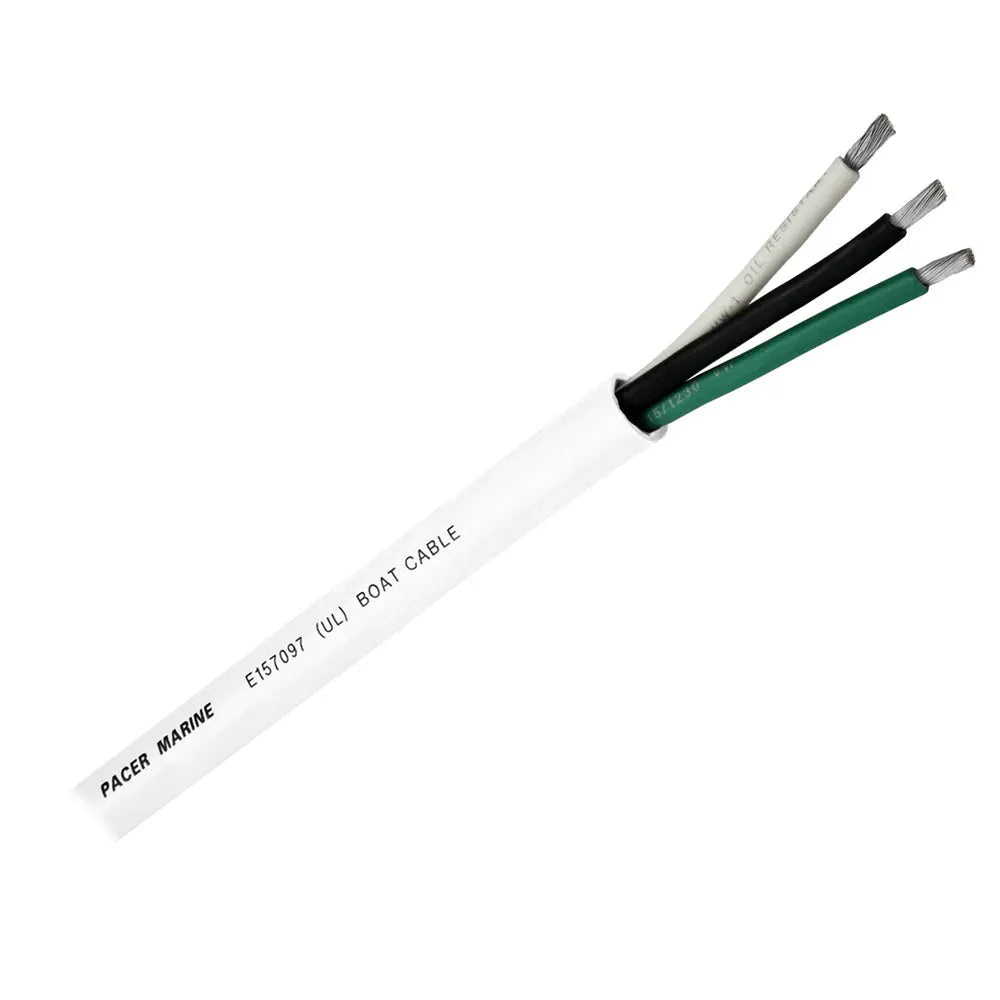

Pacer 16/3 AWG Round Marine Cable - 100 Feet with Black, Green & White Conductors

Round 3 Conductor Cable - 100' - 16/3 AWG - Black, Green White

Round boat cable is the ideal choice for installation in tight spaces like boat hulls. All Pacer round boat cable is manufactured in Sarasota FL, USA. Pacer's manufactured 16 AWG round boat cable is UL approved. The tinned copper conductors provide resistance to corrosion. This boat cable is the ideal multiconductor boat cable and is easy to install for many reasons. One reason it works so well is the fact that it can bend in any direction. With other, flatter cables, your range of motion is limited. It is also made from Type III finely stranded tinned copper conductors and it has flexible high-quality PVC insulation and a jacket. These things work together to make this the best boat cable available and the easiest to install in small workspaces. It also withstands the frequent vibration and flex commonly found in marine environments.

Features:

• 16 AWG round boat cable
• 100 ft. of cable
• No. of Conductors: 3
• Pacer's round boat cable is the perfect choice for a multitude of marine jobs
• It's perfect for running through t-tops, sailing spars, and poling platforms
• Also, it's the ideal choice for small hulls or other tight workspaces
• Type III, stranded, tinned copper conductors
• Highly flexible
• Easy to install and organize
• Easily sealed through bulkheads

Specifications:

• Conductor Colors: Black, green and white
• Conductor Stranding: 26/.0100
• Jacket Color: Grey
• Jacket Thickness (inch): 3 conductors @ 0.045"
• Nom. Cable O.D. (inch): 3 conductors @ 0.395"

Characteristics:

• Conductor: Annealed Fine Stranded Tinned Copper
• ASTM B172 Class K
• Insulation: -20 C to 105 C Flexible, Color Coded PVC
• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil
• Voltage Rating: 600 V
• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications:

• Pacer's round boat cable is excellent for AC and DC internal wiring of boats and recreational vehicles

Compliances:

• UL Standard 1426 (BC-5W2)
• ABYC: E-11.16
• Coast Guard: 33 CFR part 183
• RoHS Compliant

The Pacer 16/3 AWG round marine cable is designed for reliable electrical connections in tight and challenging spaces on boats and recreational vehicles. Made in Sarasota, FL, this 100-foot cable features highly flexible, finely stranded tinned copper conductors that resist corrosion and withstand the harsh marine environment. Its durable PVC insulation and jacket provide excellent insulation, flexibility, and resistance to moisture, oil, flame, and chemicals, ensuring long-lasting performance. The cable's design allows it to bend in any direction, making it ideal for installation through bulkheads, t-tops, sailing spars, and poling platforms, especially in small hulls or confined areas. The three color-coded conductors—black, green, and white—facilitate easy wiring and organization, while the 26/.0100 strand count ensures optimal flexibility and conductivity. With a voltage rating of 600 V and temperature tolerance from -20°C to 105°C, this cable delivers dependable power transfer in both AC and DC applications. Certified by UL and compliant with ABYC, Coast Guard, and RoHS standards, it meets the rigorous safety and environmental requirements for marine wiring. Whether used for internal wiring of boats or recreational vehicles, the Pacer round boat cable offers a high-quality, easy-to-install solution that endures the vibrations and flexing typical of marine environments, ensuring safety and performance over time.

Features:

• 16 AWG round boat cable with durable tinned copper conductors

• 100 feet length for versatile wiring applications

• Contains three color-coded conductors: black, green, and white

• Highly flexible and easy to install in tight spaces

• Made with Type III finely stranded tinned copper for corrosion resistance

• Flexible PVC insulation and jacket for durability and ease of organization

• Resistant to moisture, oil, flame, chemicals, and abrasion

• Rated for 600 volts and wide temperature range from -20°C to 105°C

• UL approved and compliant with ABYC, Coast Guard, and RoHS standards

• Ideal for marine applications such as internal wiring in boats and recreational vehicles
