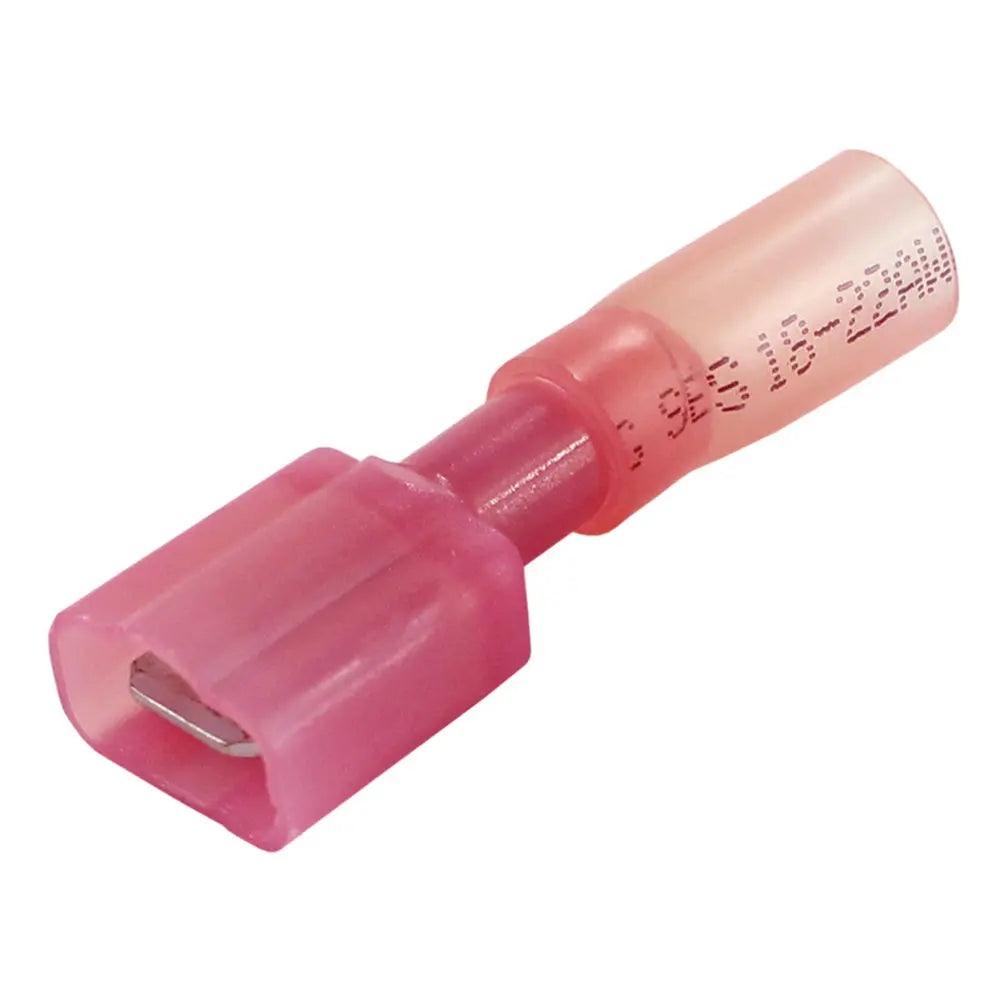

Pacer 22-18 AWG Fully Insulated Red Male Disconnect Terminal - 100 Pack

22-18 AWG Fully-Insulated Male Disconnect Terminal - Red - 100 Pack

Creating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacers heat-shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this This heat-shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.

This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Provides strain relief

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 C
• Operating Temp: -55 C - 125 C
• Vol. Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

Specifications:

• AWG: 22-18
• Disc./Bullet Size: 0.250 in.
• Insulation Color: Red
• Package Size: 100

Compliances:

• UL
• CSA
• RoHS

The Pacer TDE18-250FIM-100 fully insulated male disconnect terminals are designed for reliable and secure connections in electrical systems requiring wire gauges from 22 to 18 AWG. These terminals feature a heat-shrink design with a built-in heat-activated adhesive liner, providing an environmentally sealed connection that safeguards against moisture, water, oil, gas, and other corrosive elements. This protective feature ensures the integrity of electrical connections even in harsh conditions, making them ideal for outdoor or rugged environments. The insulation color code allows for quick identification and proper application, with red indicating suitability for 22-18 AWG wires. These terminals also offer strain relief, vibration resistance, and physical protection against abrasion and physical damage, which are essential qualities for maintaining long-term electrical performance.
Manufactured by Pacer, these terminals are rated for 600 volts and have a dielectric strength of 900 volts per mil, ensuring safe operation in a variety of electrical installations. The shrink ratio of approximately 3:1 at 135°C enables easy installation, providing a tight and durable connection once heat-shrunk. Operating across a temperature range of -55°C to 125°C, these terminals are versatile for use in diverse environments. The package includes 100 pieces, making them suitable for large projects or ongoing maintenance tasks. Compliance with UL, CSA, and RoHS standards guarantees quality and safety for professional and industrial applications.
Whether for electrical repairs, maintenance, or new installations, these fully insulated male disconnect terminals facilitate quick disconnection and reconnection, simplifying system servicing. Their rugged construction and moisture-resistant features make them a dependable choice for electrical professionals seeking durable, high-quality connectors that ensure safety and performance in challenging environments.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion

• Added vibration protection in rugged environments

• Provides strain relief
