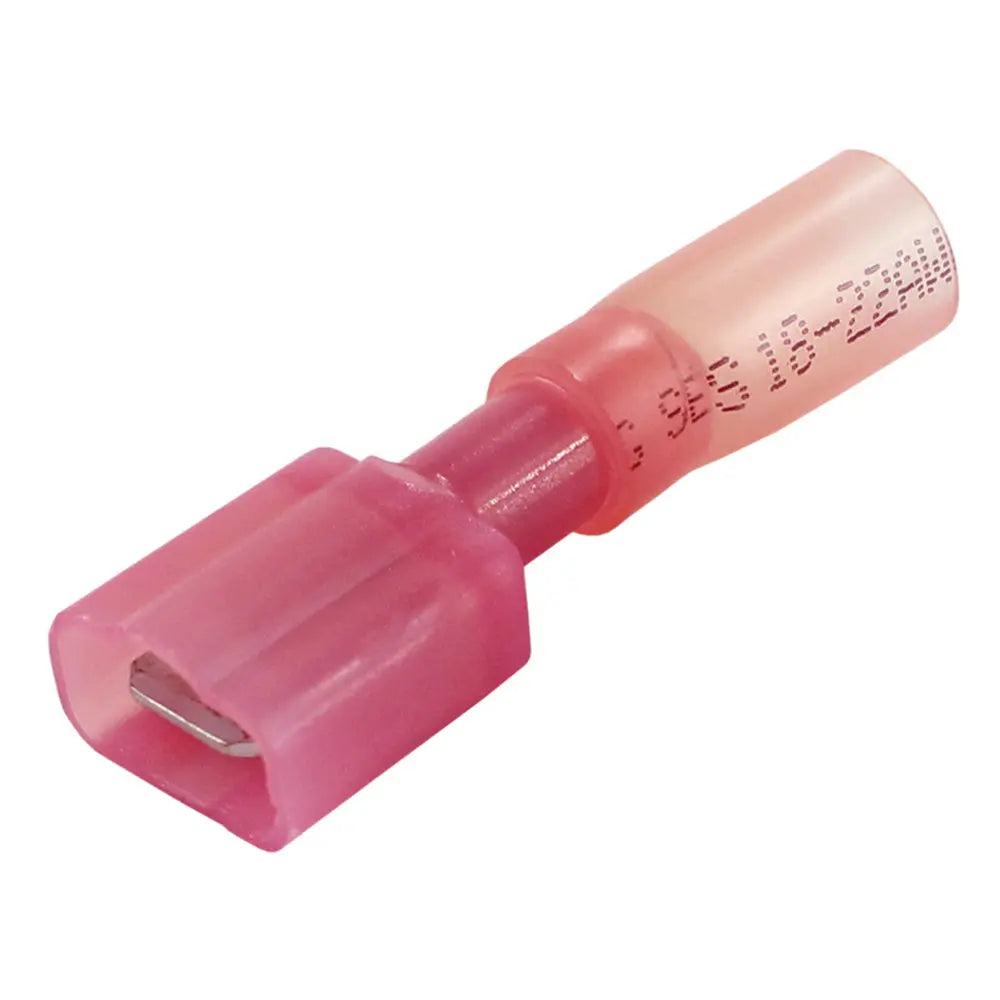

Pacer 22-18 AWG Fully-Insulated Red Male Disconnect Terminal - 25 Pack

22-18 AWG Fully-Insulated Male Disconnect Terminal - Red - 25 Pack

Creating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacers heat-shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this This heat-shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.

This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Provides strain relief

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 C
• Operating Temp: -55 C - 125 C
• Vol. Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

Specifications:

• AWG: 22-18
• Disc./Bullet Size: 0.250 in.
• Insulation Color: Red
• Package Size: 25

Compliances:

• UL
• CSA
• RoHS

The Pacer TDE18-250FIM-25 is a high-quality, fully-insulated male disconnect terminal designed for wire gauges 22 to 18 AWG. Constructed with durable heat-shrink material, this terminal features a built-in heat-activated adhesive liner that ensures a secure, waterproof seal against moisture, salt spray, and other environmental elements. Its rugged construction provides excellent protection against physical abuse and abrasion, making it ideal for use in challenging outdoor or industrial settings. The red insulation color indicates compatibility with 22-18 AWG wire sizes, simplifying correct installation and ensuring safe, reliable connections. These terminals are suitable for applications requiring a secure disconnection and reconnection, such as maintenance and field servicing, offering convenience without compromising safety. The heat shrink ratio of approximately 3:1 at 135°C allows for easy installation and a tight fit, while the operating temperature range from -55°C to 125°C ensures performance in diverse environments. With a voltage rating of 600 volts and dielectric strength of 900 volts per mil, these terminals meet rigorous safety standards and are compliant with UL, CSA, and RoHS certifications. Ideal for electrical systems demanding robust moisture resistance and vibration protection, the Pacer fully-insulated disconnect terminals provide a reliable, long-lasting connection for a range of applications including automotive, marine, and industrial wiring systems. The package includes 25 terminals, each with a 0.250-inch disconnect size, making them suitable for various wiring projects requiring secure, insulated connections.
