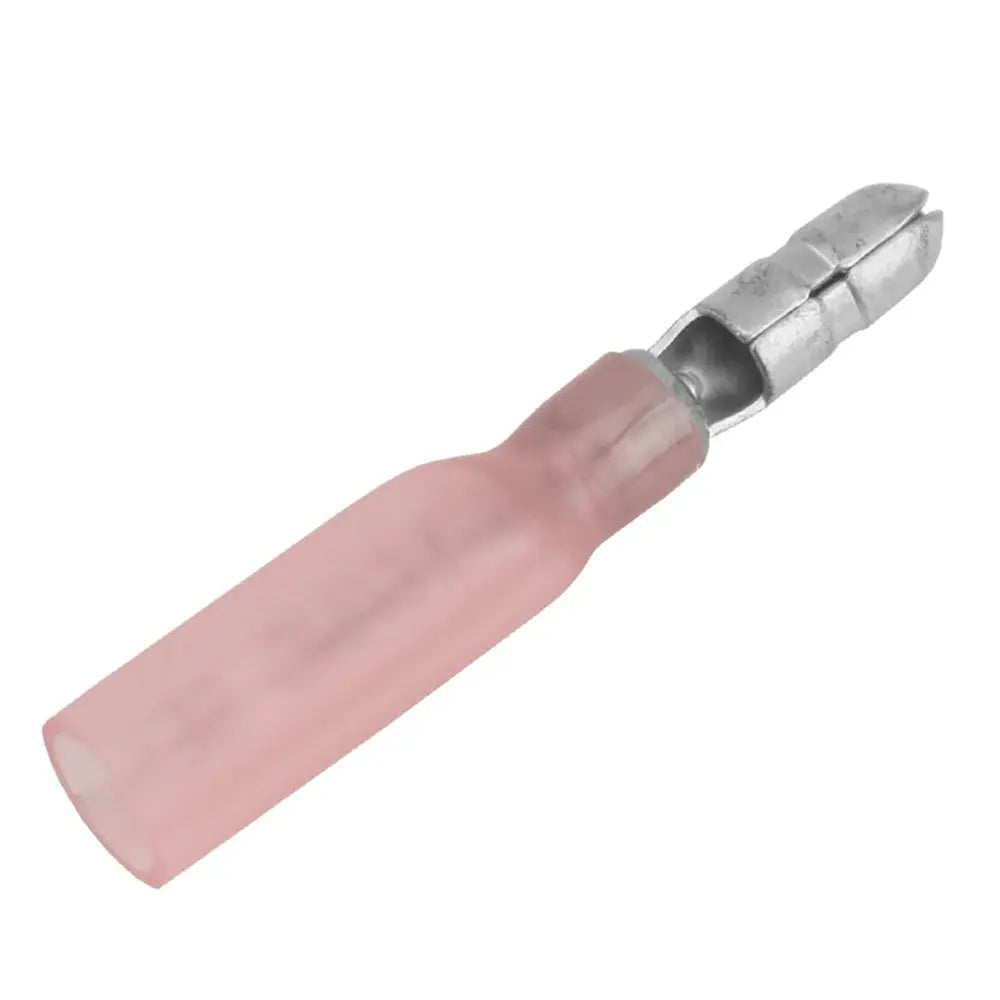

Pacer 22-18 AWG Heat Shrink Male Bullet Terminal - 25 Pack

22-18 AWG Heat Shrink Male Bullet Terminal - 25 Pack

Disconnects are a type of terminal intended to be disconnected and reconnected multiple times. This makes them ideal for use where field serviceability is an issue. Disconnects are a great way to protect electrical connections. Whether dealing with mechanical abuse, wire pull-out, or abrasion, they are a solid choice for longevity. Disconnects are sometimes known as quick connects or slip-on connectors.

Features:

• Male bullet terminal
• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Disconnect reconnectable
• Creates solid connections
• Meets multiple compliances

Benefits:

• Environmentally sealed
• Built for durability
• Tinned Copper
• Long Lasting
• Easy to install

Characteristics:

• Insulation Color: Red
• Wire AWG: 22-18 AWG
• Package Size: Twenty-five included
• Bullet Terminal Size (inch): 0.156"
• Shrink Ratio: Approximately 3:1 at 135 C
• Operating Temperature: -55 C - 125 C
• Volume Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

The Pacer TBPE18-156-25 is a reliable set of 25 heat shrink male bullet terminals designed for secure electrical connections in various applications. These terminals are ideal for situations requiring multiple disconnections and reconnections, offering excellent field serviceability. Made from tinned copper, they provide resistance against water, condensation, salt spray, and corrosion, ensuring long-lasting performance in harsh environments. The insulation color is red, indicating compatibility with wire sizes ranging from 22 to 18 AWG, and the terminals feature a 0.156-inch bullet size for versatile use.

Constructed for durability, these terminals include a heat shrink feature with approximately a 3:1 ratio at 135°C, providing an environmental seal that protects against mechanical abuse, abrasion, and vibration. They meet multiple industry standards for safety and quality, making them suitable for both automotive and industrial applications. The operating temperature range spans from -55°C to 125°C, allowing use in a wide array of conditions. Additionally, the terminals have a dielectric strength of 900 volts per mil and a voltage rating of 600 volts, supporting high-voltage connections with confidence.

Installation is straightforward, thanks to their design which ensures solid, reliable connections once properly crimped and heat-shrunk. These terminals are well-suited for environments where vibration and mechanical stress are concerns, providing added protection and longevity. Whether used in automotive wiring harnesses, machinery, or other electrical systems, the Pacer heat shrink male bullet terminals deliver dependable performance and easy maintenance, making them a valuable addition to any electrical toolkit.

Features:

• Male bullet terminal with 0.156-inch size

• Provides protection from water, condensation, salt spray, and corrosion

• Offers added vibration protection in rugged environments

• Reconnectable and easy to install

• Creates solid, reliable electrical connections

• Meets multiple industry compliance standards
