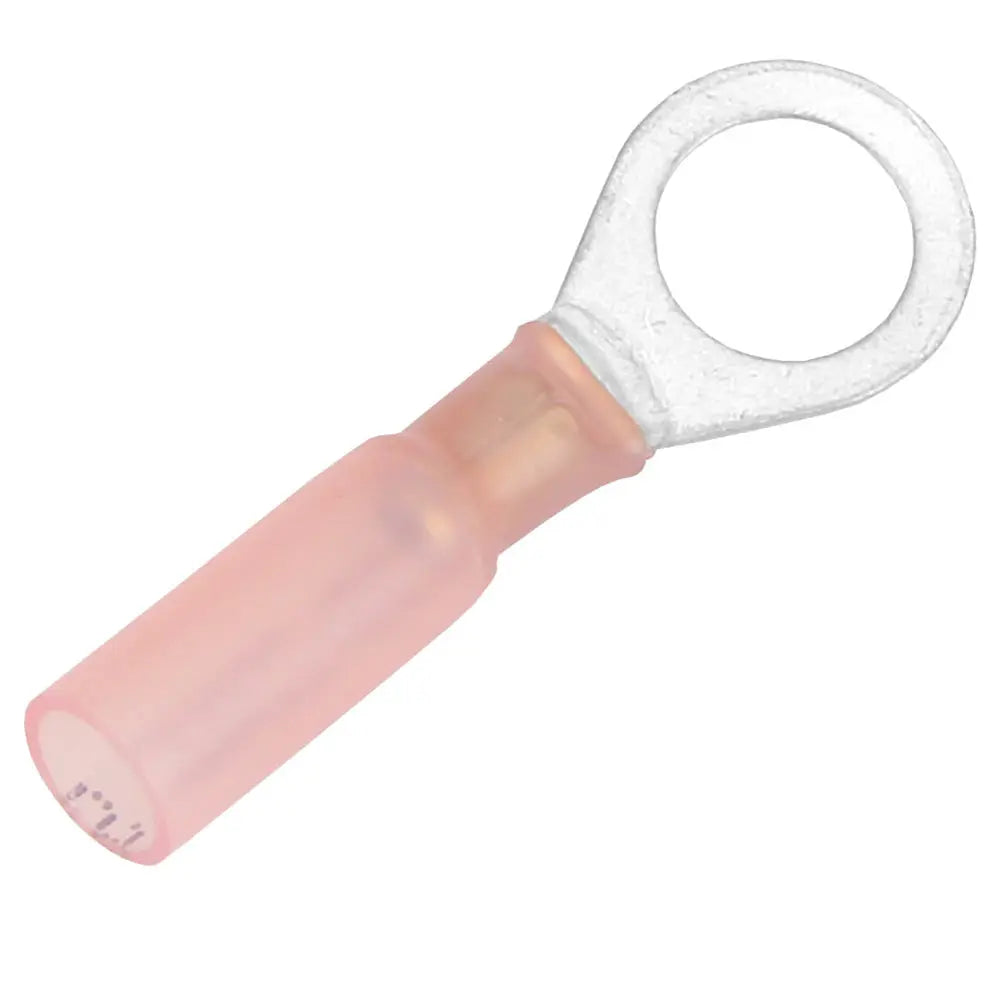

Pacer 22-18 AWG Heat Shrink Ring Terminal with 5/16-inch Stud Size, Pack of 25

22-18 AWG Heat Shrink Ring Terminal - 5/16 Stud Size - 25 Pack

Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users dont need to worry about the connector coming off. The ring fits over a stud or screw and doesnt pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isnt always an easy task. Contact a Pacer expert with any questions that you may have.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Provides strain relief
• Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion
• Conforms to automotive manufacturers specifications for wiring repairs
• Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job

Compliances:

• UL
• CSA
• RoHS

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 C
• Operating Temp: -55 C - 125 C
• Vol. Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

Specifications:

• Wire: 22-18 AWG
• Stud Size: 5/16
• Terminal Pad Width: 0.47
• Package Size: 25

The Pacer TE18-56R-25 heat shrink ring terminal offers a reliable and durable connection solution for 8 AWG wires, designed to withstand harsh environments. This terminal features a heat-activated adhesive liner within translucent polyolefin tubing, providing an excellent moisture and contaminant seal to protect against water, salt spray, and corrosion. Its rugged construction ensures long-term performance, making it ideal for automotive, industrial, and marine wiring applications. The ring terminal's design ensures a secure fit over a 5/16-inch stud or screw, preventing accidental disconnection and providing added vibration resistance. Additionally, the terminal provides strain relief, reducing stress on wire connections and prolonging their lifespan. The color-coded tubing with wire gauge imprint simplifies identification, streamlining installation and maintenance tasks. Compliant with UL, CSA, and RoHS standards, this product guarantees safety and environmental responsibility.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion

• Added vibration protection in rugged environments

• Provides strain relief

• Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a moisture and contaminant seal

• Conforms to automotive manufacturer specifications for wiring repairs

• Color-coded tubing with wire gauge imprint for easy identification
