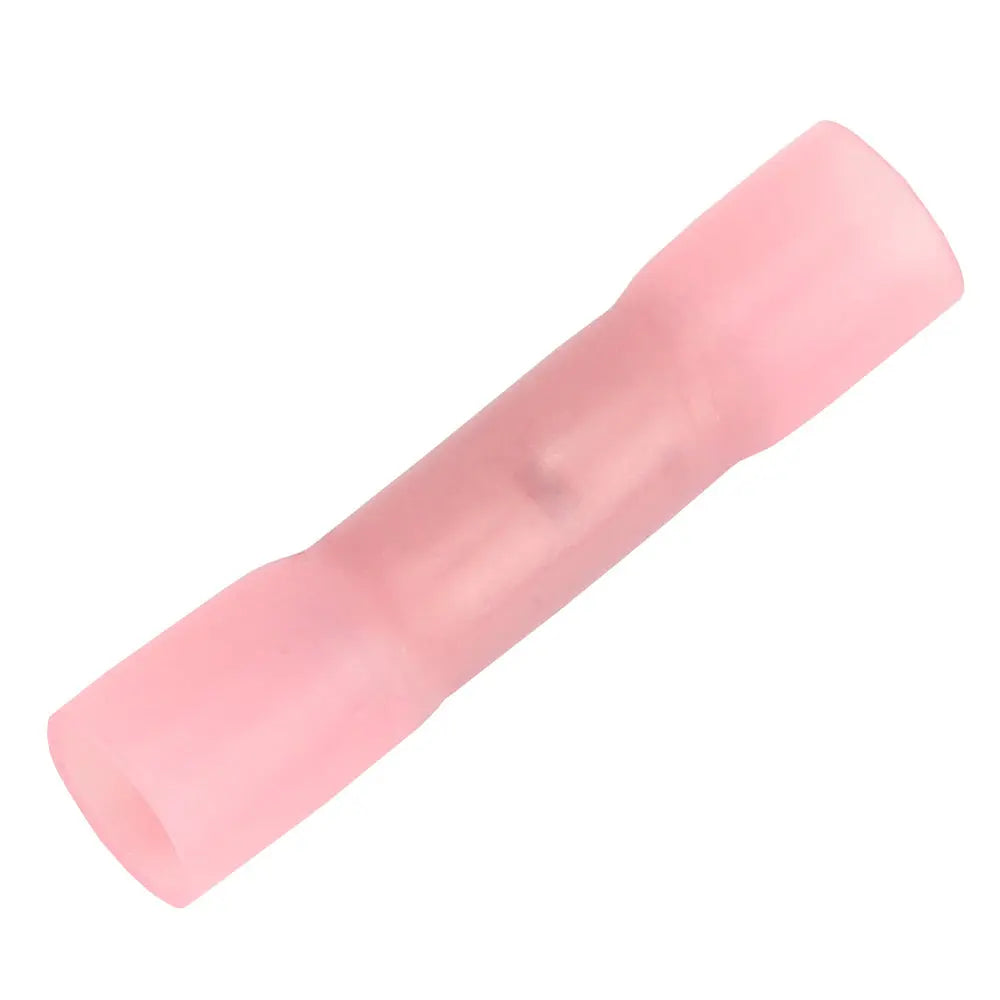

Pacer 8 AWG Heat Shrink Butt Connector - 100 Pack for Reliable Electrical Connections

8 AWG Heat Shrink Butt Connector - 100 Pack

Butt splices are a type of connector used to safely connect one or more wires to another wire. Their economical pricing and ease of use make them common in electrical systems. Heat shrink butt splices create an environmentally sealed connection to handle harsh conditions. They are simple to use. First, make sure you have correctly stripped the wires to the proper length. Inside the butt splice, you will see an indentation your wires should butt up against. Be careful to make sure that the butt splice and the wire insulation are touching. Otherwise, you run the risk of damaging the wire due to exposure. So, the stripped wire is inserted into one side of the butt splice and crimped with the proper tool. This crimp bends the connector around the wire, creating a solid connection. Next, you simply repeat the process on the other side. Alternatively, you can crimp the other end, creating a dead end. Before you heat it, dont forget the tug test. Once your wire is properly crimped, apply heat to the butt splice working outward. Be careful not to burn the butt splice or the wire insulation. And now youve created a durable, environmentally protected connection. Remember, butt splices are useful for their rapid installation and durability. Other methods of connection may not offer the same level of protection.

Terminals are a necessity for any electrical system. Heat shrink butt splices provide a rugged, environmentally sealed connection that is meant to last. These butt splices are designed for use with 8 AWG wires. How do you use 8 AWG heat shrink butt splices You start by preparing your wires. This means cutting and stripping them to the correct length. Every butt splice has an internal indentation of it where your wires should meet. So now, you insert the wire into the butt splice, making sure the tip touches the indentation. Using the proper tool, you need to crimp the side of the butt splice, which creates a solid connection. Repeat the process on the other side of the butt splice. Next, perform a tug test to make sure that the wires do not pull out. After that, use the proper heat gun or torch to correctly heat the outer heat shrink. Why use 8 AWG heat shrink butt splices Heat shrink butt splices offer the highest level of protection available. By using these splices, users are creating a moisture-proof seal that will last. Heat shrink butt splices protect connections from physical abuse and abrasion. They also protect from water, salt, and other corrosive compounds.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Provides strain relief
• Cost-effective

Characteristics:

• Shrink ratio: Approx.: 3-1 at 135 C
• Operating Temp: -55 C - 125 C
• Vol. Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil

Specifications:

• Wire Range: 8 AWG
• Insulation Color: Pink
• Max Wire Insulation Outer Diameter (inch): 0.35
• Base Material: Tinned Copper
• Voltage Rating: 600-V
• Package Size: 100

Compliances:

• UL
• CSA
• RoHS

The Pacer TBSE8-100 is a high-quality set of 8 AWG heat shrink butt connectors designed for durable and environmentally sealed wire connections. These connectors are ideal for automotive, marine, and industrial applications where protection against moisture, corrosion, and physical stress is critical. Crafted from tinned copper with a heat shrink outer shell, these butt splices offer excellent electrical conductivity and mechanical protection for your wiring projects. The shrink ratio of approximately 3:1 at 135°C ensures a tight seal around the wire, providing a moisture-proof and corrosion-resistant connection. The connectors are rated for up to 600 volts and operate effectively within a temperature range of -55°C to 125°C, making them suitable for extreme environmental conditions. The package includes 100 pieces, making them an economical choice for large-scale or long-term projects.

To install, simply strip the wire ends to the proper length, insert each wire into the respective side of the butt splice until it reaches the internal indentation, and crimp securely with a suitable crimping tool. After ensuring a firm connection through a tug test, position the heat gun or torch to evenly apply heat outward from the center of the splice. Proper heating causes the heat shrink material to contract, forming a tight, waterproof seal that protects against water, salt spray, and other corrosive elements. This process not only ensures electrical integrity but also enhances mechanical durability, making these connectors resistant to vibration and physical wear. The pink insulation color indicates compatibility with 8 AWG wires, and the connectors meet UL, CSA, and RoHS standards for safety and environmental compliance.

Designed with rugged environments in mind, these heat shrink butt connectors provide strain relief and added protection against physical damage. They are suitable for use in various applications where secure, sealed connections are needed, including automotive wiring, marine installations, and outdoor electrical systems. Their cost-effectiveness combined with ease of use makes them a popular choice among professionals and DIY enthusiasts alike. Whether you're repairing, extending, or creating new wiring circuits, the Pacer TBSE8-100 ensures a reliable, long-lasting connection that withstands harsh conditions and promotes electrical safety.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion

• Added vibration protection in rugged environments

• Provides strain relief

• Cost-effective
