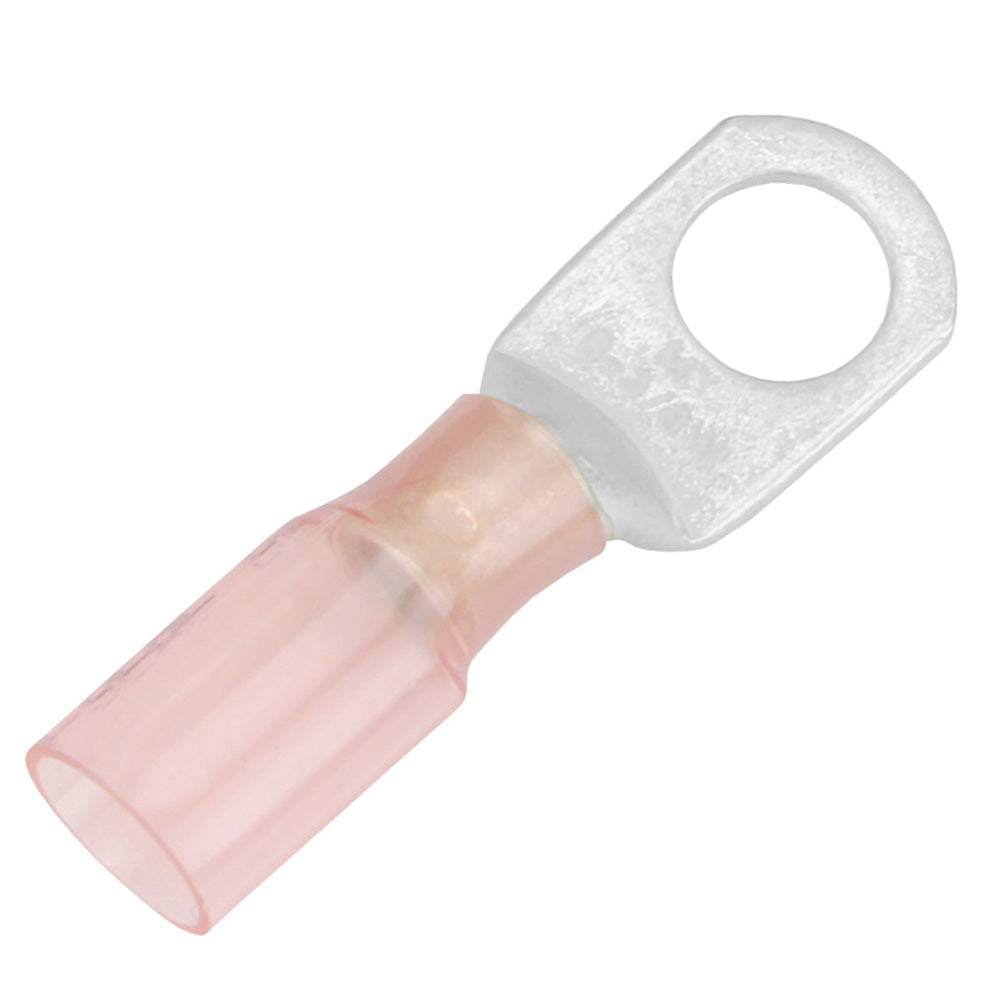

Pacer 8 AWG Heat Shrink Ring Terminal with 3/8 Inch Stud Size - 25 Pack

8 AWG Heat Shrink Ring Terminal - 3/8 Stud Size - 25 Pack

Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users dont need to worry about the connector coming off. The ring fits over a stud or screw and doesnt pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isnt always an easy task. Contact a Pacer expert with any questions that you may have.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Provides strain relief
• Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion
• Conforms to automotive manufacturers specifications for wiring repairs
• Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job

Compliances:

• UL
• CSA
• RoHS

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 C
• Operating Temp: -55 C - 125 C
• Vol. Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

Specifications:

• Stud Size: 3/8
• Terminal Pad Width: 0.59
• Package Size: 25

The Pacer TE8-38R-25 heat shrink ring terminal is designed for secure electrical connections with 8 AWG wire. Its 3/8 inch stud size ensures a reliable fit over standard terminal studs, making it ideal for automotive, industrial, and marine wiring applications. Crafted with a durable, translucent polyolefin insulation that features an adhesive liner, this terminal provides a moisture-proof seal that safeguards against water, condensation, salt spray, and corrosion. The heat-activated adhesive ensures a rugged, environmentally sealed connection capable of withstanding harsh environments while offering excellent strain relief and vibration protection. These features contribute to long-term performance and safety, especially in demanding conditions where environmental resistance is critical. The terminal conforms to automotive wiring standards and includes color-coded tubing with wire gauge markings for easy identification during installation. Suitable for applications requiring dependable moisture and environmental protection, this terminal delivers both safety and durability in a compact package.

The heat shrink properties include a 3:1 shrink ratio at 135°C, with an operating temperature range from -55°C to 125°C. It boasts a dielectric strength of 900 volts per mil and a voltage rating of 600 volts, making it suitable for high-voltage applications. The terminal pad width is approximately 0.59 inches, ensuring compatibility with standard wiring setups. The package includes 25 ring terminals, providing ample supply for multiple installations. Compliant with UL, CSA, and RoHS standards, the Pacer heat shrink ring terminal offers a reliable solution for secure and protected electrical terminations across various industries and environments.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion

• Added vibration protection in rugged environments

• Provides strain relief

• Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion

• Conforms to automotive manufacturers specifications for wiring repairs

• Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job
