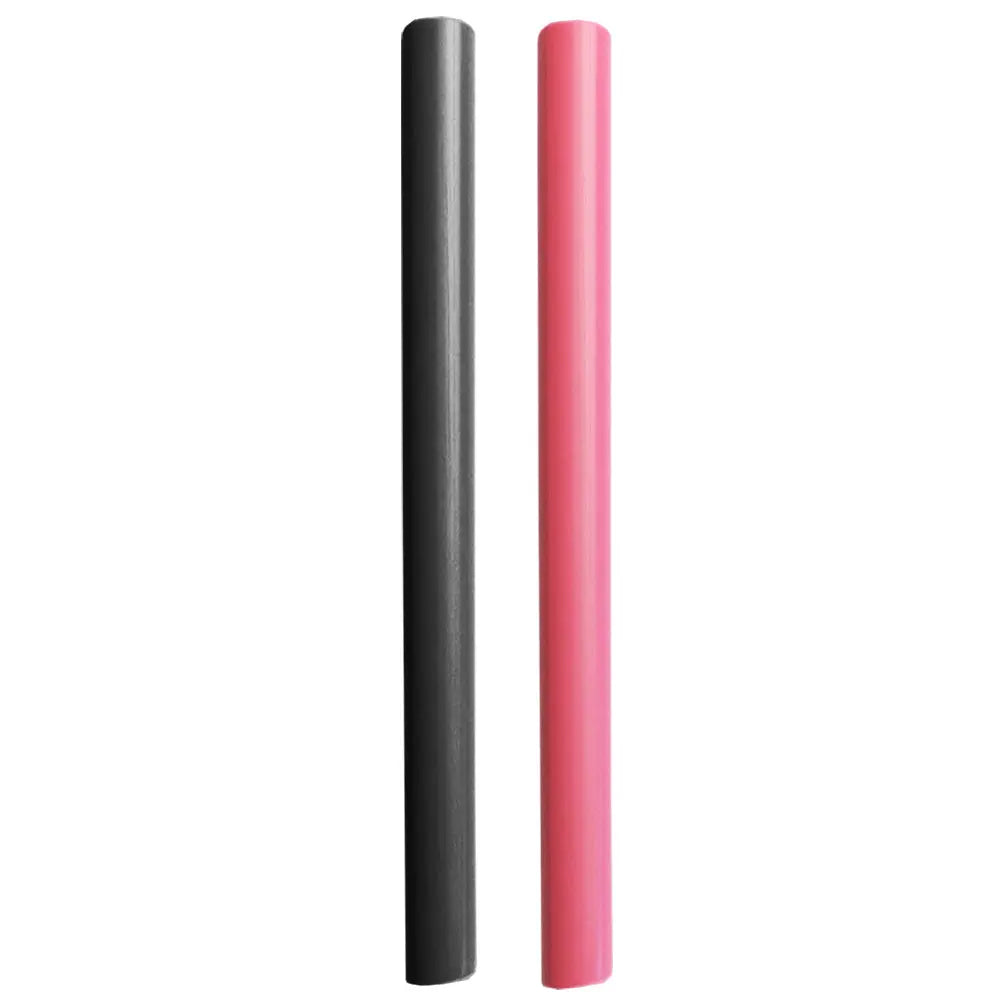

Pacer Battery Cable Heat Shrink Tubing - 1/4 inch x 3 inches Black/Red, 2-Pieces Combo Pack

Battery Cable Heat Shrink Tubing - 1/4 x 3 - Black/Red (2-Pieces Combo Pack)

BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated. When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic. Insulation varies with different types of wires, different diameters or tubing may be required. When choosing a size, consider any components or connectors that may need to be covered.

Features:

• Highly abrasion and impact-resistant
• Easy installation, shrinks when heated over 120 C
• The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
• A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
• Any connection in harsh conditions
• Adhesive lining provides a barrier against contaminants
• Excellent resistance to acids and alkalis
• Good resistance to fuel, oil, and solvents

Applications:

• Splice sealing
• Primary insulation
• Cable/jacket repair
• Direct burial/submersible
• Strain relief

Compliances:

• MIL-I-23053/15 Class 2

The Pacer BEHS1/4-3BKRD battery cable heat shrink tubing offers a durable solution for insulating, sealing, and protecting electrical connections in demanding environments. Designed with a dual-purpose thermoplastic liner, this tubing flows and encapsulates when heated to over 120°C, creating a secure, adhesive bond that enhances mechanical strength and provides excellent corrosion resistance. Its heavy wall construction ensures superior abrasion and impact resistance, making it suitable for rugged applications. The tubing's adhesive liner adheres well to materials like PVC, neoprene, polyolefin, EPR, steel, and aluminum, ensuring a tight seal around wires and connectors. This feature makes it ideal for splice sealing, primary insulation, cable or jacket repair, and strain relief in harsh conditions. The tubing also offers excellent resistance to acids, alkalis, fuel, oil, and solvents, providing comprehensive environmental protection. Compliant with MIL-I-23053/15 Class 2 standards, it meets military specifications for durability and performance. Whether used in direct burial, submersible, or other demanding electrical applications, this heat shrink tubing provides reliable insulation and protection, extending the lifespan of critical electrical components.

Features:

• Highly abrasion and impact-resistant for demanding environments

• Easy installation, shrinks when heated over 120°C for a secure fit

• Thermoplastic liner adheres to PVC, neoprene, polyolefin, EPR, steel, and aluminum

• Sturdy, heavy wall construction with excellent insulating and strain-relieving properties

• Adhesive lining acts as a barrier against contaminants and moisture

• Excellent resistance to acids, alkalis, fuel, oil, and solvents

• Suitable for splice sealing, primary insulation, cable repair, and strain relief

• Designed for use in harsh conditions, including direct burial and submersion

• Meets MIL-I-23053/15 Class 2 standards for military-grade performance
