SKU:105030

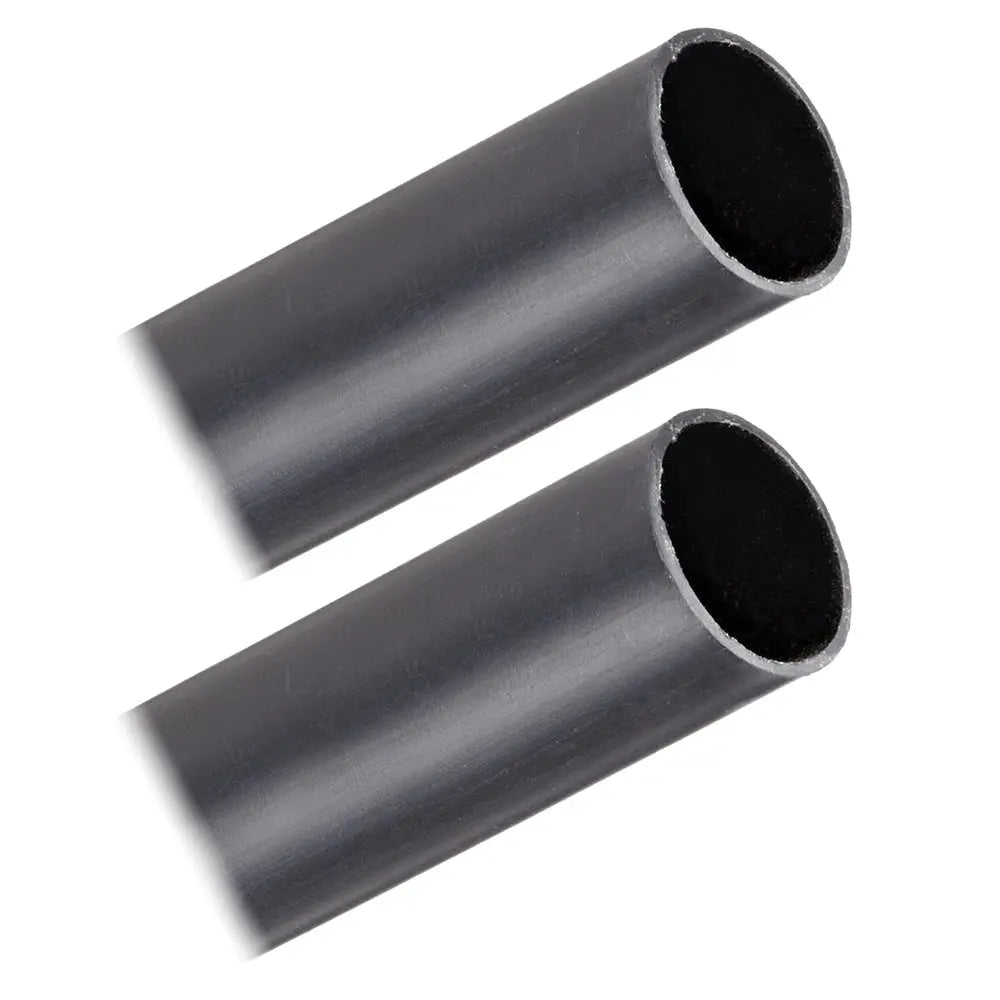

Pacer BHW1-12BK-2 Heavy Wall Heat Shrink Tubing for Battery Cable, 1 Inch x 12 Inches, Black (2 Pieces)

Pacer BHW1-12BK-2 Heavy Wall Heat Shrink Tubing for Battery Cable, 1 Inch x 12 Inches, Black (2 Pieces)

Regular price $13.99 USD
Sale price $13.99 USD Regular price
Sale Sold out
Shipping calculated at checkout.

Battery Cable Heavy Wall Heat Shrink Tubing - 1 x 12 - Black (2-Pieces)

BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated. When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic. Insulation varies with different types of wires, different diameters or tubing may be required. When choosing a size, consider any components or connectors that may need to be covered.

Features:

  • Highly abrasion and impact-resistant
  • Easy installation, shrinks when heated over 120 C
  • The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
  • A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
  • Any connection in harsh conditions
  • Adhesive lining provides a barrier against contaminants
  • Excellent resistance to acids and alkalis
  • Good resistance to fuel, oil, and solvents

Applications:

  • Splice sealing
  • Primary insulation
  • Cable/jacket repair
  • Direct burial/submersible
  • Strain relief

Compliances:

  • MIL-I-23053/15 Class 2

The Pacer BHW1-12BK-2 Heavy Wall Heat Shrink Tubing is designed for robust insulation and protection of battery cables and electrical connections. Coated internally with a dual-purpose thermoplastic liner, this tubing flows and encapsulates when heated, providing a strong mechanical bond and superior environmental resistance. Once cooled, it offers the adhesion and corrosion protection of a high-quality mastic, ensuring long-lasting performance in demanding conditions. Its heavy wall construction enhances abrasion and impact resistance, making it suitable for harsh environments and demanding applications. The tubing shrinks when heated above 120°C, simplifying installation over wires and connectors of varying sizes, and the thermoplastic liner adheres effectively to materials like PVC, neoprene, polyolefin, EPR, steel, and aluminum. Thanks to its excellent insulating, strain relief, and abrasion-resisting properties, this tubing is ideal for splice sealing, primary insulation, cable or jacket repairs, and direct burial or submersible applications. The adhesive lining creates a barrier against contaminants, acids, alkalis, fuels, oils, and solvents, providing comprehensive protection for electrical components in challenging conditions. Compliant with MIL-I-23053/15 Class 2 standards, the Pacer heavy wall heat shrink tubing ensures reliable performance in demanding environments and critical electrical installations.

Features:

  • Highly abrasion and impact-resistant
  • Easy installation, shrinks when heated over 120°C
  • Thermoplastic liner adheres to PVC, neoprene, polyolefin, EPR, steel, and aluminum
  • Heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties
  • Adhesive lining provides a barrier against contaminants
  • Resistant to acids, alkalis, fuel, oil, and solvents
