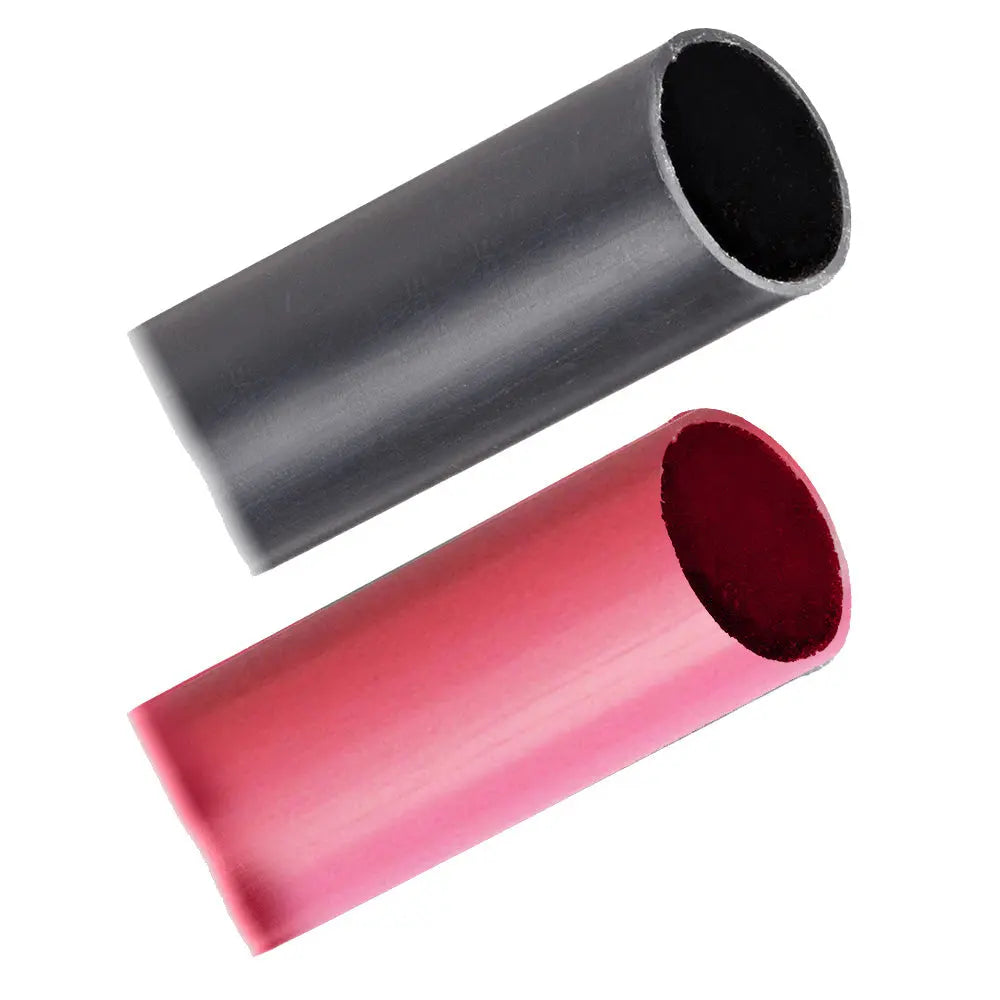

Pacer BHW1-3BKRD Heavy Wall Heat Shrink Tubing for Battery Cables, 1 inch x 3 feet, Black/Red (2-Pieces Combo Pack)

Battery Cable Heavy Wall Heat Shrink Tubing - 1 x 3 - Black/Red (2-Pieces Combo Pack)

BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated. When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic. Insulation varies with different types of wires, different diameters or tubing may be required. When choosing a size, consider any components or connectors that may need to be covered.

Features:

• Highly abrasion and impact-resistant
• Easy installation, shrinks when heated over 120 C
• The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
• A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
• Any connection in harsh conditions
• Adhesive lining provides a barrier against contaminants
• Excellent resistance to acids and alkalis
• Good resistance to fuel, oil, and solvents

Applications:

• Splice sealing
• Primary insulation
• Cable/jacket repair
• Direct burial/submersible
• Strain relief

Specifications:

• Expanded Inner Diameter: 1.1
• Recovered Inner Diameter: 0.367
• Application Range AWG: 1/0 - 4/0 (.40 - .95)
• Recovered Wall Thickness: 0.12

Compliances:

• MIL-I-23053/15 Class 2

The Pacer BHW1-3BKRD Heavy Wall Heat Shrink Tubing is designed specifically for high-performance electrical insulation and protection in demanding environments. Constructed with a dual-purpose thermoplastic liner, this tubing flows and encapsulates when heated above 120°C, providing a reliable and durable barrier for battery cables and other wiring applications. Once cooled, the tubing exhibits the mechanical strength of a superior adhesive combined with the corrosion-resistant qualities of a high-quality mastic, ensuring long-lasting protection against environmental factors. Its heavy wall design offers excellent abrasion, impact resistance, and strain relief, making it suitable for applications where robust insulation is essential. The thermoplastic liner adheres well to materials such as PVC, neoprene, polyolefin, EPR, steel, and aluminum, providing a secure and sealed connection that shields against contaminants, acids, alkalis, fuel, oil, and solvents. This versatility makes it an ideal choice for splice sealing, primary insulation, cable or jacket repair, direct burial, submersible use, and strain relief in harsh conditions. The tubing's expanded inner diameter of 1.1 inches and recovered inner diameter of 0.367 inches ensure compatibility with cables sized from 1/0 to 4/0 AWG (.40 to .95 inches). Its recovered wall thickness of 0.12 inches adds to its durability and insulating properties, fulfilling MIL-I-23053/15 Class 2 compliance for military-grade standards. This pack includes two pieces measuring 1 inch in diameter and 3 feet in length, providing ample coverage for multiple installations and repairs. With its high resistance to abrasion, impact, and environmental contaminants, Pacer's heavy wall heat shrink tubing is an essential accessory for electrical professionals seeking reliable and long-lasting insulation solutions in demanding environments.

Features:

• Highly abrasion and impact-resistant for durability in harsh conditions

• Easy installation, shrinks when heated over 120°C for a secure fit

• Thermoplastic liner adheres to PVC, neoprene, polyolefin, EPR, steel, and aluminum

• Heavy wall construction provides excellent insulation, abrasion resistance, and strain relief

• Adhesive lining offers a barrier against contaminants and environmental factors

• Resistant to acids, alkalis, fuel, oil, and solvents for versatile usage

• Suitable for splice sealing, primary insulation, cable repair, and submersible applications

• MIL-I-23053/15 Class 2 compliant for military-grade quality
