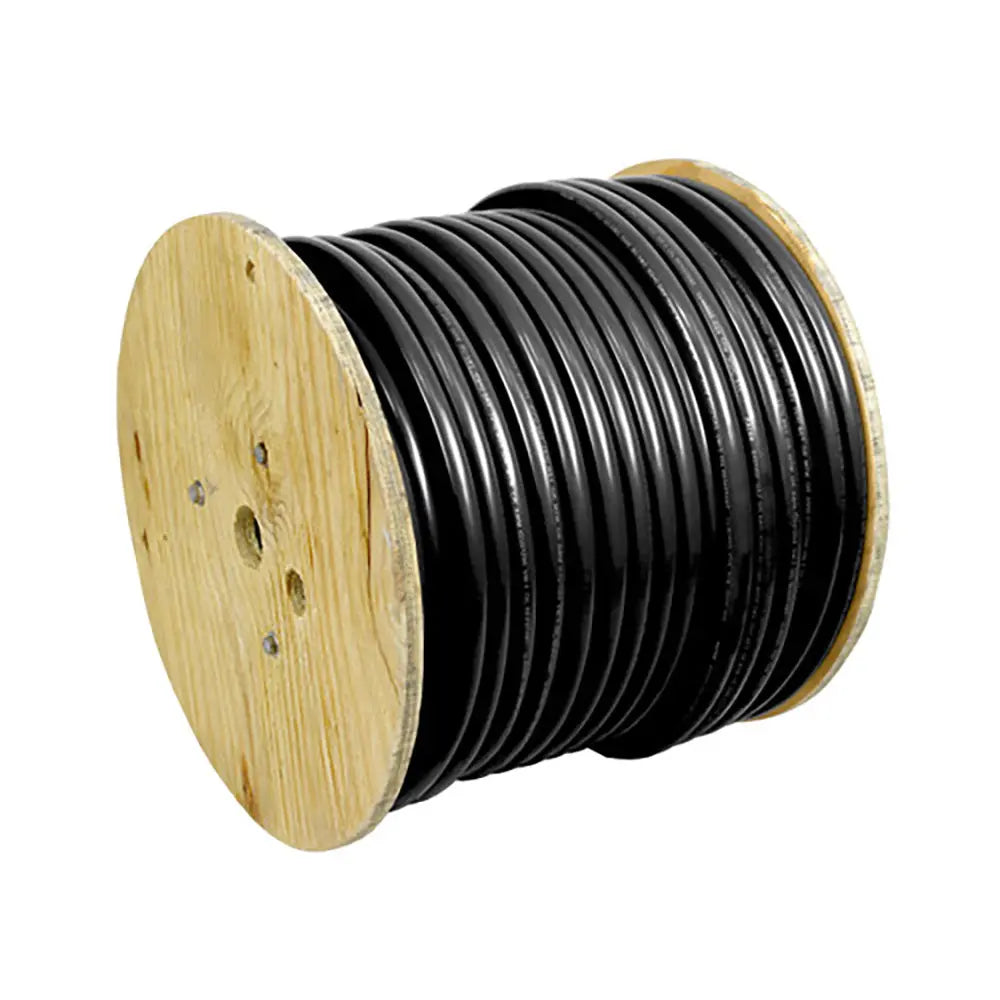

Pacer Black 1/0 AWG Marine Battery Cable - 250 Feet for Heavy-Duty Marine Applications

Black 1/0 AWG Battery Cable - 250

Pacers 1/0 AWG Marine Battery Cable is designed to exceed stringent specifications. This UL-approved cable is manufactured in-house in Sarasota, FL, USA, which ensures high quality. Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier. This is achieved by creating a flexible yet tough marine cable.

This 1/0 AWG marine battery cable can handle the toughest environments. This marine battery cable is made from Type III Class K tinned copper. The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible proprietary PVC jacket. These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Applications:

• Connecting battery or generator to a starter, ground, switch, windlass, inverter, or other high-amperage equipment

Characteristics:

• Conductor: Annealed stranded tinned copper ASTM B172 Class K
• Insulation: -20 C to 105 C Flexible, Color-Coded PVC
• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil
• Voltage Rating: 600-V
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Specifications:

• AWG: 1/0
• Color: Black
• Length: 250 ft.
• Conductor Stranding: 19x 56/0.0100
• Nom. Ins. Thickness: 0.080
• Nom. O.D.: 0.600
• Nom. Circular Mils: 106400
• Nom. MM2: 53.9
• Approximate Weight: 450 lb/m

Compliances:

• UL Standard 1426 BC-5W2
• AWM 1232/1284
• MTW
• CSA: TEW
• ABYC: E-11.15
• Coast Guard: 33 CFR part 183 Subpart 1

The Pacer WUL1/0BK-250 marine battery cable is designed for demanding marine electrical systems, providing a reliable connection for batteries, generators, and high-amperage equipment. Crafted with precision in Sarasota, FL, this UL-approved cable combines durability and flexibility, making it suitable for tight, enclosed spaces with sharp turns where installation can be challenging. Its robust construction ensures it withstands harsh marine environments, extending the lifespan of your electrical system.

Constructed from Type III Class K tinned copper, the conductor offers excellent corrosion resistance, which is essential for marine applications exposed to moisture, salt, and other corrosive elements. The cable features a proprietary PVC jacket that provides flexibility and durability, allowing for easy stripping, bending, and routing without compromising integrity. This flexibility is combined with high resistance to acid, alkali, abrasion, flame, gasoline, oil, and moisture, making it suitable for the most severe conditions.

This 1/0 AWG marine battery cable is rated for 600 volts and can operate reliably across a wide temperature range from -20°C to 105°C. Its insulation thickness and overall design ensure safe and efficient power transmission, whether used in dry, wet, or oil-exposed environments. The cable's construction includes 19 strands of 56/0.0100 annealed stranded tinned copper, with a nominal diameter of 0.600 inches and a weight of approximately 450 pounds per 1000 feet, making it suitable for high-current applications requiring a durable and flexible power cable.

Compliance with industry standards such as UL 1426, CSA TEW, and ABYC E-11.15 ensures that this cable meets rigorous safety and performance benchmarks. Whether connecting batteries to starters, inverters, windlasses, or switches, the Pacer marine battery cable provides a dependable and high-quality solution for marine electrical systems, ensuring safety and reliability on the water.

Features:

• Easy to strip, bend, and route for simplified installation

• Excellent flexibility combined with durable PVC insulation

• Corrosion-resistant tinned copper conductor for marine environments

• High temperature rating for versatile operation in various conditions

• Rated for 600 volts, suitable for high-amperage applications
