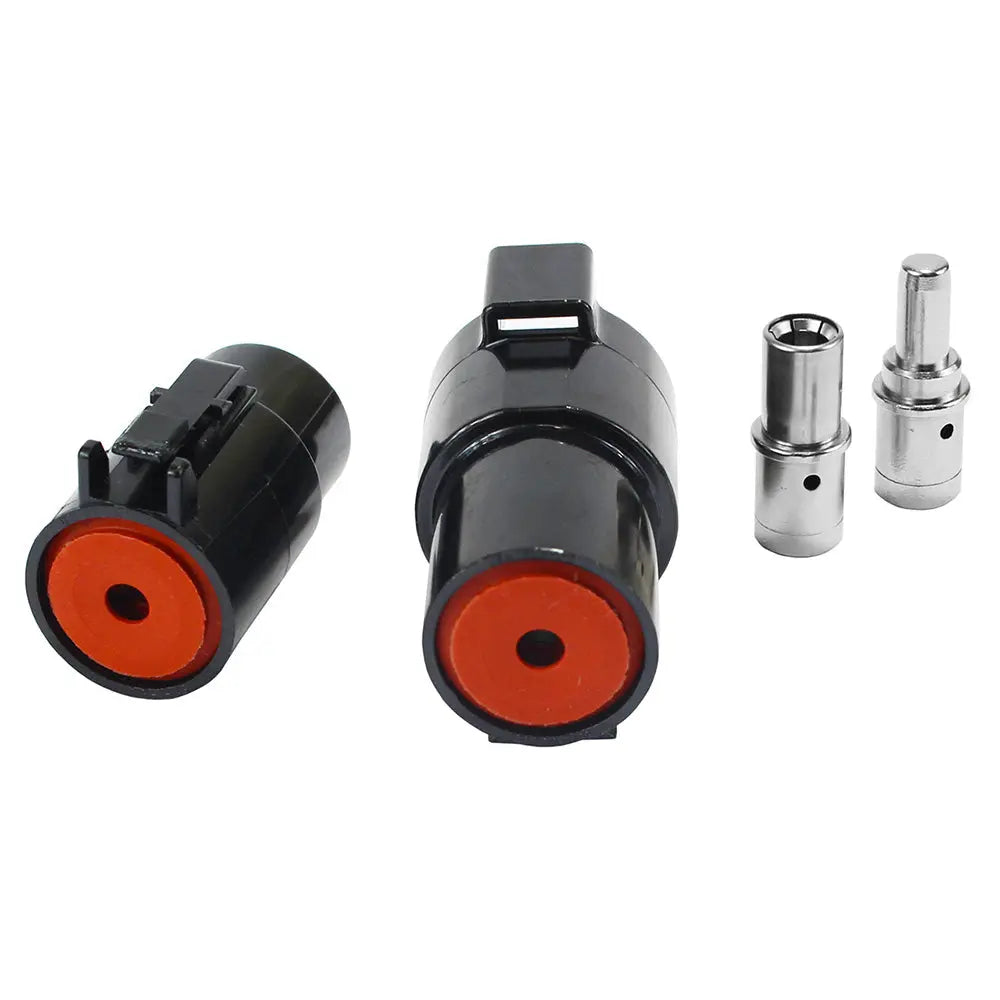

Pacer Deutsch 6 AWG DTHD Power Plug and Receptacle with Pin and Socket

Deutsch 6 AWG DTHD Power Plug Receptacle with Pin Socket

DTHD power plugs and receptacles are single connectors for heavy-duty applications. Easy to install, environmentally sealed, and compact they are a simple, field-serviceable alternative to a splice. Contact a Pacer expert with any questions that you may have.

Features:

• Environmentally sealed disconnectable power wire splicing
• 60-100 Amps at 125C
• Easy to install
• Field serviceable

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Redundant Silicone Seals
• Contacts are hand-insertable

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV

Specifications:

• Kit Contents: (1) DTHD Plug, (1) Size 4 Socket, (1) DTHD Receptacle, (1) Size 4 Pin, (2) Reducer Crimp Sleeves for 10 or 8 AWG
• Deutsch Series: DTHD
• Wire Range: 6 AWG
• Connector Types: Plugs Receptacles

The Pacer Deutsch DTHD Series 6 AWG Power Plug and Receptacle offer a reliable solution for heavy-duty electrical connections. Designed for wire-to-wire applications, these environmentally sealed connectors provide field-proven durability and rugged quality suitable for demanding environments. The kit includes a power plug, receptacle, and accessories necessary for secure and efficient installation, making it an excellent choice for industrial and commercial use. Made with redundant silicone seals and hand-insertable contacts, the connectors ensure a tight, secure connection that withstands harsh conditions. They are rated for 60-100 amps at 125°C, offering high current capacity while maintaining safety and performance. These connectors meet IP67 ingress protection standards and comply with EU RoHS/ELV directives, ensuring environmental safety and regulatory compliance. Ease of installation is a key feature, with field-serviceable components that simplify maintenance and replacement. The kit includes a plug, socket, receptacle, pin, and reducer crimp sleeves compatible with 8 or 10 AWG wire sizes, providing flexibility in various wiring configurations. Compact and robust, the Pacer Deutsch DTHD connectors are ideal for applications requiring secure, heavy-duty electrical connections in challenging environments.

Features:

• Environmentally sealed disconnectable power wire splicing

• Rated for 60-100 Amps at 125°C

• Easy to install with field-serviceable components

• Suitable for wire-to-wire applications

• Enclosed connectors offer proven reliability and rugged durability

• Redundant silicone seals for enhanced environmental protection

• Contacts are hand-insertable for secure connection

• Ingress Protection (IP) Level: IP67

• Complies with EU RoHS and ELV standards
