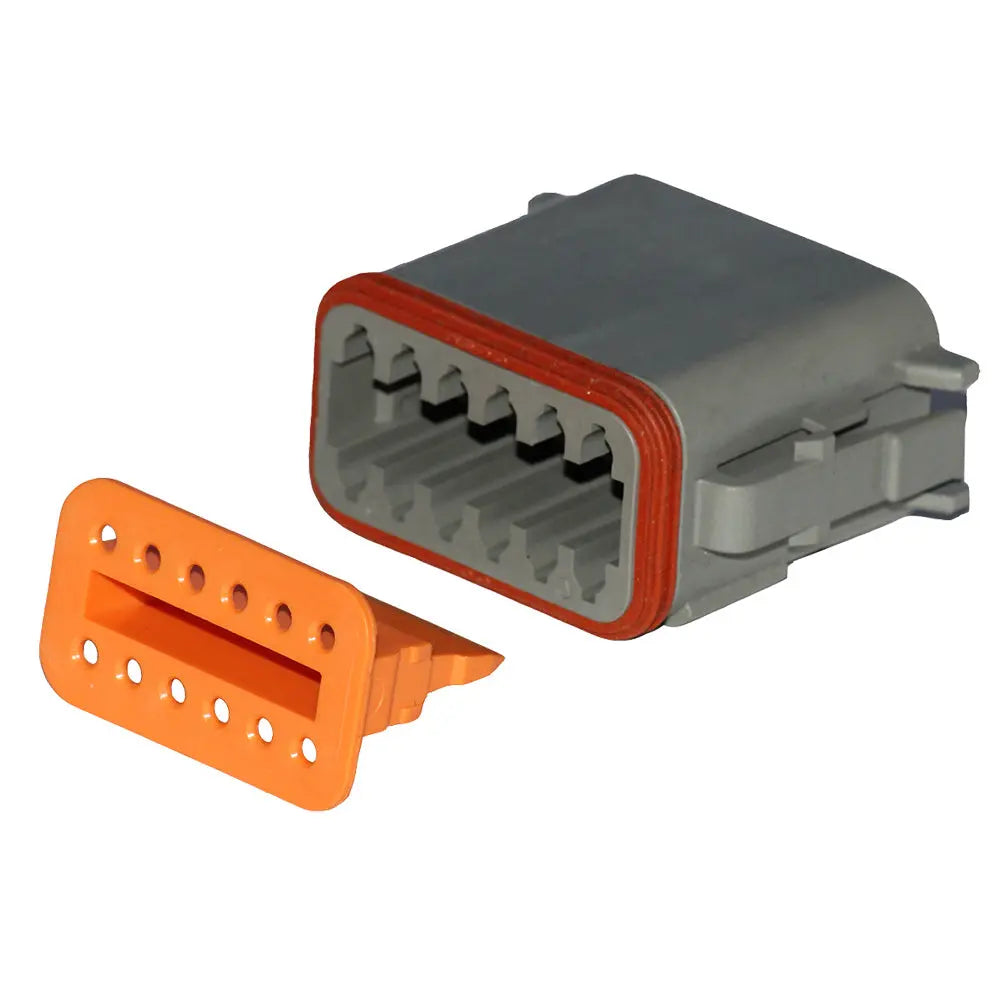

Pacer Deutsch DT Plug & Wedge Lock Kit - 12 Position, 5 Pack for Reliable Waterproof Electrical Connections

Deutsch DT Plug Wedge Lock Kit - 12 Position - 5 Pack

Protecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacers DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.

Features:

• Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Wedgelocks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV
• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 12
• Cavity Style: Plug (socket)
• Package Size: 5
• Housing: Rectangular Plug, Plastic reinforced with glass fiber
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55C to 125C

The Pacer Deutsch DT Plug & Wedge Lock Kit (Part Number: TDT06-12S-5) is an essential solution for creating durable, environmentally sealed electrical connections in demanding environments. Designed specifically for wire-to-wire applications, this 12-position kit includes five housing units and wedge locks, providing a reliable connection point for 20-14 AWG wire sizes. The plug-style cavities ensure secure contact alignment and easy connection or disconnection, making it ideal for field use where quick and dependable assembly is critical. Crafted from reinforced plastic with glass fiber, the housing withstands harsh conditions, including exposure to moisture, shock, and vibration, thanks to its IP67 ingress protection rating. The durable silicone seals further enhance waterproofing, ensuring dependable performance in challenging environments. These kits are compliant with EU RoHS and ELV standards and are recognized under UL-94 flame rating standards, demonstrating their safety and environmental compliance. The contacts are hand-insertable and removable, facilitating maintenance and system modifications without sacrificing reliability. Operating across a temperature range from -55°C to 125°C, the Deutsch DT Plug & Wedge Lock Kit provides versatility for various industrial and outdoor applications, from vehicle wiring to heavy equipment. Whether used in rugged machinery or enclosed systems, these kits deliver field-proven performance with ease of installation and long-lasting durability.

Features:

• Kits with cavities include housing and wedge lock for secure connections

• Waterproof and vibration-resistant design with IP67 ingress protection

• Redundant silicone seals enhance environmental sealing

• Easy to insert and remove contacts for maintenance

• Constructed from reinforced plastic with glass fiber for durability

• Compatible with 20-14 AWG wire sizes

• Designed for reliable wire-to-wire applications

• Operates effectively across a wide temperature range from -55°C to 125°C

• Meets UL-94 flame retardant standards and EU RoHS/ELV compliance
