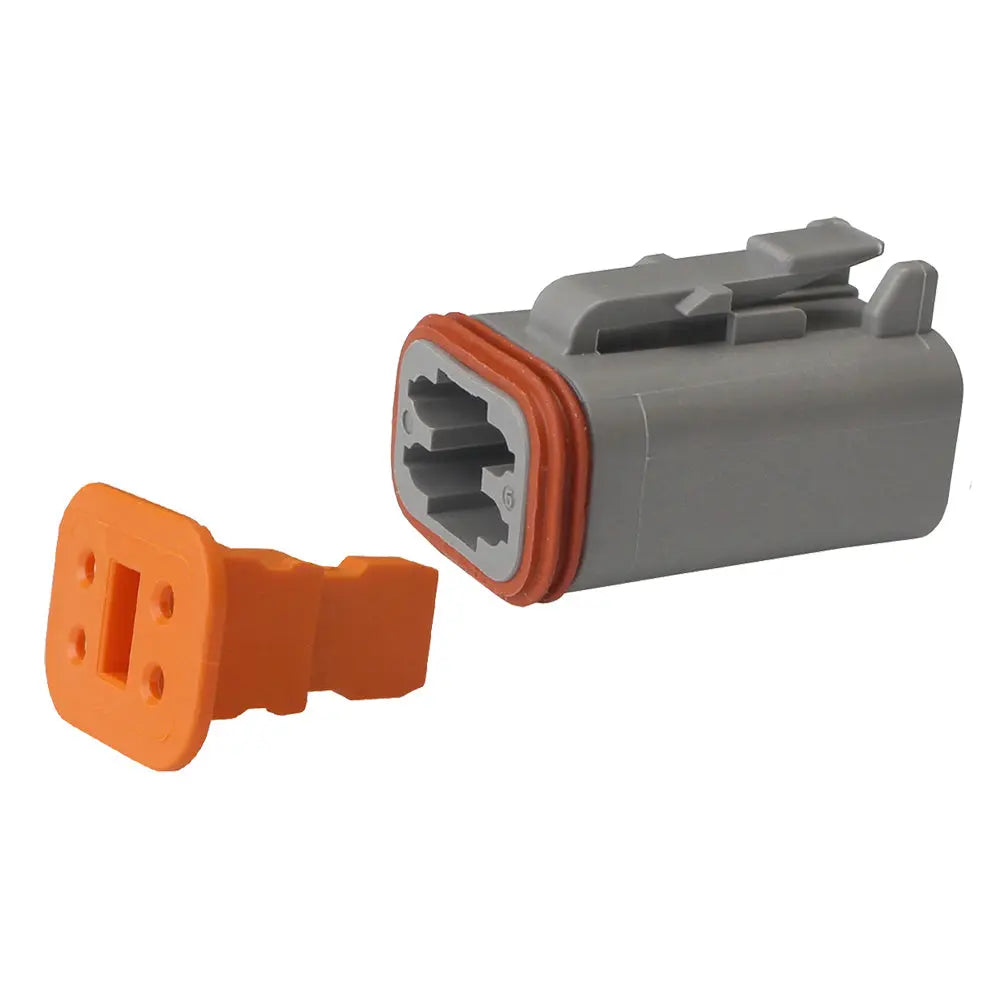

Pacer Deutsch DT Plug & Wedge Lock Kit - 4 Position, 10 Pack for Reliable Waterproof Electrical Connections

Deutsch DT Plug Wedge Lock Kit - 4 Position - 10 Pack

Protecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacers DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.

Features:

• Kits with cavities (2, 3, or 4) include housing (10 pieces) and wedge lock (10 pieces)

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Wedgelocks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV
• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 4
• Cavity Style: Plug (socket)
• Package Size: 10
• Housing: Rectangular Plug, Plastic reinforced with glass fiber
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55C to 125C

The Pacer Deutsch DT Plug & Wedge Lock Kit is designed to provide secure and environmentally sealed electrical connections suitable for a wide range of applications. Featuring a 4-position configuration, this kit includes 10 housings and 10 wedge locks, making it ideal for wire-to-wire connections in demanding environments. The Deutsch DT series connectors are engineered to withstand exposure to water, vibration, and shock, ensuring long-lasting performance in various field conditions. Constructed from durable plastic reinforced with glass fiber, the housings are designed for easy hand-insertion and removal of contacts, facilitating quick assembly and maintenance. The wedge locks guarantee proper contact alignment and retention, while redundant silicone seals deliver IP67 ingress protection, safeguarding connections against dust and water ingress. These connectors are compliant with IP standards, EU RoHS/ELV, and recognized by UL-94, highlighting their safety and environmental standards. Suitable for wire sizes ranging from 20 to 14 AWG and rated for up to 13 amps, the Pacer Deutsch DT kits offer versatility for numerous electrical systems. Operating efficiently across temperatures from -55°C to 125°C, they are a reliable choice for rugged outdoor or industrial applications. Whether used in automotive, aerospace, or heavy machinery, these kits deliver field-proven reliability and rugged quality for critical electrical connections.

Features:

• Kits with cavities include housing and wedge lock for secure connections

• Designed for 20-14 AWG wire applications

• Weatherproof and resistant to vibration and shock

• Redundant silicone seals provide IP67 ingress protection

• Easy to install, connect, and disconnect with hand-insertable contacts

• Housing made from reinforced plastic with glass fiber for durability

• Wedge locks ensure proper contact alignment and retention

• Certified to meet IP standards, RoHS/ELV, and UL-94 safety standards

• Operating temperature range from -55°C to 125°C

• Suitable for wire-to-wire connections in rugged environments
