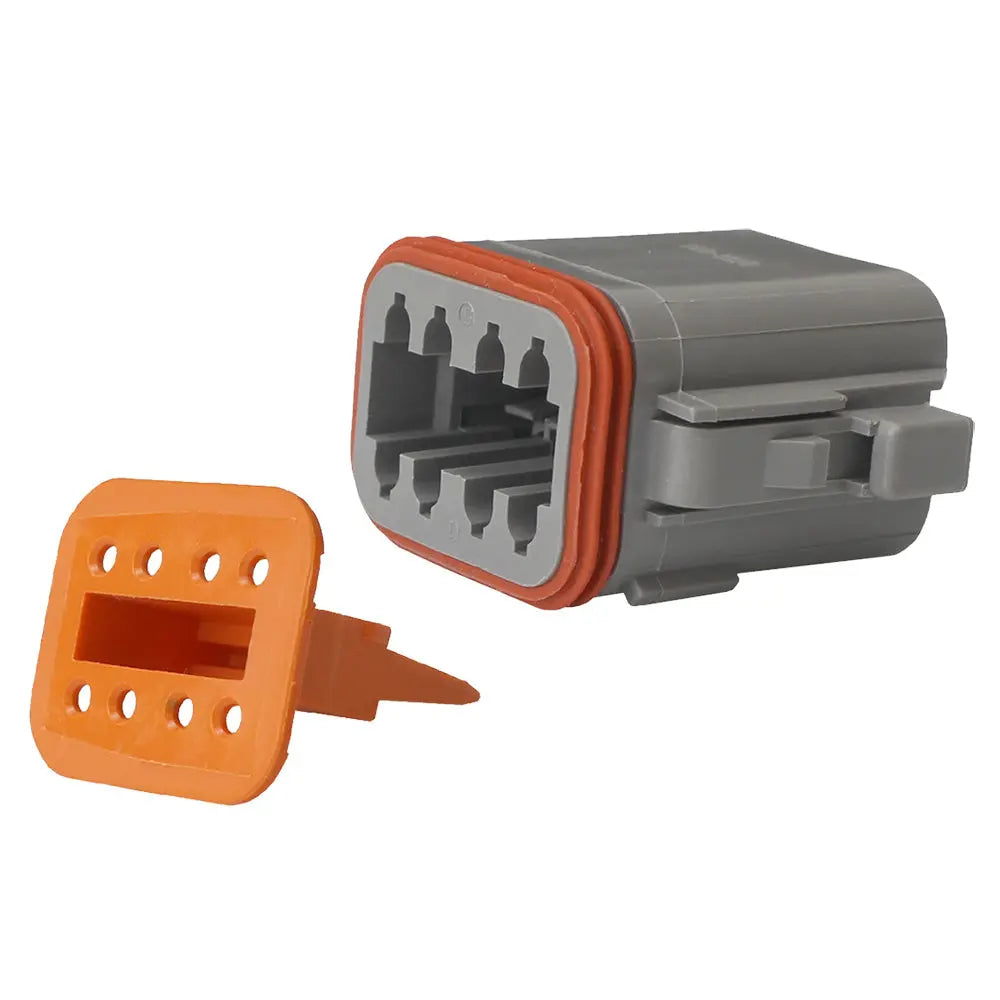

Pacer Deutsch DT Plug & Wedge Lock Kit – 8 Position, 5 Pack for Reliable Waterproof Electrical Connections

Deutsch DT Plug Wedge Lock Kit - 8 Position - 5 Pack

Protecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacers DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.

Features:

• Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Wedgelocks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV
• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 8
• Cavity Style: Plug (socket)
• Package Size: 5
• Housing: Rectangular Plug, Plastic reinforced with glass fiber
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55C to 125C

The Pacer Deutsch DT Plug & Wedge Lock Kit is an essential solution for maintaining secure and environmentally sealed electrical connections in demanding applications. Designed for wire-to-wire connections, this kit features a durable plastic housing reinforced with glass fiber, ensuring longevity and resistance to harsh conditions. The kit includes five housings and wedge locks, providing a versatile setup for 8-cavity configurations that accommodate 20-14 AWG wire sizes. Its design facilitates easy hand-insertion and removal of contacts, making installation and maintenance straightforward and efficient.
The wedgelocks play a crucial role in ensuring contact alignment and retention, preventing accidental disconnections and maintaining reliable electrical performance. Redundant silicone seals protect against water ingress, dust, and vibration, supporting the kit's suitability for outdoor and rugged environments. With an ingress protection rating of IP67, the Deutsch DT Kit guarantees waterproof and dustproof operation, making it ideal for field use in automotive, industrial, and off-road applications.
Compliant with EU RoHS and ELV standards and recognized under UL-94 flammability ratings, this kit meets rigorous safety and environmental regulations. The rectangular plug (socket) style is rated for 13 amps, supporting robust power delivery within the specified temperature range of -55°C to 125°C. Its compact design and reliable sealing make it a preferred choice for professionals seeking durable, high-quality connections that withstand vibration, shock, and exposure to moisture. Whether for new installations or repairs, the Pacer Deutsch DT Plug & Wedge Lock Kit delivers dependable performance and ease of use in demanding environments.

Features:

• Kits with cavities include housing (5 pieces) and wedge lock (5 pieces)

• Designed for 20-14 AWG wire applications

• Weatherproof and vibration-resistant for rugged environments

• Wedgelocks ensure contact alignment and retention

• Redundant silicone seals provide waterproof protection

• Hand-insertable and removable contacts for easy installation

• Ingress Protection (IP) Level: IP67 for waterproof and dustproof performance

• UL-94 recognized flammability rating

• Made with reinforced plastic housing for durability

• Operating temperature range from -55°C to 125°C
