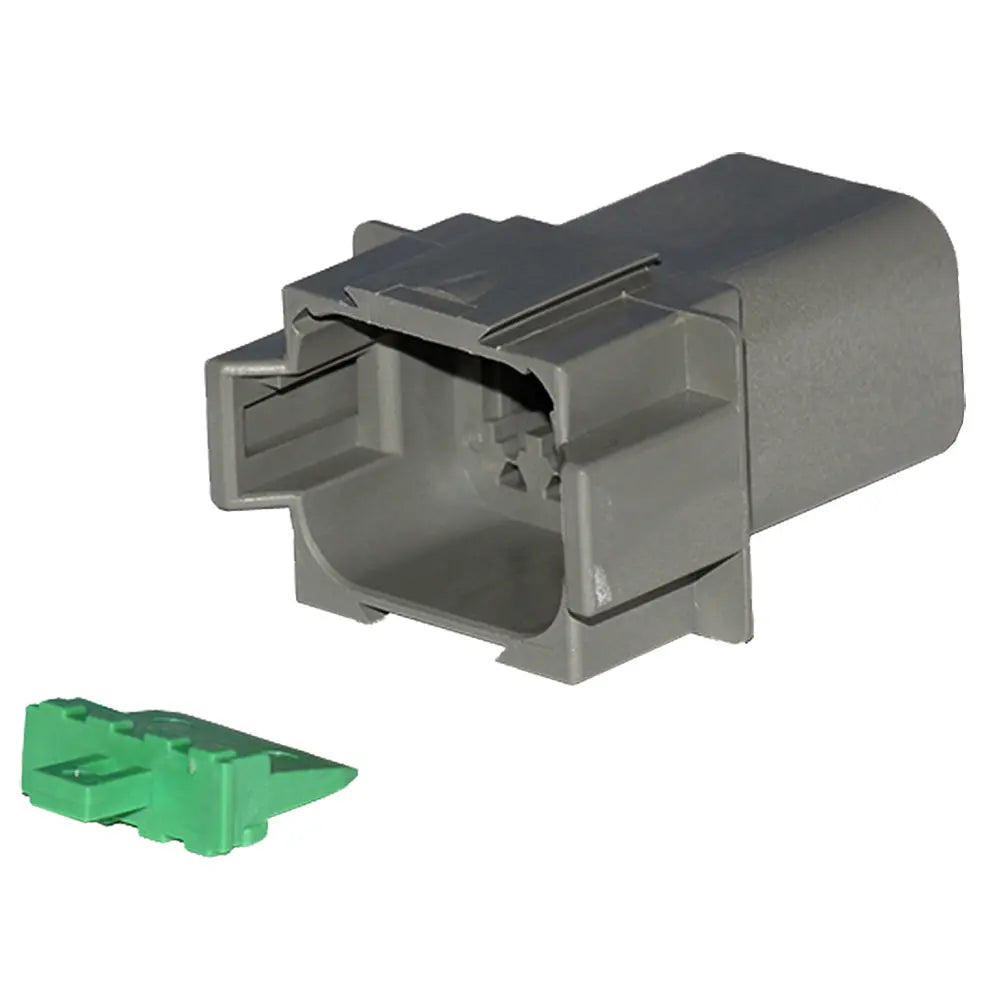

Pacer Deutsch DT Receptacle & Wedge Lock Kit - 8 Position, 5 Pack

Deutsch DT Receptacle Wedge Lock Kit - 8 Position - 5 Pack

Protecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacers DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.

Features:

• Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Wedgelocks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV
• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 8
• Cavity Style: Receptacle (Pin)
• Package Size: 5
• Housing: Rectangular Receptacle, Plastic reinforced with glass fiber
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55C to 125C

Ensure reliable and environmentally sealed electrical connections with the Pacer Deutsch DT Receptacle & Wedge Lock Kit, Part Number TDT04-8P-5. Designed for applications using 20-14 AWG wire sizes, this kit features a rugged construction built to withstand harsh conditions and provide long-lasting performance. The kit includes five housings and five wedge locks, making it ideal for wire-to-wire connections that require secure, vibration-resistant, and waterproof interfaces. The housing is a rectangular, plastic-reinforced with glass fiber, ensuring durability and resistance to mechanical stress. The wedge locks guarantee proper contact alignment and retention, while the redundant silicone seals provide an ingress protection level of IP67, safeguarding against dust and water ingress. These kits are hand-insertable and removable, simplifying installation and maintenance in field environments. Suitable for various rugged applications, the Deutsch DT series connectors are recognized for their reliability and compliance with industry standards such as UL-94 and EU RoHS/ELV. Operating efficiently within temperatures ranging from -55°C to 125°C, these connectors are versatile and dependable for demanding electrical systems.

Features:

• Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)

• Designed for wire-to-wire applications with environmental sealing

• Wedgelocks ensure contact alignment and retention

• Redundant silicone seals provide IP67 waterproof protection

• Hand-insertable and removable contacts for easy installation and maintenance

• Constructed from durable plastic reinforced with glass fiber

• Compatible with 20-14 AWG wire sizes, rated for 13 Amp

• Operating temperature range from -55°C to 125°C

• Compliance with industry standards including UL-94 and RoHS/ELV
