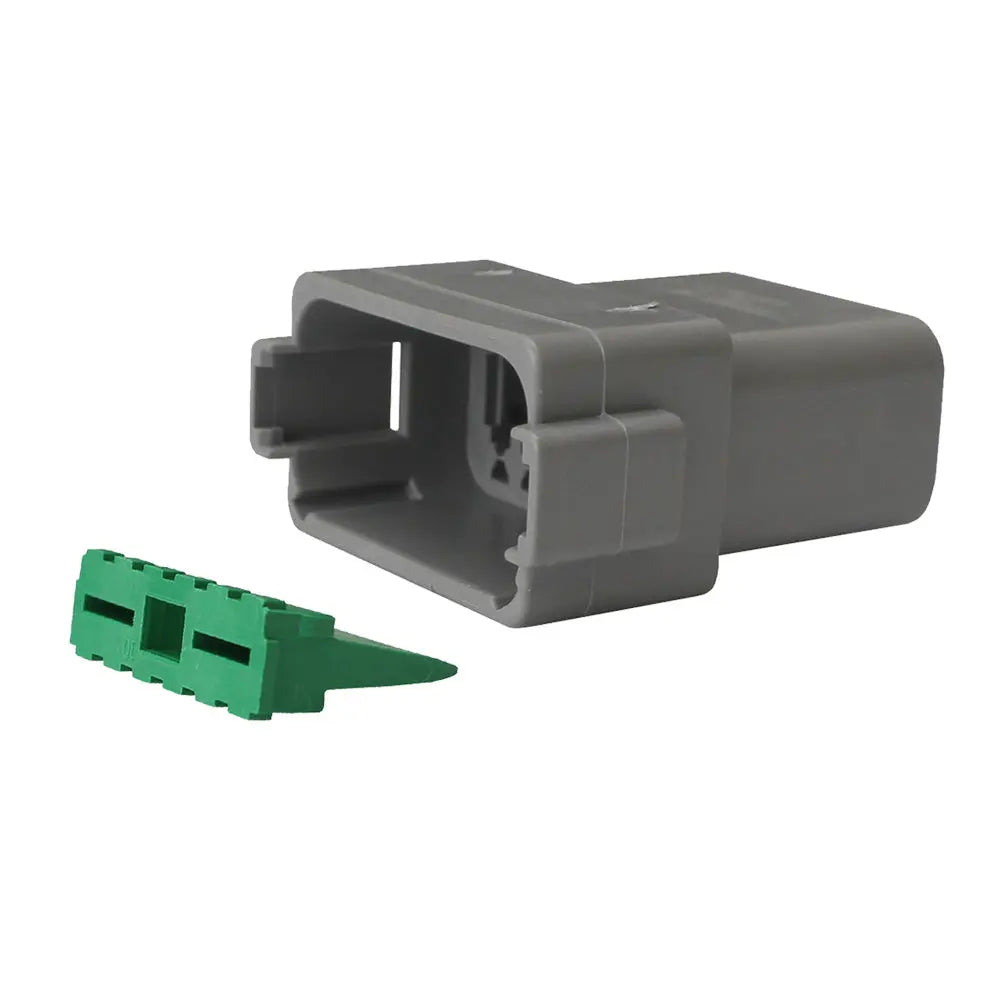

Pacer Deutsch TDT04-12P-5 Receptacle & Wedge Lock Kit - 12 Position, 5-Pack

Deutsch DT Receptacle Wedge Lock Kit - 12 Position - 5 Pack

Protecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacers DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.

Features:

• Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Wedgelocks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV
• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 12
• Cavity Style: Receptacle (Pin)
• Package Size: 5
• Housing: Rectangular Receptacle, Plastic reinforced with glass fiber
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55C to 125C

The Pacer Deutsch TDT04-12P-5 Receptacle & Wedge Lock Kit provides a reliable solution for creating sealed electrical connections in demanding environments. Designed for applications requiring 20-14 AWG wire sizes, this 12-position kit includes five housings and wedge locks, making it ideal for field installations where ease of assembly and durability are critical. The rectangular plastic housing is reinforced with glass fiber, ensuring strength and longevity even under harsh conditions. These connectors are engineered to withstand water, vibration, and shock, providing a dependable electrical connection in various industrial and automotive applications. The wedge locks ensure proper contact alignment and secure retention, while redundant silicone seals offer protection against ingress, meeting the IP67 standard for water and dust resistance. Hand-insertable and removable contacts allow for straightforward installation and maintenance, reducing downtime and labor costs. Compliant with EU RoHS/ELV standards and recognized under UL-94, these connectors meet safety and environmental requirements. Operating effectively across a temperature range from -55°C to 125°C, they are suitable for a wide range of environments. Whether used for wire-to-wire connections or in enclosed systems, the Deutsch DT series connectors deliver rugged, field-proven reliability with easy handling and maintenance.

Features:

• Kits with cavities include housing (5 pieces) and wedge lock (5 pieces)

• Designed for 20-14 AWG wire applications

• Waterproof and resistant to vibration and shock

• Wedge locks ensure contact alignment and retention

• Redundant silicone seals for ingress protection

• Hand-insertable and removable contacts

• Housing is a rectangular receptacle made of reinforced plastic

• Compliant with IP67, EU RoHS/ELV, and UL-94 standards

• Operating temperature range from -55°C to 125°C
