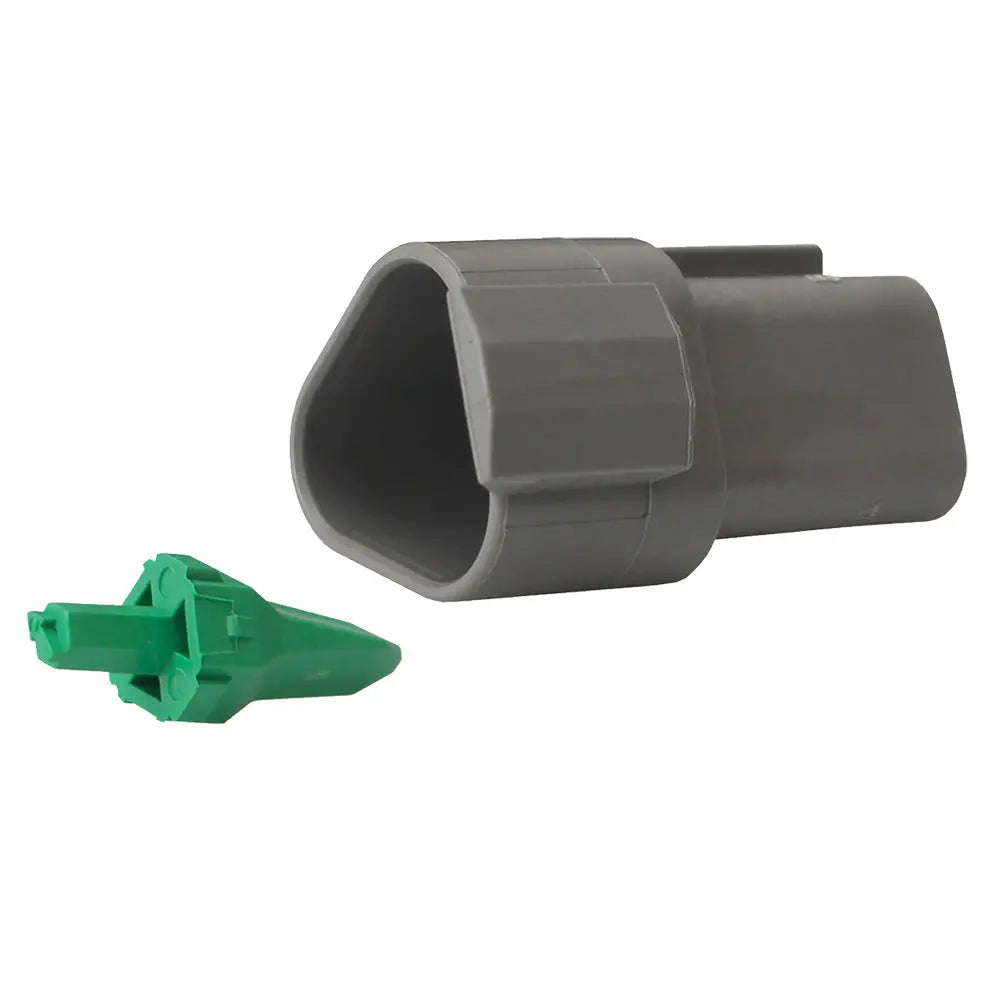

Pacer Deutsch TDT04-3P-10 Receptacle and Wedge Lock Kit – 3 Position, 10 Pack

Deutsch DT Receptacle Wedge Lock Kit - 3 Position - 10 Pack

Protecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacers DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.

Features:

• Kits with cavities (2, 3, or 4) include housing (10 pieces) and wedge lock (10 pieces)

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Wedgelocks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV
• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 3
• Cavity Style: Receptacle (Pin)
• Package Size: 10
• Housing: Rectangular Receptacle, Plastic reinforced with glass fiber
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55C to 125C

The Pacer Deutsch TDT04-3P-10 Receptacle & Wedge Lock Kit offers a reliable solution for secure electrical connections in demanding environments. Designed for wire-to-wire applications, this kit includes 10 housings and wedge locks, providing a robust and environmentally sealed connection that withstands water, vibration, and shock. Built to meet stringent standards, these connectors are ideal for field use where durability and ease of installation are critical. The kit's design features a rectangular, glass fiber-reinforced plastic housing that ensures long-lasting performance under various conditions. The 16 contact size (13 Amp) contacts are hand-insertable and removable, simplifying maintenance and installation. The wedge locks ensure precise contact alignment and retention, while the redundant silicone seals provide ingress protection at IP67 levels, making these connectors suitable for harsh environments. Compliant with EU RoHS/ELV and recognized under UL-94 standards, these connectors meet essential safety and environmental requirements. Operating across a temperature range from -55°C to 125°C, they are versatile for various industrial and automotive applications. Whether used in complex wiring systems or rugged machinery, the Pacer Deutsch Receptacle & Wedge Lock Kit delivers dependable performance and easy field installation for professional electrical work.

Features:

• Kits include housing (10 pieces) and wedge lock (10 pieces)

• Designed for wire-to-wire applications

• Constructed with waterproof and vibration-resistant materials

• Wedgelocks ensure contact alignment and secure retention

• Redundant silicone seals provide IP67 ingress protection

• Hand-insertable and removable contacts for easy maintenance

• Made with a glass fiber-reinforced plastic housing

• Operates reliably within a temperature range of -55°C to 125°C

• Compliance with EU RoHS/ELV and UL-94 standards
