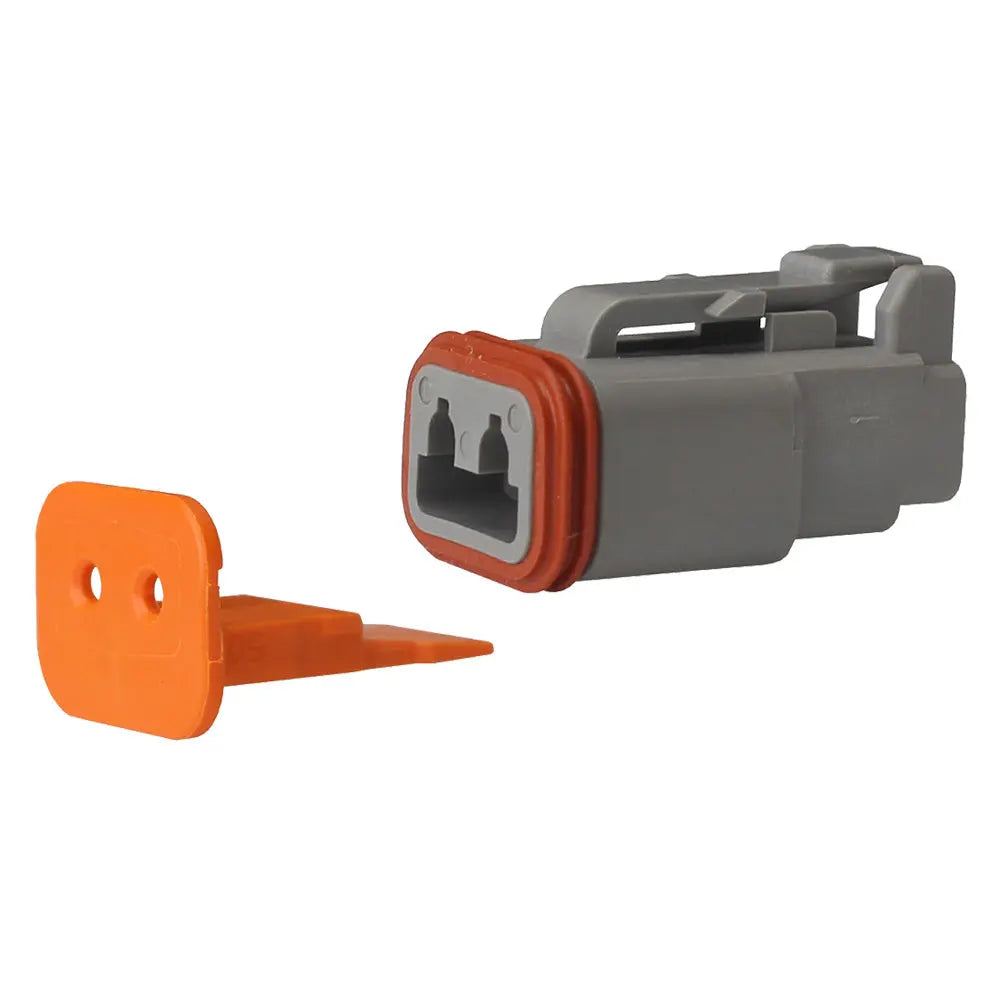

Pacer Deutsch TDT06-2S-10 Wedge Lock Kit for 20-14 AWG Applications, 2-Position, 10 Pack

Deutsch DT Plug Wedge Lock Kit - 2 Position - 10 Pack

Protecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacers DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.

Features:

• Kits with cavities (2, 3, or 4) include housing (10 pieces) and wedge lock (10 pieces)

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Wedgelocks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV
• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 2
• Cavity Style: Plug (socket)
• Package Size: 10
• Housing: Rectangular Plug, Plastic reinforced with glass fiber
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55C to 125C

The Pacer Deutsch TDT06-2S-10 Wedge Lock Kit is an essential solution for creating reliable, waterproof electrical connections in demanding environments. Designed specifically for wire-to-wire applications, this kit features durable housing and wedge locks that ensure secure contact alignment and retention, even under vibration or shock. Ideal for field use, these environmentally sealed connectors are built to withstand harsh conditions, offering long-lasting performance. The kit includes ten rectangular plastic housings reinforced with glass fiber, along with wedge locks to facilitate quick and secure connections. Please note that pins and sockets are sold separately, allowing users to customize their configurations based on specific project needs. The TDT06-2S-10 kit supports wire sizes ranging from 20 to 14 AWG and is rated for 13 amps, making it suitable for a variety of electrical applications requiring a robust and sealed connection. The design incorporates redundant silicone seals to ensure ingress protection at IP67 level, making these connectors resistant to water, dust, and other environmental factors. Operating temperatures range from -55°C to 125°C, providing versatility across different climates and operational conditions. These connectors comply with EU RoHS and ELV standards and are recognized under UL-94 flame rating, confirming their safety and environmental compliance. Whether used in automotive, industrial, or outdoor electrical systems, the Pacer Deutsch Wedge Lock Kit offers field-proven reliability with easy installation and removal, ensuring a secure and maintenance-friendly connection every time.

Features:

• Includes 10 housings and wedge locks for 2-position configurations

• Designed for wire-to-wire applications with 20-14 AWG wire sizes

• Durable rectangular plastic housing reinforced with glass fiber

• Wedge locks ensure proper contact alignment and retention

• Redundant silicone seals provide IP67 ingress protection

• Hand-insertable and removable contacts for ease of use

• Rated for 13 amps with operating temperatures from -55°C to 125°C

• Compliant with EU RoHS/ELV standards and UL-94 flame rating

• Weatherproof and vibration-resistant for demanding environments
