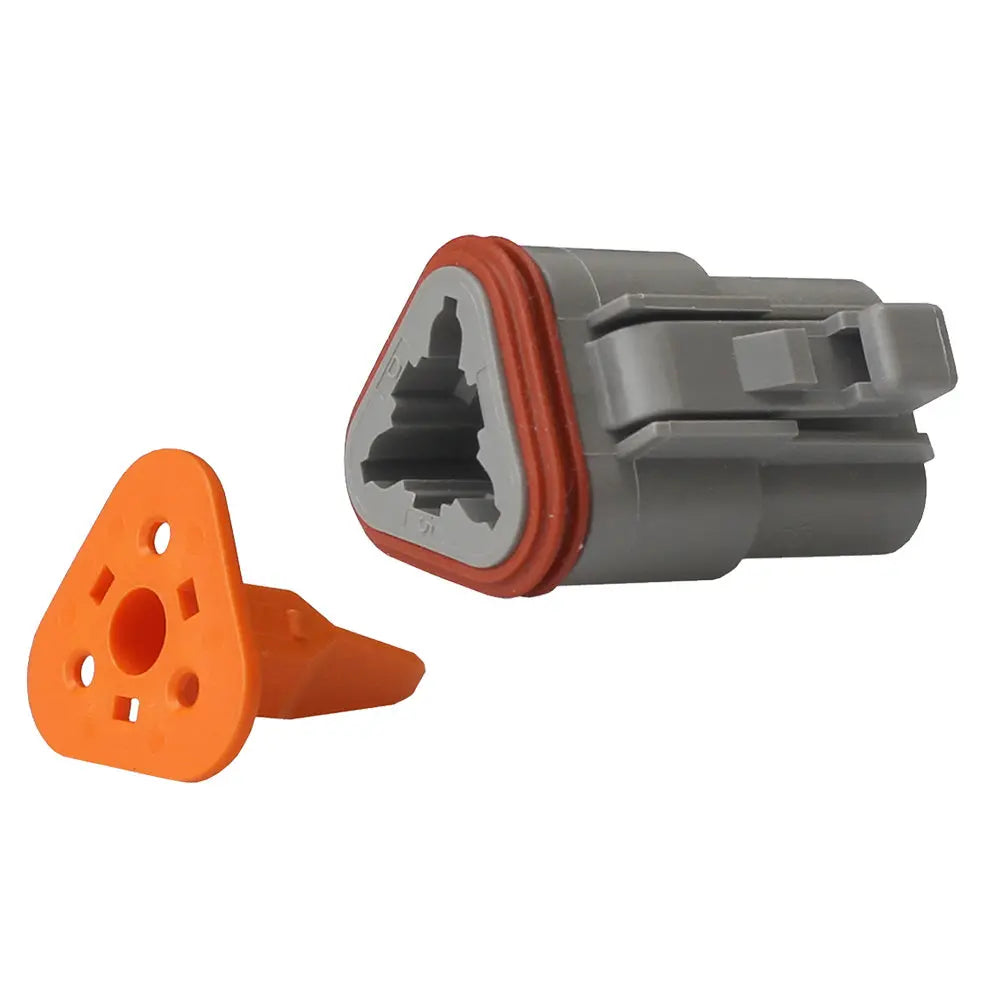

Pacer Deutsch TDT06-3S-10 Wedge Lock Kit – 3 Position Waterproof Electrical Connector Set

Deutsch DT Plug Wedge Lock Kit - 3 Position - 10 Pack

Protecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacers DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.

Features:

• Kits with cavities (2, 3, or 4) include housing (10 pieces) and wedge lock (10 pieces)

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Wedgelocks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV
• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 3
• Cavity Style: Plug (socket)
• Package Size: 10
• Housing: Rectangular Plug, Plastic reinforced with glass fiber
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55C to 125C

The Pacer Deutsch TDT06-3S-10 Wedge Lock Kit is a reliable solution for creating sealed electrical connections in challenging environments. Designed for 20-14 AWG wire applications, this kit includes 10 housing units with three cavities each, along with wedge locks to ensure secure contact retention. The rectangular plastic housings are reinforced with glass fiber for enhanced durability and are engineered to withstand harsh conditions, making them ideal for field use. The wedge locks facilitate proper contact alignment and easy connection and disconnection, providing a dependable interface for wire-to-wire applications. With redundant silicone seals, this connector set offers excellent waterproofing and resistance to vibration and shock, meeting IP67 ingress protection standards for environmental sealing. The kit is compliant with EU RoHS and ELV directives and is recognized under UL-94 standards for safety. Operating across a temperature range of -55°C to 125°C, these connectors are suitable for a broad spectrum of industrial and automotive applications. Their design promotes quick installation and reliable performance in demanding settings, ensuring long-term electrical integrity without compromising ease of use. Whether used in rugged vehicles or complex machinery, the Deutsch TDT06-3S-10 kit provides a robust, sealed connection solution that meets rigorous standards for quality and durability.

Features:

• Kits with cavities include housing (10 pieces) and wedge lock (10 pieces)

• Housing: rectangular plug made of plastic reinforced with glass fiber

• Wedge locks ensure contact alignment and retention

• Redundant silicone seals provide waterproofing and environmental protection

• Contacts are hand-insertable and removable for easy maintenance

• Ingress Protection (IP) Level: IP67 for environmental sealing

• Compliant with EU RoHS and ELV directives

• UL-94 recognized for safety and flame resistance

• Designed for 20-14 AWG wire sizes

• Operating temperature range from -55°C to 125°C
