Pacer DT Deutsch Plug Repair Kit TDT06F-3RS for 14-18 AWG Wires, 3-Position

DT Deutsch Plug Repair Kit - 14-18 AWG (3 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 3
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55C to 125C

Contents:

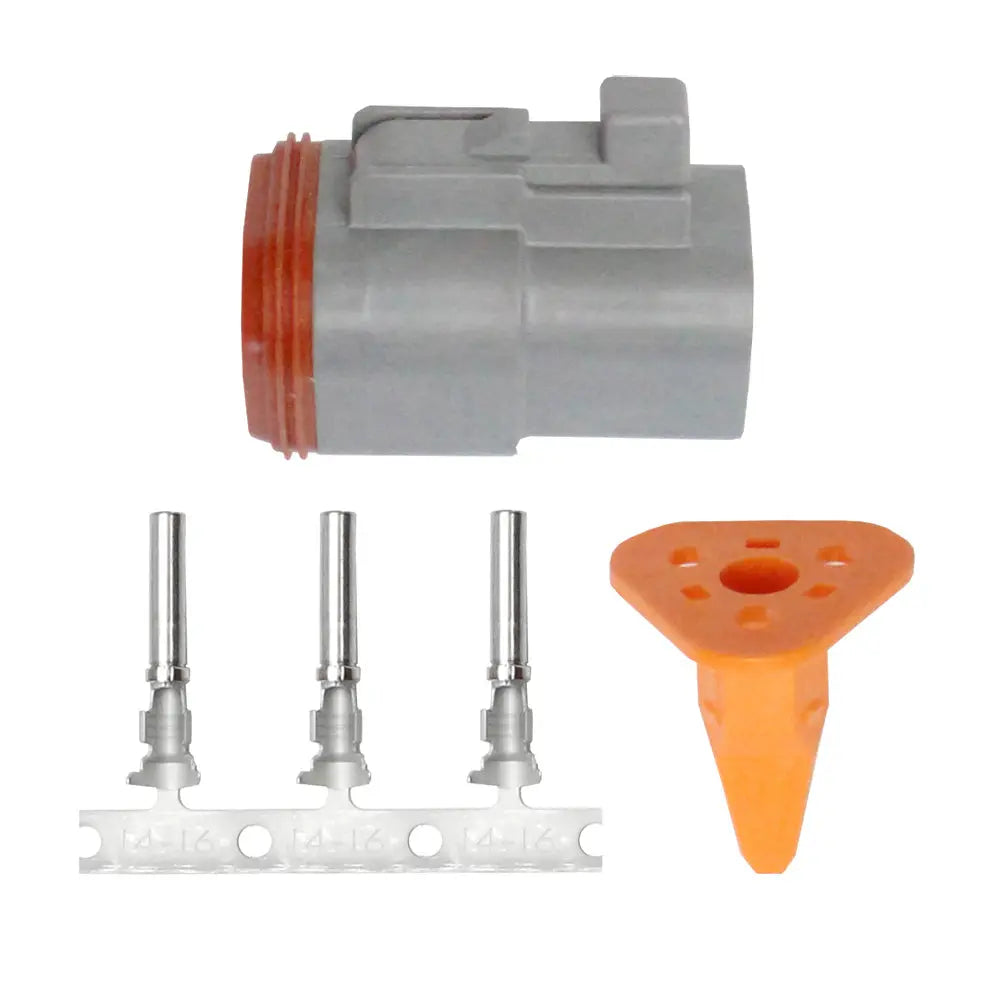

• (1) 3 pos. plug
• (1) 3 pos. wedge lock
• (4) sockets
• (1) cavity plug

The Pacer DT Deutsch Plug Repair Kit TDT06F-3RS is designed for reliable electrical connections in wire-to-wire applications, suitable for use with 14-18 AWG wires. This kit includes all necessary parts to assemble a robust connector, such as a three-position plug, four sockets, wedge lock, and cavity plug, ensuring a complete solution for field repairs or custom wiring. The durable housing is made from glass fiber-reinforced plastic, providing excellent resistance to harsh environments and mechanical stresses. The design features wedge locks for secure contact retention and redundant silicone seals for protection against moisture and contaminants, meeting IP68 and IP6K9K ingress protection standards. Contacts are hand-insertable and removable, simplifying maintenance and reconfiguration. The connector supports a continuous 13-amp current capacity per contact, suitable for demanding applications requiring high reliability. Operating across a broad temperature range from -55°C to 125°C, this kit ensures stable performance in extreme conditions. Ideal for use in rugged environments, the Pacer DT Deutsch Plug Repair Kit offers a field-proven, rugged solution for electrical wiring needs, backed by compliance with EU RoHS/ELV standards and UL-94 flame resistance requirements.

Features:

• Includes all parts needed for connector assembly

• Supplies one to two extra terminals for versatility

• Cavity plugs seal open circuits to prevent exposure

• Wedge locks ensure contact alignment and retention

• Redundant silicone seals provide environmental protection

• Hand-insertable and removable contacts for ease of maintenance

• Housing made from glass fiber-reinforced plastic for durability

• Supports up to 13 amps per contact with a 14-18 AWG wire range

• Designed for rugged applications with IP68 and IP6K9K compliance

• Operating temperature range from -55°C to 125°C
