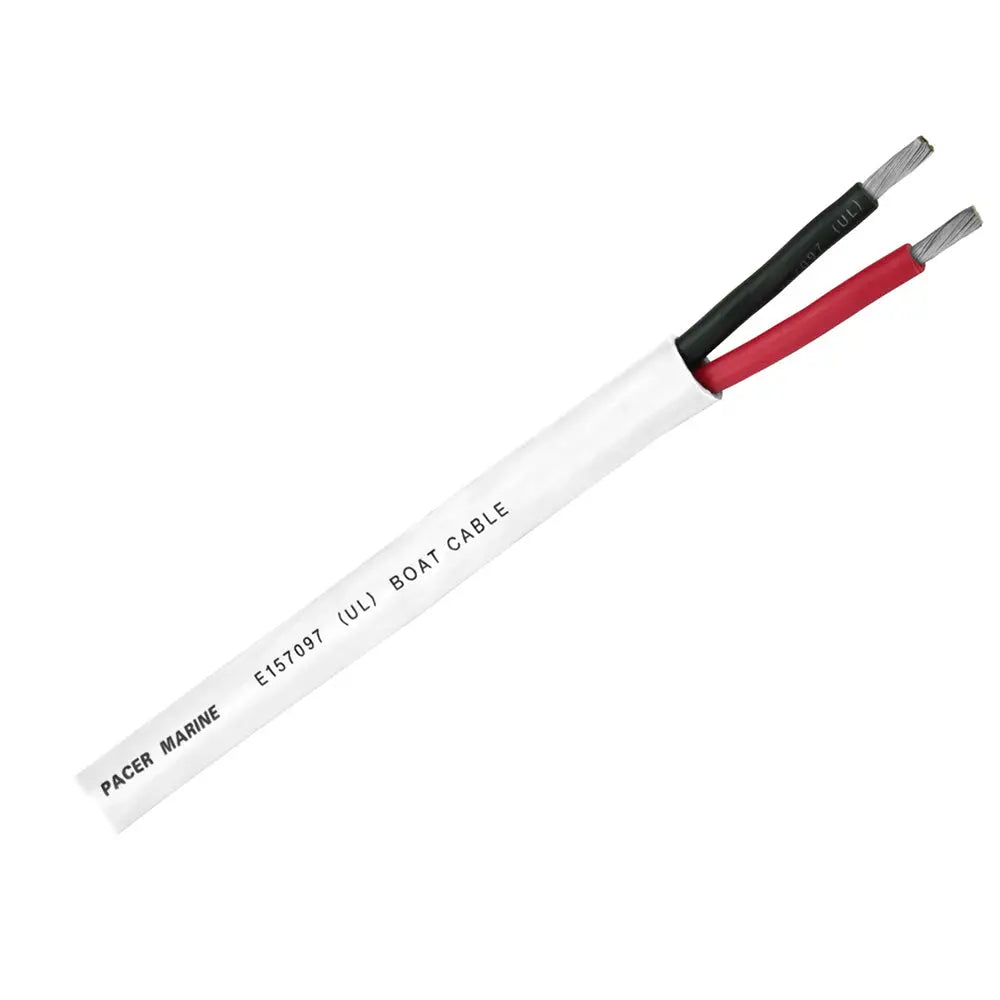

Pacer Duplex 2 Conductor Cable - 14/2 AWG, 500 ft, Marine Grade Red and Black Conductors

Duplex 2 Conductor Cable - 500 - 14/2 AWG - Round Cable - Red, Black

Duplex Boat Cable is a type of multiconductor cable that is used in low-voltage AC applications and DC circuits. Pacer manufactures 14 AWG Duplex boat cables in house in Sarasota FL, USA for the highest quality. It starts with finely stranded, Type III tinned copper conductors. These allow for maximum flexibility and prevention of corrosion. The PVC jacket helps 14 AWG Duplex Boat Cable with flexibility while serving to prevent moisture from building up. How does it achieve this Well, the voids between wires are filled during the extrusion process. This leaves no room for moisture or air to build up. As an added bonus, a talcum powder coating is applied to the interior wires. This coating allows the outer jacket to be removed easily. Just another reason 14 AWG Duplex boat cable is perfect for marine usage.

Features:

• 14 AWG duplex boat cable
• 500 ft. of cable
• No. of Conductors: 2
• Stranded, tinned copper conductors
• Annealed Finely Stranded Tinned Copper ASTM B172 Class K
• Built for durability, flexibility, and longevity in the harshest marine environments
• So flexible that you can tie it into a knot without compromising any of its qualities
• Proprietary insulation ensures the highest level of protection available
• Ease of installation and the longevity of its design have helped solidify this boat cable as the choice of boating professionals

Specifications:

• Conductor Colors: Black Red
• Conductor Stranding: 41/0.0100
• Jacket Color: White
• Jacket Thickness (inch): 2 conductors @ 0.035
• Nom. Cable O.D.(inch): 2 conductors @ 0.225 x 0.370

Characteristics:

• Conductor: Annealed Fine Stranded Tinned Copper
• Insulation: -20 C to 105 C Flexible, Color Coded PVC
• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil
• Voltage Rating: 600 V
• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications:

• Two conductor boat cable is a durable product for use in DC circuits as well as low voltage AC applications

Compliances:

• UL Standard 1426
• RoHS Compliant
• ABYC: E-11.14
• Coast Guard: 33 CFR part 183
• UL compliant

The Pacer WR14/2DC-500 duplex boat cable is engineered for reliable low-voltage AC and DC marine applications. Crafted in Sarasota, FL, this 14 AWG cable features finely stranded, tinned copper conductors that ensure maximum flexibility and resistance to corrosion. The durable PVC jacket offers excellent flexibility and moisture resistance, with voids filled during extrusion to prevent water ingress. A proprietary talcum powder coating on the interior wires allows for easy jacket removal, making installation and maintenance straightforward. Designed to withstand harsh marine environments, this cable maintains integrity even when tied into knots, thanks to its high flexibility. Its insulation system provides optimal protection against moisture, chemicals, and abrasion, ensuring long-lasting performance in demanding conditions.

Features:

• 14 AWG duplex boat cable designed for marine use

• 500 feet length for extended installations

• Contains two conductors with color coding: red and black

• Constructed with stranded, tinned copper conductors for durability

• Flexible and resistant to corrosion, abrasion, and environmental factors

• Proprietary insulation ensures high protection and easy jacket removal

• Temperature rated up to 105°C in dry conditions, suitable for demanding marine environments

• Voltage rating of 600V, suitable for low-voltage applications

• Resistant to acids, alkali, flame, gasoline, oil, and moisture

• Built to meet UL Standard 1426, RoHS, ABYC E-11.14, and Coast Guard regulations
