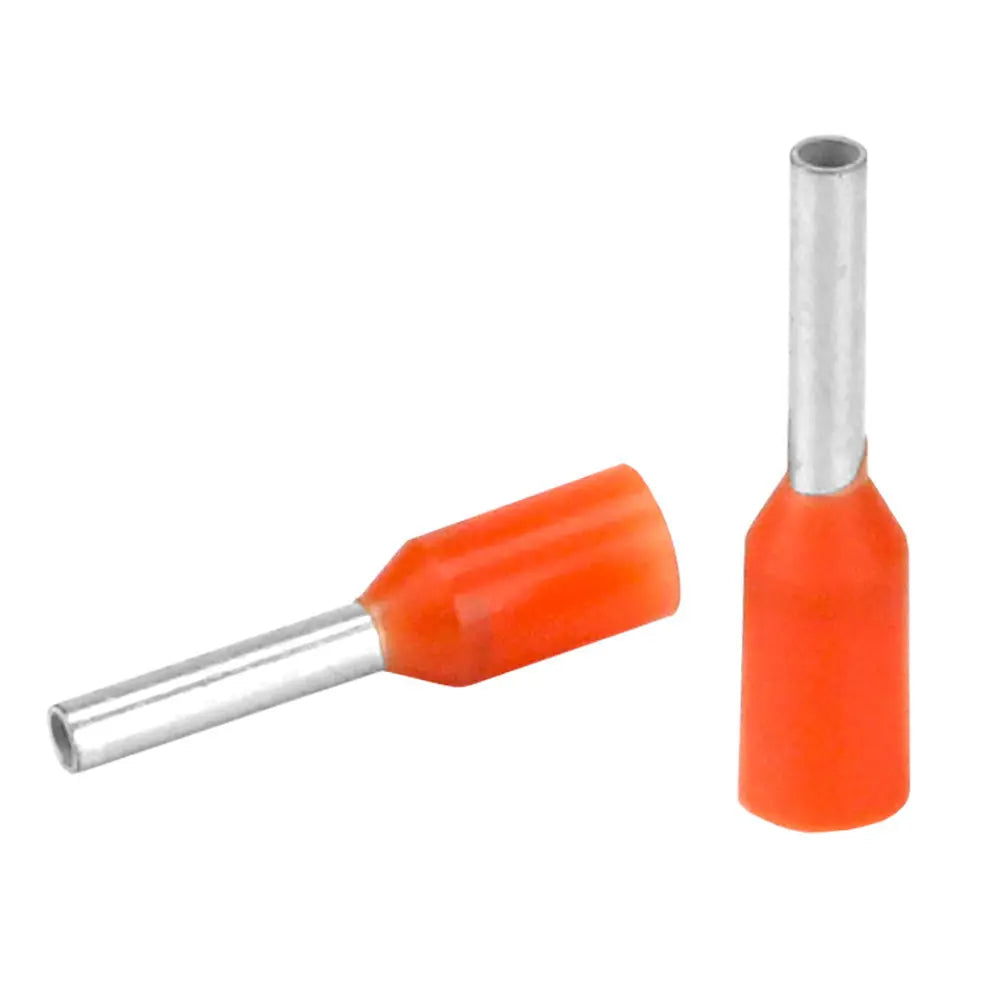

Pacer Orange 20-22 AWG Wire Ferrules, 6mm Length - Pack of 25

Orange 20-22 AWG Wire Ferrule - 6mm Length - 25 Pack

Wire fraying can quickly become a problem when dealing with IEC (European)-style terminal blocks. As the wire frays, the connection becomes weaker, and the problem will need to be addressed. But all that can be prevented. How By utilizing wire ferrules. Wire ferrules are a type of terminal that prevents wire fraying. It covers the stranded wire and creates a solid, connected piece. In a sense, wire ferrules make stranded wire behave like solid wire. This is important, especially when working with IEC terminal blocks.

How are wire ferrules properly used The first step is to strip the wire to the correct length. Now slide the ferrule over the exposed wire. Make sure that the nylon casing butts up to the wire insulation. Once set, crimp using the proper tool. Using the proper tool is important, as, without the proper pressure, the wire may not create a solid connection. Proper crimping pressure and technique are key to ensuring continued performance. Once properly crimped, users can add heat shrink for added protection if they choose.

Features:

• Prevent strand separation while minimizing strand breakage
• Insulated ferrules provide additional electrical insulation
• Increase connection reliability when terminating stranded wire in terminal blocks

Specifications:

• Package Size: 25
• Wire Size (AWG): 20-22
• Insulation Color: Orange
• Ferrule Length: 6mm (0.24 in.)
• Stripping Length: 8mm (0.31 in.)

Proper termination of stranded wire in IEC terminal blocks is essential for maintaining electrical integrity and safety. The Pacer Orange 20-22 AWG Wire Ferrules are designed to prevent strand separation and improve connection reliability. These insulated ferrules effectively cover stranded wires, making them behave like solid wire, which ensures a more secure and consistent connection in various electrical applications. Their bright orange insulation not only provides additional electrical insulation but also enhances visibility for easy identification during installation and maintenance. Using these ferrules can significantly reduce the risk of wire fraying and connection failure over time, making them a reliable choice for professionals and DIY enthusiasts alike. Each ferrule measures 6mm in length and is suitable for wires with a stripping length of approximately 8mm. Proper application involves stripping the wire to the specified length, sliding the ferrule over the exposed strands, and crimping with a compatible tool to ensure a solid, reliable connection. For added protection against environmental factors, heat shrink tubing can be applied after crimping. These ferrules come in a pack of 25, providing ample supply for multiple wiring projects. Whether used in control panels, automation systems, or general electrical installations, Pacer's ferrules help ensure tight, safe, and durable connections, ultimately reducing maintenance needs and improving system longevity.

Features:

• Prevent strand separation while minimizing strand breakage

• Insulated ferrules provide additional electrical insulation

• Increase connection reliability when terminating stranded wire in terminal blocks
