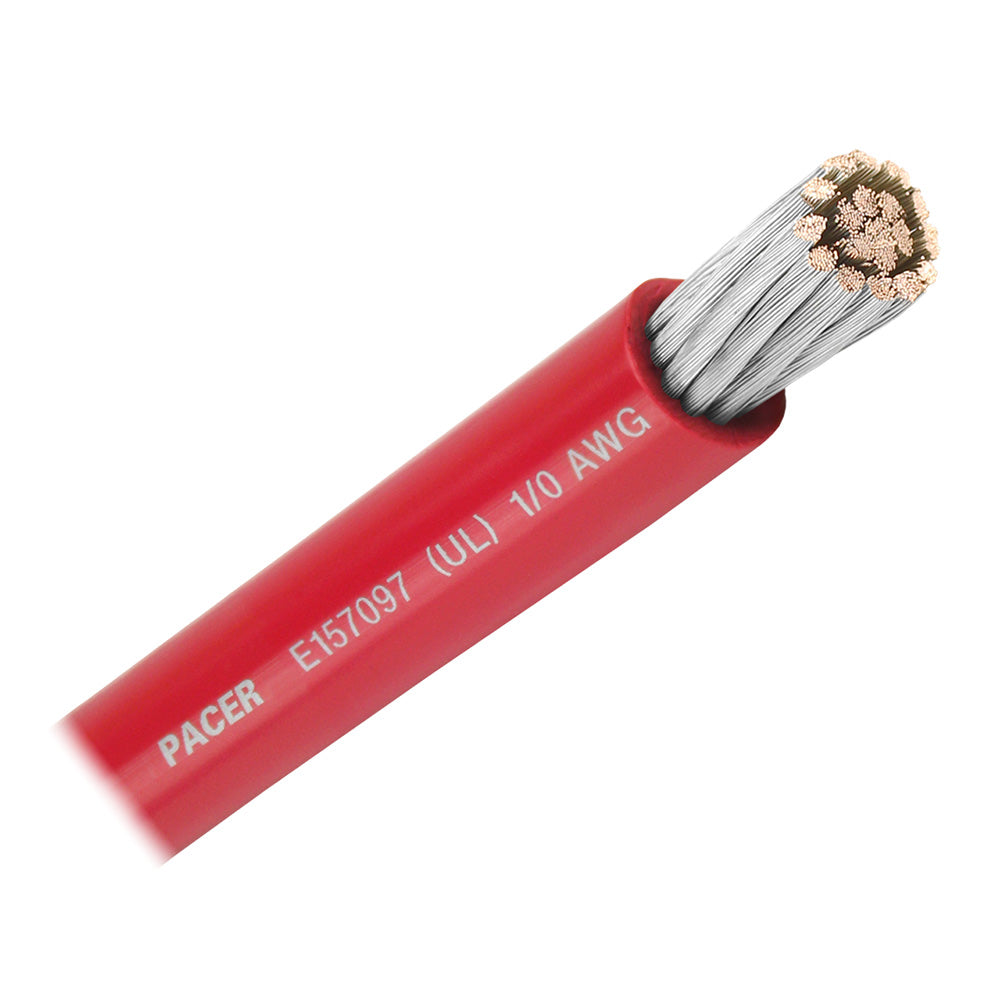

Pacer Red 1/0 AWG Marine Battery Cable – 50 Feet, Heavy-Duty Flexible Tinned Copper Wire

Red 1/0 AWG Battery Cable - 50

Pacers 1/0 AWG Marine Battery Cable is designed to exceed stringent specifications. This UL-approved cable is manufactured in-house in Sarasota, FL, USA, which ensures high quality. Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier. This is achieved by creating a flexible yet tough marine cable.

This 1/0 AWG marine battery cable can handle the toughest environments. This marine battery cable is made from Type III Class K tinned copper. The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible proprietary PVC jacket. These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Applications:

• Connecting battery or generator to a starter, ground, switch, windlass, inverter, or other high-amperage equipment

Characteristics:

• Conductor: Annealed stranded tinned copper ASTM B172 Class K
• Insulation: -20 C to 105 C Flexible, Color-Coded PVC
• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil
• Voltage Rating: 600-V
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Specifications:

• AWG: 1/0
• Color: Red
• Length: 50 ft.
• Conductor Stranding: 19x 56/0.0100
• Nom. Ins. Thickness: 0.080
• Nom. O.D.: 0.600
• Nom. Circular Mils: 106400
• Nom. MM2: 53.9
• Approximate Weight: 450 lb/m

Compliances:

• UL Standard 1426 BC-5W2
• AWM 1232/1284
• MTW
• CSA: TEW
• ABYC: E-11.15
• Coast Guard: 33 CFR part 183 Subpart 1

The Pacer Red 1/0 AWG Marine Battery Cable is engineered to deliver reliable power transfer in demanding marine environments. Crafted in Sarasota, FL, this UL-approved cable meets rigorous standards for durability and safety, making it an ideal choice for high-amperage applications such as connecting batteries, generators, inverters, or other critical marine equipment. Its robust construction ensures longevity and performance even in tight, enclosed spaces with sharp bends where flexibility and toughness are paramount. Designed for ease of installation, the cable features a flexible yet durable proprietary PVC jacket that simplifies routing and handling in confined areas.

Constructed from Type III Class K tinned copper conductors, this marine cable offers excellent resistance to corrosion, extending its service life in harsh conditions. The stranded copper wire is annealed for enhanced flexibility, allowing for easier installation around corners and in tight spaces. The insulation, rated for temperatures up to 105°C, is color-coded red for positive connections and resistant to acids, alkalis, abrasion, flames, gasoline, oil, and moisture. With a voltage rating of 600 volts, this cable is suitable for high-current marine applications and complies with multiple safety standards including UL 1426, CSA TEW, and ABYC E-11.15, ensuring it meets industry requirements for safety and performance.

Measuring 50 feet in length, the cable features a nominal thickness of 0.080 inches and an approximate weight of 450 pounds per mile. Its specifications include a conductor stranding of 19x 56/0.0100, a diameter of 0.600 inches, and a circular mil area of 106,400. The cable’s flexible design, combined with its resistance to environmental factors, makes it suitable for connecting high-current devices in marine, industrial, and utility settings. Whether used for starting engines, grounding, switching, or powering windlasses and inverters, this Pacer battery cable provides dependable power delivery in challenging conditions, ensuring safety and efficiency across all marine electrical systems.

Features:

• Easy to strip, bend, and route for quick installation

• Excellent flexibility with durable, flexible PVC insulation

• Corrosion-resistant tinned copper conductor ensures longevity

• Rated for 600 volts and high temperature up to 105°C

• Resistant to acids, alkalis, abrasion, flames, gasoline, oil, and moisture

• UL-approved and compliant with industry safety standards
