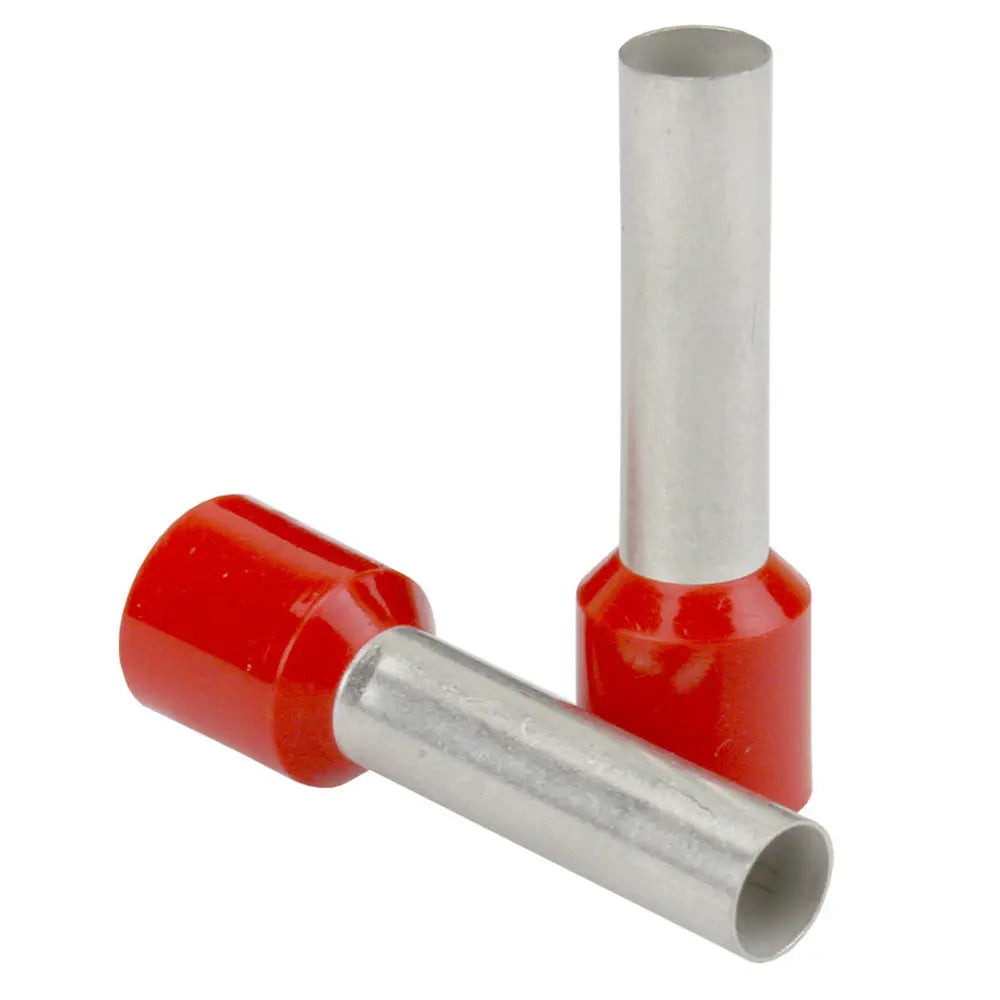

Pacer Red 16 AWG Wire Ferrule - 8mm Length, 25 Pack for Reliable Electrical Connections

Red 16 AWG Wire Ferrule - 8mm Length - 25 Pack

Wire fraying can quickly become a problem when dealing with IEC (European)-style terminal blocks. As the wire frays, the connection becomes weaker, and the problem will need to be addressed. But all that can be prevented. How By utilizing wire ferrules. Wire ferrules are a type of terminal that prevents wire fraying. It covers the stranded wire and creates a solid, connected piece. In a sense, wire ferrules make stranded wire behave like solid wire. This is important, especially when working with IEC terminal blocks.

How are wire ferrules properly used The first step is to strip the wire to the correct length. Now slide the ferrule over the exposed wire. Make sure that the nylon casing butts up to the wire insulation. Once set, crimp using the proper tool. Using the proper tool is important, as, without the proper pressure, the wire may not create a solid connection. Proper crimping pressure and technique are key to ensuring continued performance. Once properly crimped, users can add heat shrink for added protection if they choose.

Features:

• Prevent strand separation while minimizing strand breakage
• Insulated ferrules provide additional electrical insulation
• Increase connection reliability when terminating stranded wire in terminal blocks

Specifications:

• Package Size: 25
• Wire Size (AWG): 16
• Insulation Color: Red
• Ferrule Length: 8mm (0.31 in.)
• Stripping Length: 10mm (0.39 in.)

The Pacer Red 16 AWG Wire Ferrule (Part Number: TFRL16-8MM-25) is designed to improve the safety and reliability of electrical connections involving stranded wires. When working with IEC-style terminal blocks, wire fraying can lead to weak connections and potential failures. Using these ferrules effectively prevents strand separation and reduces the risk of strand breakage, ensuring a solid and consistent connection. The insulated design adds an extra layer of electrical insulation, promoting safer operation and enhanced durability of your wiring setup. This pack includes 25 ferrules, each measuring 8mm in length, suitable for 16-gauge wire with a stripping length of approximately 10mm, making them ideal for various wiring applications.

Proper installation of these ferrules is straightforward. Begin by stripping the wire to the specified length, then slide the ferrule over the exposed strand, ensuring the nylon casing butts up to the wire insulation. Use a crimping tool designed for ferrules to apply the correct pressure, which is critical to achieving a secure and reliable connection. Once crimped, users may optionally add heat shrink tubing for additional protection against environmental factors. These ferrules help maintain a clean, professional finish while significantly enhancing connection integrity, especially when terminating stranded wires in terminal blocks.

Designed by Pacer, this product combines quality and ease of use, making it a valuable addition to any electrical toolkit. Whether for industrial, commercial, or DIY projects, these wire ferrules optimize electrical safety and performance by providing a consistent, insulated connection point. Their compact size and simple application process make them suitable for a wide range of wiring tasks, ensuring your electrical systems operate reliably over time.

Features:

• Prevent strand separation while minimizing strand breakage

• Insulated ferrules provide additional electrical insulation

• Increase connection reliability when terminating stranded wire in terminal blocks
