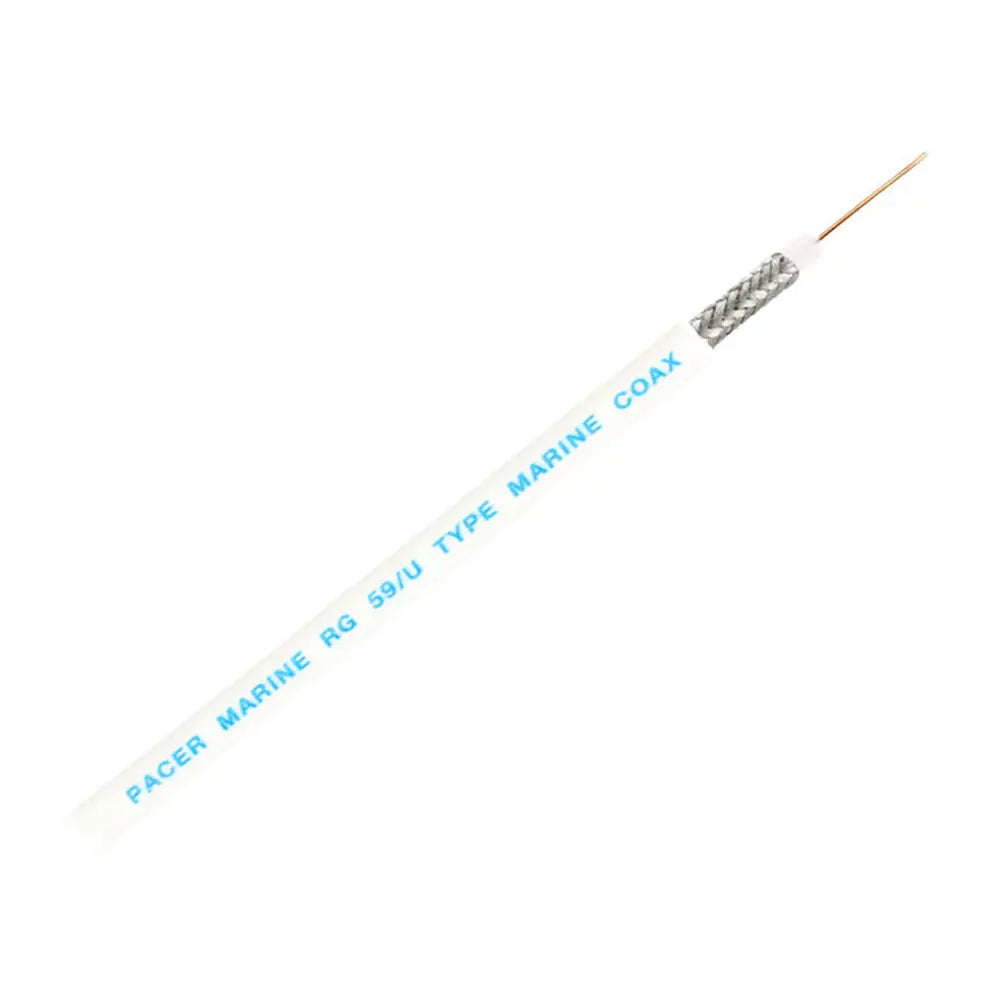

Pacer RG59UW Coax Cable - 150 Feet, White - 75 Ohm Video and RF Signal Transmission

RG59UW Coax Cable - White - 150

Many industries and individuals use RG59U coaxial cable to transmit communication signals. Most notably, audio, video, or network signals. Youll recognize this cable style if youve looked at the back of your cable box or modem. Many people dont even realize that the name of these cables is actually coaxial. Many people call them coax. So, what does coax, or coaxial, mean

The term coaxial indicates the cable possesses two concentric conductors. These conductors are separated by an insulating material. Put simply, the inner conductor is encased in a cylindrical material that insulates it. This insulating material is surrounded by a tubular conducting shield. There may even be another insulating layer after the shield in certain cases. Most frequently, the inner conductor carries the signal-carrying voltage while the shield is kept at ground potential. Why create a wire like this Well, this type of design offers several benefits. Most important is that this design restricts magnetic and electric fields. The fields are restricted to the internal insulating material. This helps to reduce leakage outside the shield.

Why use Coaxial Cable RG59U This type of coaxial cable has a wide range of uses. Most commonly, it is used for low-power video or RF signal connections. One notable characteristic of coaxial cable RG59 is its impedance of 75 ohms. It is also slightly smaller than RG6, making it ideal where limited space is an issue.

Specifications:

• • • Conductor AWG: 22 Solid Copper Clad Steel
    • Insulation Material: Solid Polyethylene
    • Shield Coverage: 95% Tinned Copper Braid 2.6/M
    • Jacket Material/Nom. O.D.: White PVC 0.260
    • Nom. Cap pF/ft: 20.5
    • Velocity of Prop. (% pF/m): 66
    • Nominal Impedance (Ohms): 73

The Pacer RG59UW coax cable is a versatile solution for transmitting audio, video, and RF signals in various applications. Designed with a white PVC jacket, this 150-foot cable provides reliable performance in low-power signal connections, making it ideal for residential and professional setups. The cable features a 75-ohm impedance, suitable for standard video and RF applications, ensuring optimal signal quality and minimal loss.

Constructed with a 22 AWG solid copper clad steel conductor, the RG59UW offers excellent conductivity and durability. The insulation is made from solid polyethylene, providing insulation stability and protection against environmental influences. The cable's shield coverage consists of a 95% tinned copper braid, which effectively reduces electromagnetic interference and maintains signal integrity. Its compact design makes it suitable for spaces with limited room, while the white PVC jacket offers easy identification and blending with surroundings.

This coaxial cable is designed with a focus on performance and ease of installation. The internal structure, with concentric conductors separated by insulating material, restricts magnetic and electric fields, reducing leakage and interference. The velocity of propagation is approximately 66% of the speed of light, ensuring prompt signal transmission. Whether for connecting cable boxes, antennas, or cameras, the Pacer RG59UW provides a dependable connection with high-quality signal transmission and longevity.

Features:

• 150-foot length for extensive installation flexibility

• 75 Ohm impedance ideal for video and RF signals

• Constructed with 22 AWG solid copper clad steel conductor for durability and conductivity

• Solid polyethylene insulation for reliable signal insulation

• 95% tinned copper braid shield reduces electromagnetic interference

• White PVC jacket for easy identification and seamless integration
