SKU:105148

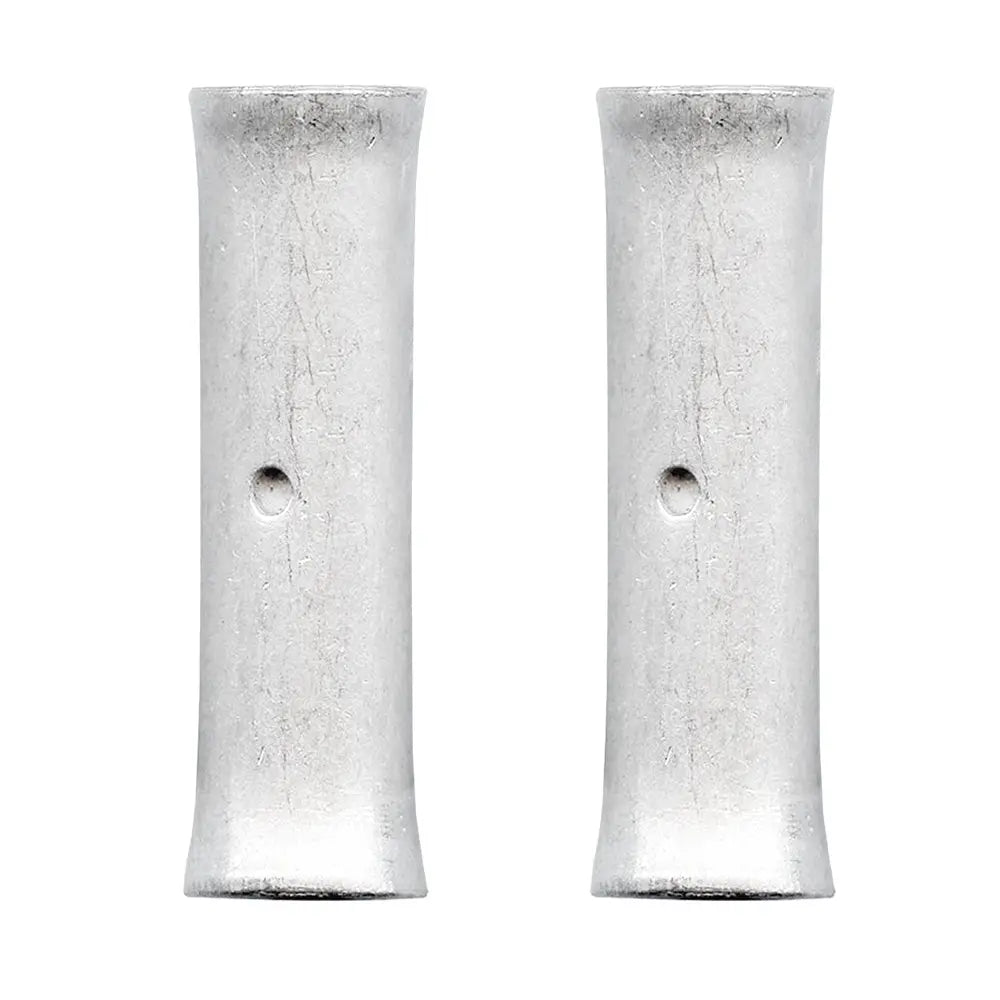

Seamless Butt Splice - 1 AWG - Non-Insulated - 2 Pack
Butt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next, simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and youre done. Pacer would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.
When using seamless tinned butt splices, make sure you have properly stripped your wires to the correct length. When you look inside of the butt splice, you will see an indentation. Make sure your conductors butt up against that. Insert the wire making sure the insulation touches the butt splice. This reduces the risk of a weaker connection. Now, the splice is crimped with the proper tool. This crimp creates a solid connection. Next, repeat the process on the other side and perform the tug test to make sure that the wires dont pull out. This process creates a durable, lasting connection. Butt splices are used for their rapid installation and durability. Other methods of connection just dont offer the same level of protection.
Features:
Specifications:
Compliances:
The Pacer TBS1-2 seamless butt splice is designed to provide quick, reliable, and durable electrical connections for 1 AWG wires. Constructed from high-quality electrolytic tough pitch (ETP) copper, these splices ensure 100% conductivity and long-lasting performance. The seamless, tin-plated design offers corrosion resistance and a clean, professional finish for your wiring projects. Ideal for repair or extension tasks, these non-insulated connectors are engineered for ease of installation and secure connections in various electrical applications. To use, strip the wire to the appropriate length, insert it into the splice until it reaches the internal indentation, and crimp with a proper tool to ensure a solid, consistent connection. The design incorporates an indentation that helps position the wire correctly, reducing the risk of weak or unreliable joints. After crimping, performing a tug test confirms the connection's security, ensuring wires will not pull out during operation. These butt splices are compliant with industry standards, including UL and CSA approvals, and RoHS compliant, making them suitable for a broad range of commercial and residential wiring projects. Their corrosion-resistant tin plating and seamless construction make them an excellent choice where longevity and reliability are paramount. Whether repairing existing wiring or creating new connections, the Pacer seamless butt splice provides a straightforward, maintenance-free solution that guarantees consistent electrical performance over time.
Features:
