SKU:105149

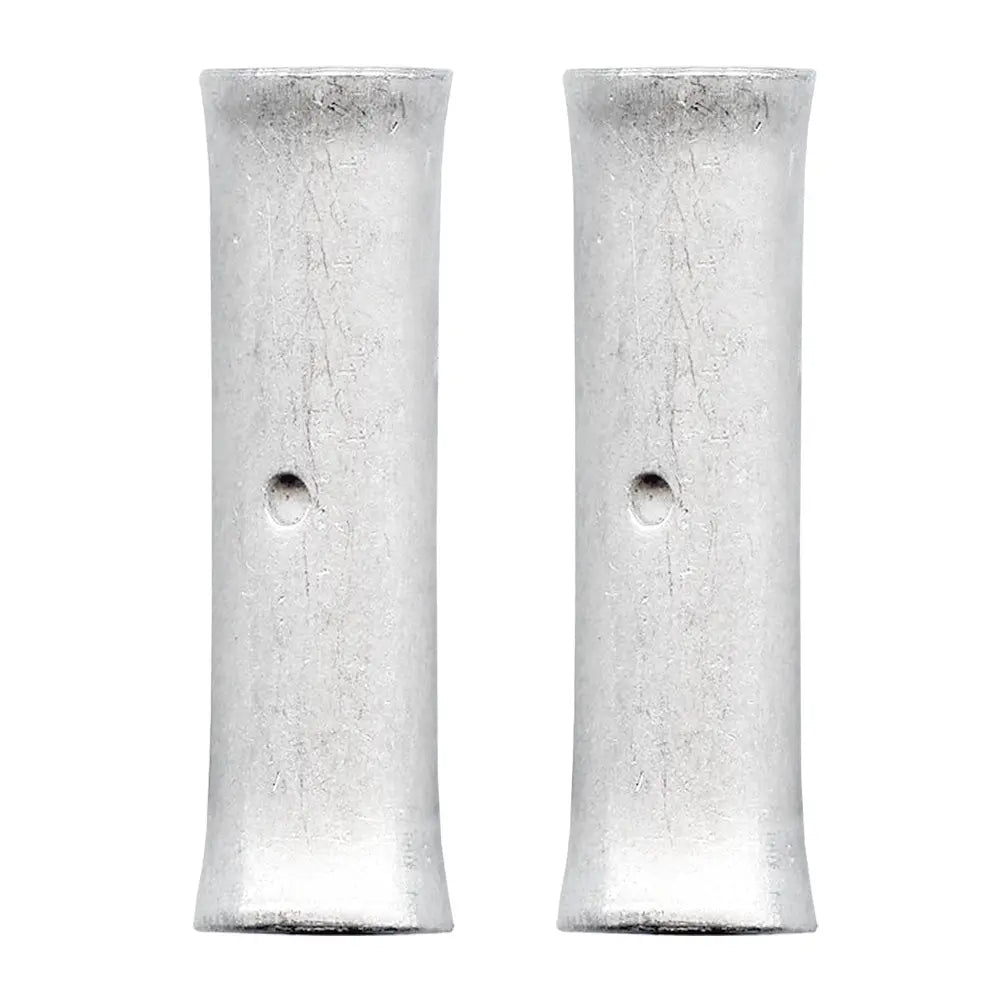

Seamless Butt Splice - 1/0 AWG - Non-Insulated - 2 Pack
Butt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next, simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and youre done. Pacer would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.
When using seamless tinned butt splices, make sure you have properly stripped your wires to the correct length. When you look inside of the butt splice, you will see an indentation. Make sure your conductors butt up against that. Insert the wire making sure the insulation touches the butt splice. This reduces the risk of a weaker connection. Now, the splice is crimped with the proper tool. This crimp creates a solid connection. Next, repeat the process on the other side and perform the tug test to make sure that the wires dont pull out. This process creates a durable, lasting connection. Butt splices are used for their rapid installation and durability. Other methods of connection just dont offer the same level of protection.
Features:
Specifications:
Compliances:
The Pacer TBS1/0-2 seamless butt splice is designed for secure, durable electrical connections on 1/0 AWG wires. Constructed with tin-plated, electrolytic tough pitch copper, this splice offers 100% conductivity and corrosion resistance. Its seamless design ensures a smooth, continuous connection that is ideal for both repair and installation applications, providing long-lasting performance in demanding environments. Its non-insulated construction simplifies installation where insulation is already present or not required, making it suitable for various electrical tasks. Each pack contains two splices, making it a convenient choice for projects requiring multiple connections.
To achieve a solid, reliable connection, strip your wire to the appropriate length, ensuring the conductor reaches the indentation inside the splice. Insert the wire so that the insulation touches the splice to minimize weak points. Use a proper crimping tool to apply consistent pressure, securing the wire in place. Repeat on the second wire and perform a tug test to verify the connection’s integrity. Proper crimping and testing ensure maximum durability, reducing the risk of future faults. These splices are compliant with industry standards, including UL, CSA, and RoHS, guaranteeing safety and environmental compliance. Whether used for automotive, industrial, or residential wiring, the Pacer seamless butt splice offers a quick, reliable solution for creating strong, long-lasting electrical joints. Its robust construction and ease of use make it a dependable choice for professionals and DIY enthusiasts alike.
Note that these splices do not include insulation, so they are best suited for applications where additional insulation is unnecessary or provided separately. The compact size and high-quality materials ensure a secure fit, making this splice a versatile component for various wiring projects.
Features:
