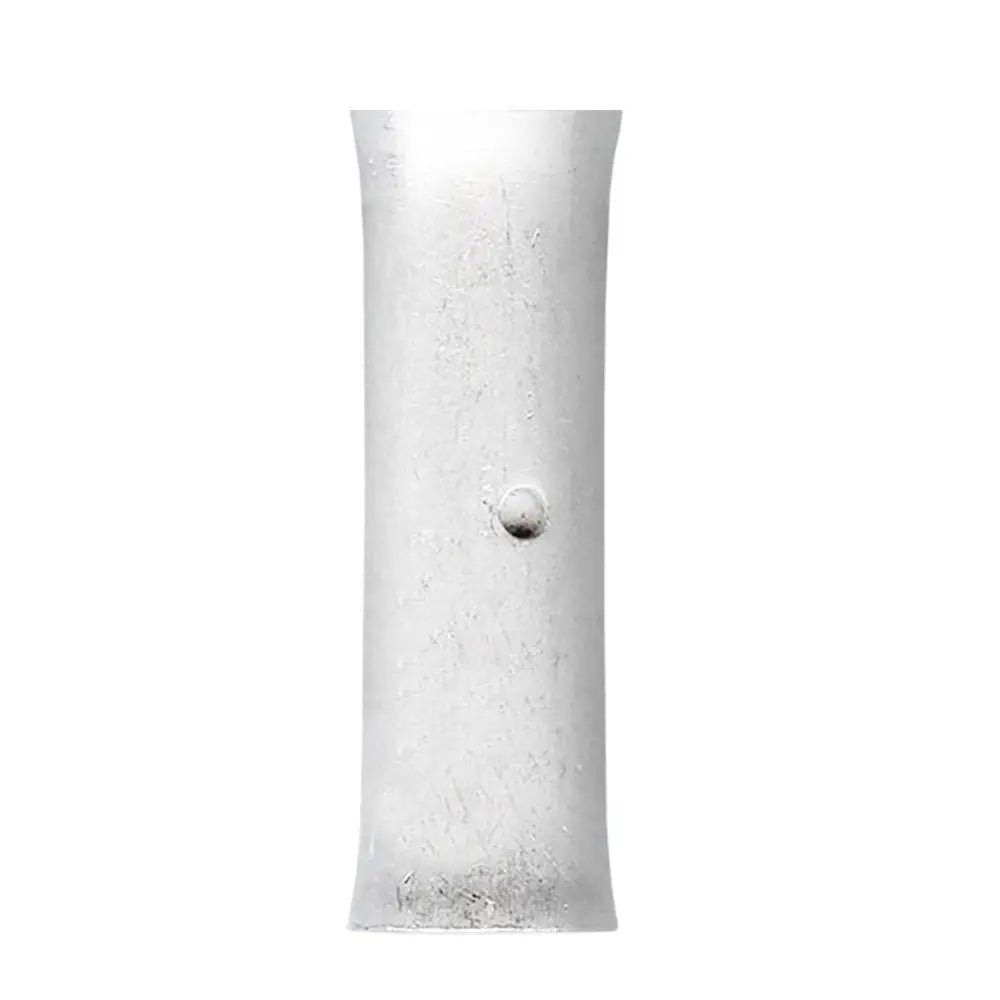

Pacer Seamless Butt Splice for 8 AWG Wire, Non-Insulated, 10 Pack

Seamless Butt Splice - 8 AWG - Non-Insulated - 10 Pack

Butt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next, simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and youre done. Pacer would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.

When using seamless tinned butt splices, make sure you have properly stripped your wires to the correct length. When you look inside of the butt splice, you will see an indentation. Make sure your conductors butt up against that. Insert the wire making sure the insulation touches the butt splice. This reduces the risk of a weaker connection. Now, the splice is crimped with the proper tool. This crimp creates a solid connection. Next, repeat the process on the other side and perform the tug test to make sure that the wires dont pull out. This process creates a durable, lasting connection. Butt splices are used for their rapid installation and durability. Other methods of connection just dont offer the same level of protection.

Features:

• Tin Plated
• Seamless

Specifications:

• Package Size: 10
• Wire AWG: 8
• Length: 0.864
• I.D. (in.): 0.165
• O.D. (in.): 0.295

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant

The Pacer TBS8-10 seamless butt splice is designed for reliable, long-lasting electrical connections in various wiring applications. Crafted with tin-plated, seamless construction, this splice ensures optimal conductivity and corrosion resistance. Its non-insulated design makes it ideal for applications where insulation is not required or is provided by other means. The splice features an internal indentation that guides proper wire placement, ensuring a secure fit. To install, strip your 8 AWG wire to the recommended length, insert the conductor into the splice so it butts up against the indentation, and crimp with a compatible tool to create a solid connection. Performing a tug test after crimping confirms the integrity of the connection, reducing the risk of future issues. This method offers a quick and durable solution for electrical repairs or installations, especially in environments demanding long-term reliability. The package includes 10 splices, providing ample supply for multiple connections in automotive, industrial, or residential wiring projects. The Pacer TBS8-10 splice complies with industry standards, including ASTM-B-152 copper conductivity rated at 100%, UL and CSA approval, and RoHS compliance, ensuring safety and environmental responsibility. Its compact size and sturdy construction make it suitable for tight spaces while maintaining excellent electrical performance. Whether you are repairing existing wiring or creating new circuits, these seamless butt splices provide a dependable, efficient connection method that stands up to demanding conditions.

Features:

• Tin-plated construction for corrosion resistance and optimal conductivity

• Seamless design for uniform, reliable electrical connections
