SKU:105147

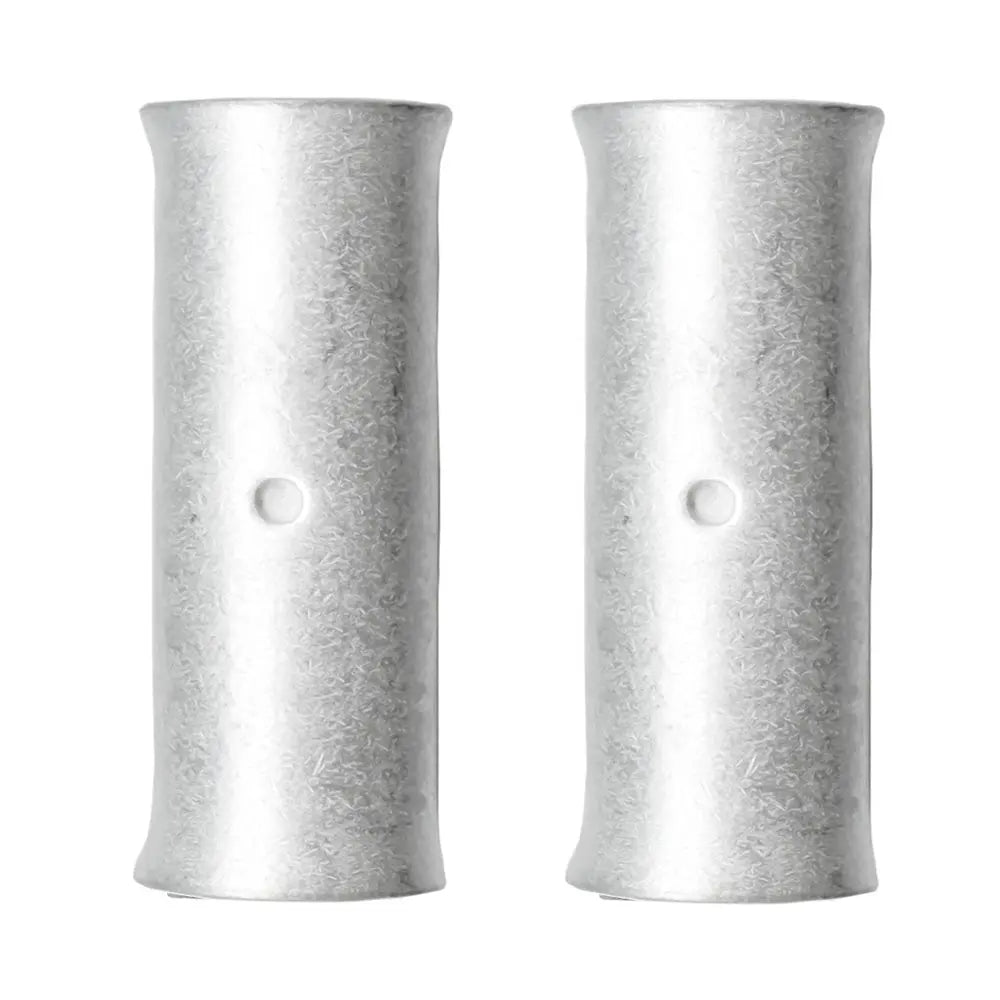

Seamless Butt Splice - 2/0 AWG - Non-Insulated - 2 Pack
Butt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next, simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and youre done. Pacer would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.
When using seamless tinned butt splices, make sure you have properly stripped your wires to the correct length. When you look inside of the butt splice, you will see an indentation. Make sure your conductors butt up against that. Insert the wire making sure the insulation touches the butt splice. This reduces the risk of a weaker connection. Now, the splice is crimped with the proper tool. This crimp creates a solid connection. Next, repeat the process on the other side and perform the tug test to make sure that the wires dont pull out. This process creates a durable, lasting connection. Butt splices are used for their rapid installation and durability. Other methods of connection just dont offer the same level of protection.
Features:
Specifications:
Compliances:
The Pacer TBS2/0-2 Seamless Butt Splice is designed for reliable and durable electrical connections in various wiring applications. Suitable for 2/0 AWG wires, this pair of non-insulated, tin-plated splices offers a seamless design that ensures a secure fit and long-lasting performance. Ideal for repairs and installations, these splices facilitate quick, efficient connections with minimal effort. Their seamless construction reduces corrosion risk and provides consistent conductivity, making them a dependable choice for professional electrical work.
Each splice features a precise indentation inside that guides proper wire insertion, ensuring that the conductor butts up against the contact point for optimal electrical contact. The tin plating enhances corrosion resistance and conductivity, while the seamless design allows for a smooth, uniform crimp. The package contains two splices, each measuring approximately 1.44 inches in length, with an internal diameter of about 0.496 inches, suitable for the specified wire gauge. These splices are compliant with industry standards, including UL and CSA approvals, RoHS compliance, and are manufactured with electrolytic tough pitch (ETP) copper rated at 100% conductivity for maximum performance.
Using the Pacer TBS2/0-2 splice is straightforward. After stripping the wire to the proper length, insert the conductor into the splice up to the indentation, ensuring the insulation touches the splice to reduce weak points. Crimp firmly with the appropriate tool to create a solid, long-lasting connection. Repeat on the other side and perform a tug test to verify the connection’s integrity. This method guarantees a safe, reliable, and corrosion-resistant electrical connection, ideal for automotive, industrial, and residential wiring projects. This splice offers a significant upgrade over traditional connection methods, providing peace of mind in critical electrical systems.
Features:
