SKU:105144

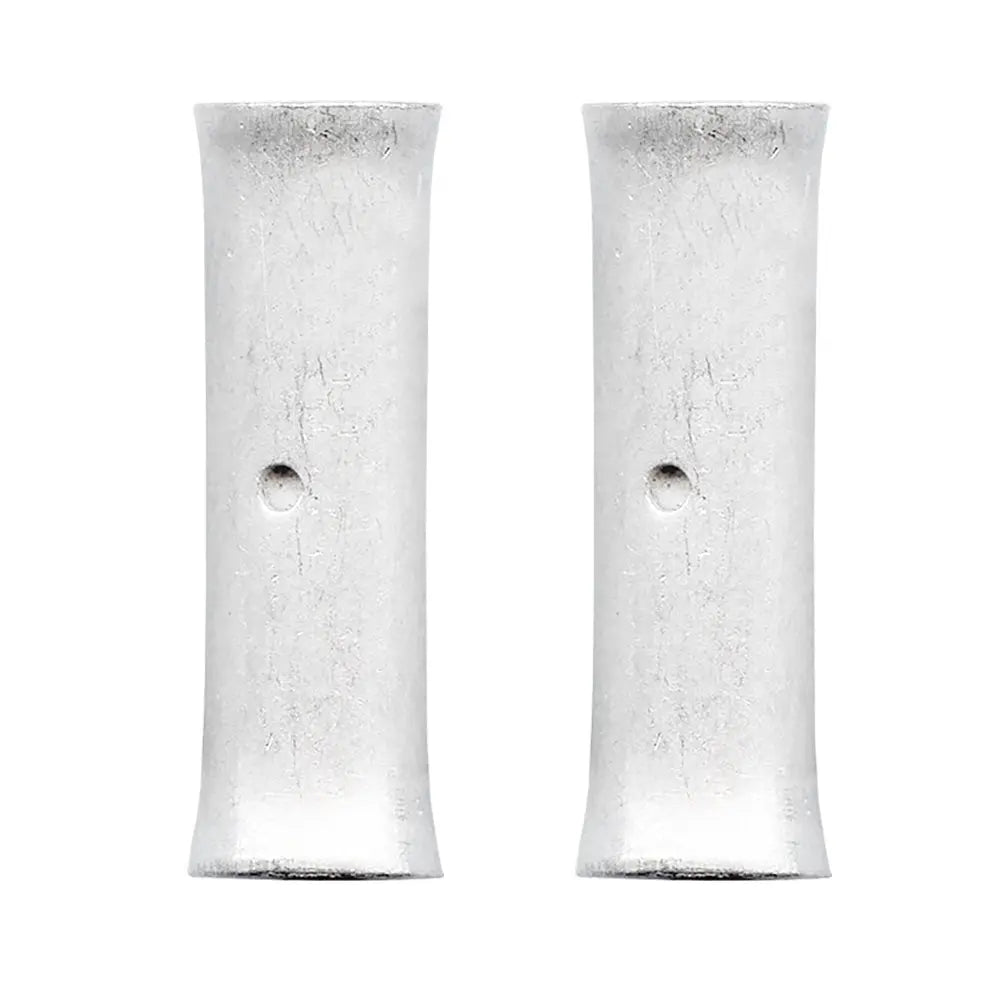

Seamless Butt Splice - 6 AWG - Non-Insulated - 10 Pack
Butt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next, simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and youre done. Pacer would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.
When using seamless tinned butt splices, make sure you have properly stripped your wires to the correct length. When you look inside of the butt splice, you will see an indentation. Make sure your conductors butt up against that. Insert the wire making sure the insulation touches the butt splice. This reduces the risk of a weaker connection. Now, the splice is crimped with the proper tool. This crimp creates a solid connection. Next, repeat the process on the other side and perform the tug test to make sure that the wires dont pull out. This process creates a durable, lasting connection. Butt splices are used for their rapid installation and durability. Other methods of connection just dont offer the same level of protection.
Features:
Specifications:
Compliances:
The Pacer TBS6-10 seamless butt splice is designed for reliable and durable electrical connections in 6 AWG wiring applications. Crafted from high-quality electrolytic tough pitch copper, these splices offer 100% conductivity and are ideal for quick, long-lasting repairs or installations. The seamless construction and tin plating ensure corrosion resistance and a secure fit, providing peace of mind in various electrical environments. These non-insulated connectors feature an easy-to-use design where proper wire preparation and crimping create a solid, dependable connection. Simply strip the wire, insert it into the splice until it reaches the indentation, and crimp using a compatible crimping tool. Performing a tug test afterward confirms the integrity of the connection, ensuring safety and durability. Suitable for both professional and DIY use, these splices are compliant with UL and CSA standards and RoHS regulations, making them a versatile choice for electrical projects that demand quality and longevity. Their compact size allows for efficient use in tight spaces while maintaining high performance in various electrical systems. Whether you're repairing existing wiring or installing new connections, the Pacer seamless butt splices deliver a dependable solution that minimizes installation time and maximizes electrical safety.
Features:
