Pacer TDT04F-12RP Deutsch Receptacle Repair Kit for 14-18 AWG Wires, 12-Position

DT Deutsch Receptacle Repair Kit - 14-18 AWG (12 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 12
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Pins
• Operating Temperature: -55C to 125C

Contents:

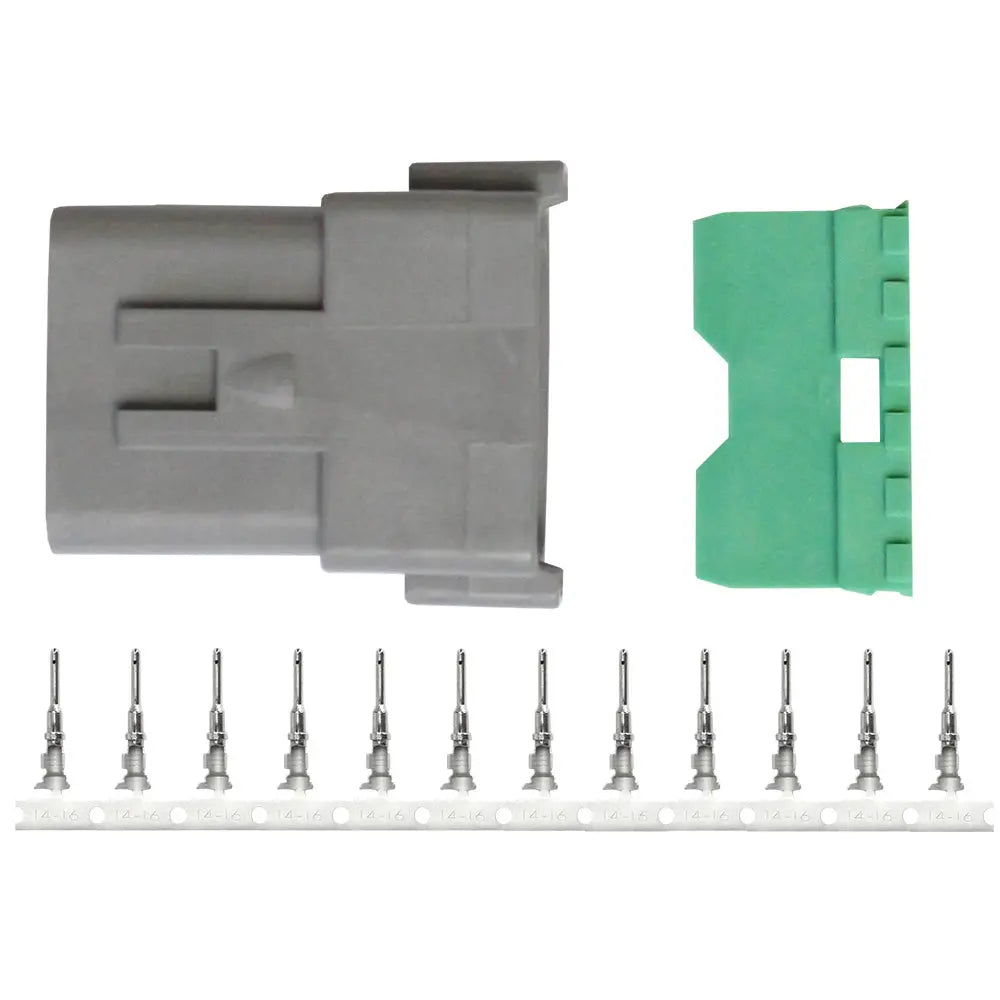

• (1) 12 pos. receptacle
• (1) 12 pos. wedge lock
• (14) pins
• (6) cavity plugs

The Pacer TDT04F-12RP Deutsch Receptacle Repair Kit is designed for reliable wire-to-wire connections in demanding environments. This kit includes all essential components to assemble a 12-position rectangular receptacle suitable for 14-18 AWG wires, featuring a rugged plastic housing reinforced with glass fiber for enhanced durability. The kit's design incorporates wedge locks that ensure precise contact alignment and secure retention, along with redundant silicone seals to provide ingress protection up to IP68 and IP6K9K, making it ideal for applications requiring waterproof and dustproof performance. The contacts are hand-insertable and removable, facilitating easy installation and maintenance in the field. Each kit contains a complete set of pins, cavity plugs to seal unused cavities, and a wedge lock, providing everything needed to establish a robust electrical connection in one package. The contacts are rated for continuous 13-amp operation, with the ability to withstand temperatures from -55°C to 125°C, ensuring reliable performance across a wide range of environments. Suitable for use in enclosed connectors, this repair kit delivers field-proven reliability in applications such as vehicle wiring, industrial machinery, and other rugged electrical systems. Compliant with IP68 and IP6K9K standards, as well as EU RoHS/ELV and UL-94 recognized materials, the Pacer TDT04F-12RP ensures safety, environmental compliance, and longevity in demanding conditions. Whether used for repairing existing connectors or creating new wire-to-wire connections, this kit offers a comprehensive and dependable solution for electrical professionals seeking quality, convenience, and durability.

Features:

• Includes all parts needed to assemble a 12-position connector

• Contains one to two extra terminals for convenience

• Cavity plugs included to seal open circuits

• Wedge locks ensure contact alignment and secure retention

• Redundant silicone seals provide ingress protection up to IP68 and IP6K9K

• Hand-insertable and removable contacts for easy installation and maintenance

• Plastic housing reinforced with glass fiber for rugged durability

• Rated for 13-amp continuous current operation

• Operating temperature range from -55°C to 125°C

• Suitable for wire sizes 14 AWG

• Designed for wire-to-wire applications in demanding environments
