Pacer TDT04F-2RP Deutsch Receptacle Repair Kit for 14-18 AWG Wire, 2-Position

DT Deutsch Receptacle Repair Kit - 14-18 AWG (2 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wire. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 2
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Pins
• Operating Temperature: -55C to 125C

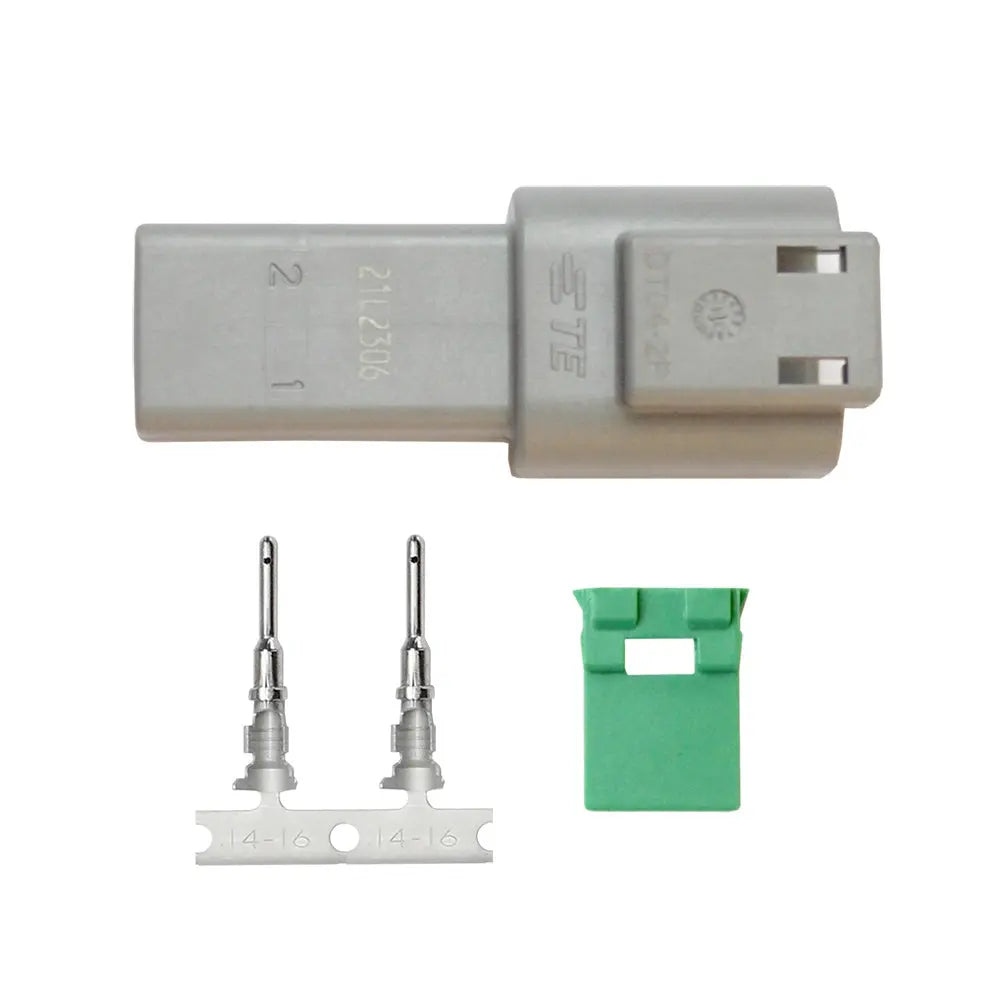

Contents:

• (1) 2 pos. receptacle
• (1) 2 pos. wedge lock
• (3) pins

The Pacer TDT04F-2RP Deutsch Receptacle Repair Kit is designed for reliable wire-to-wire connections in demanding environments. This kit includes all necessary components to assemble a 2-position rectangular receptacle compatible with 14-18 AWG wire sizes, ensuring secure and durable electrical connections. Constructed with a plastic housing reinforced with glass fiber, the receptacle offers excellent durability and resistance to harsh conditions. The kit features wedge locks that guarantee proper contact alignment and retention, along with redundant silicone seals to provide ingress protection up to IP68 and IP6K9K standards, making it suitable for outdoor and industrial applications. Easy to assemble and maintain, the kit includes one receptacle, one wedge lock, and three pins, providing all essential parts for quick installation and field repairs.

Designed for applications requiring rugged reliability, this connector is ideal for wire-to-wire connections in enclosed environments. Its UL-94 recognized plastic and compliance with EU RoHS and ELV standards ensure it meets safety and environmental regulations. The contacts are hand-insertable and removable, facilitating maintenance and modifications. Operating across a temperature range from -55°C to 125°C, the receptacle maintains performance in extreme conditions. The versatile design supports continuous current of 13 amps per contact, making it suitable for a wide range of electrical systems.

Whether used in automotive, industrial, or other harsh environments, the Pacer TDT04F-2RP Deutsch Receptacle Repair Kit offers a dependable solution for secure electrical connections. Its comprehensive package, including cavity plugs to seal open circuits, ensures that your wiring remains protected from contaminants and moisture. This kit is an essential component for technicians and engineers seeking a durable, easy-to-install connector that maintains high performance in challenging conditions.

Features:

• Includes all parts needed to assemble a 2-position connector

• Extra terminals included for flexibility

• Cavity plugs provided to seal open circuits

• Wedge locks ensure contact alignment and retention

• Redundant silicone seals for ingress protection

• Hand-insertable and removable contacts for easy maintenance

• Constructed with durable plastic reinforced with glass fiber

• Operates effectively from -55°C to 125°C

• Compliant with IP68 and IP6K9K ingress protection standards

• Meets EU RoHS and ELV environmental standards
