SKU:102496
DT Deutsch Receptacle Repair Kit - 14-18 AWG (3 Position)
Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.
Features:
Applications:
Compliances:
Characteristics:
Technical Specifications:
Contents:

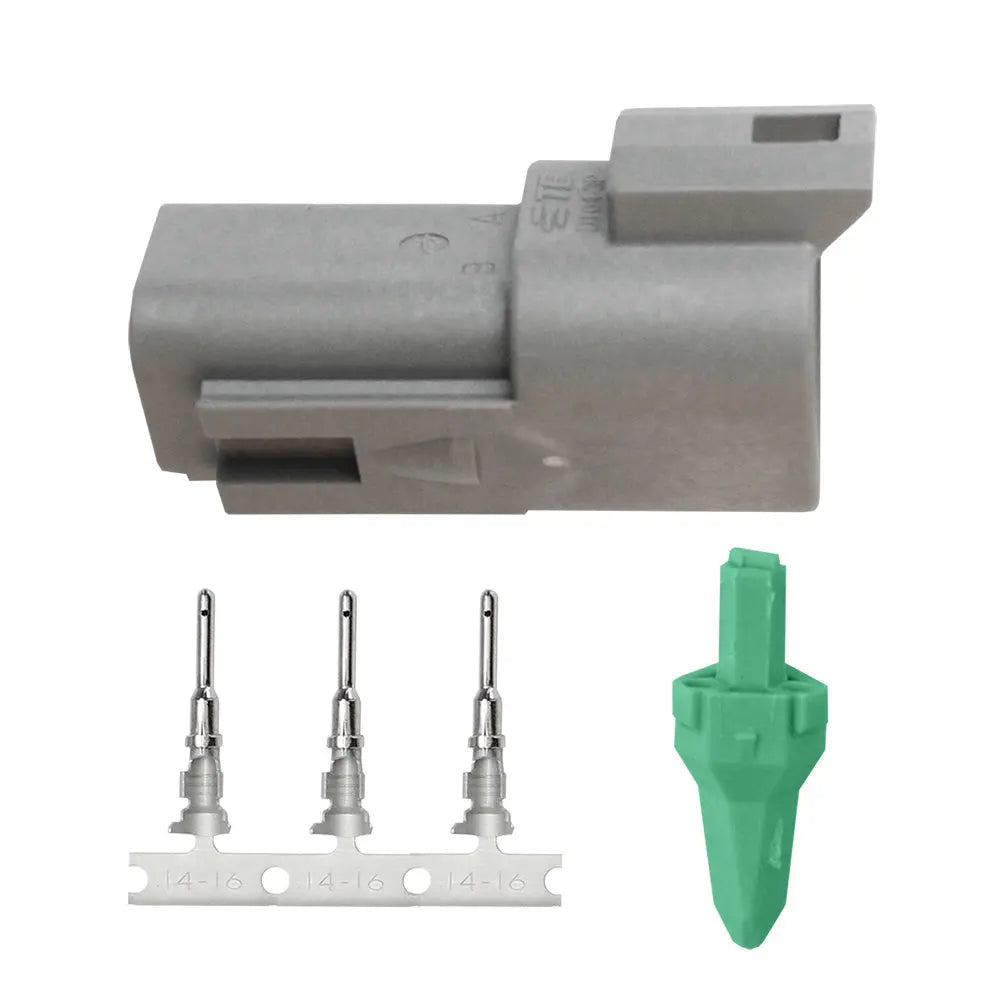

The Pacer TDT04F-3RP Deutsch Receptacle Repair Kit is designed for reliable wire-to-wire connections in demanding electrical applications. This kit includes all necessary components to assemble a 3-position rectangular receptacle housing made from durable plastic reinforced with glass fiber, ensuring rugged performance in various environments. The kit features high-quality 16 contacts capable of handling 13 amps each, suitable for wire sizes up to 14 AWG, making it ideal for applications requiring secure and resilient electrical connections. The design incorporates wedge locks that guarantee precise contact alignment and retention, while redundant silicone seals provide IP68 and IP6K9K ingress protection, safeguarding against dust and water intrusion. The contacts are hand-insertable and removable, facilitating ease of installation and maintenance, while cavity plugs allow sealing of open circuits to prevent contamination and moisture ingress. The operating temperature range from -55°C to 125°C ensures dependable performance across a wide spectrum of environmental conditions, making this kit suitable for industrial, automotive, and other rugged applications. The contents include a 3-position receptacle, wedge lock, four pins, and a cavity plug, providing a comprehensive solution for field repairs or custom wiring setups.
Features:
