Pacer TDT04F-4RP Deutsch Receptacle Repair Kit for 14-18 AWG Wires, 4 Position

DT Deutsch Receptacle Repair Kit - 14-18 AWG (4 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 4
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Pins
• Operating Temperature: -55C to 125C

Contents:

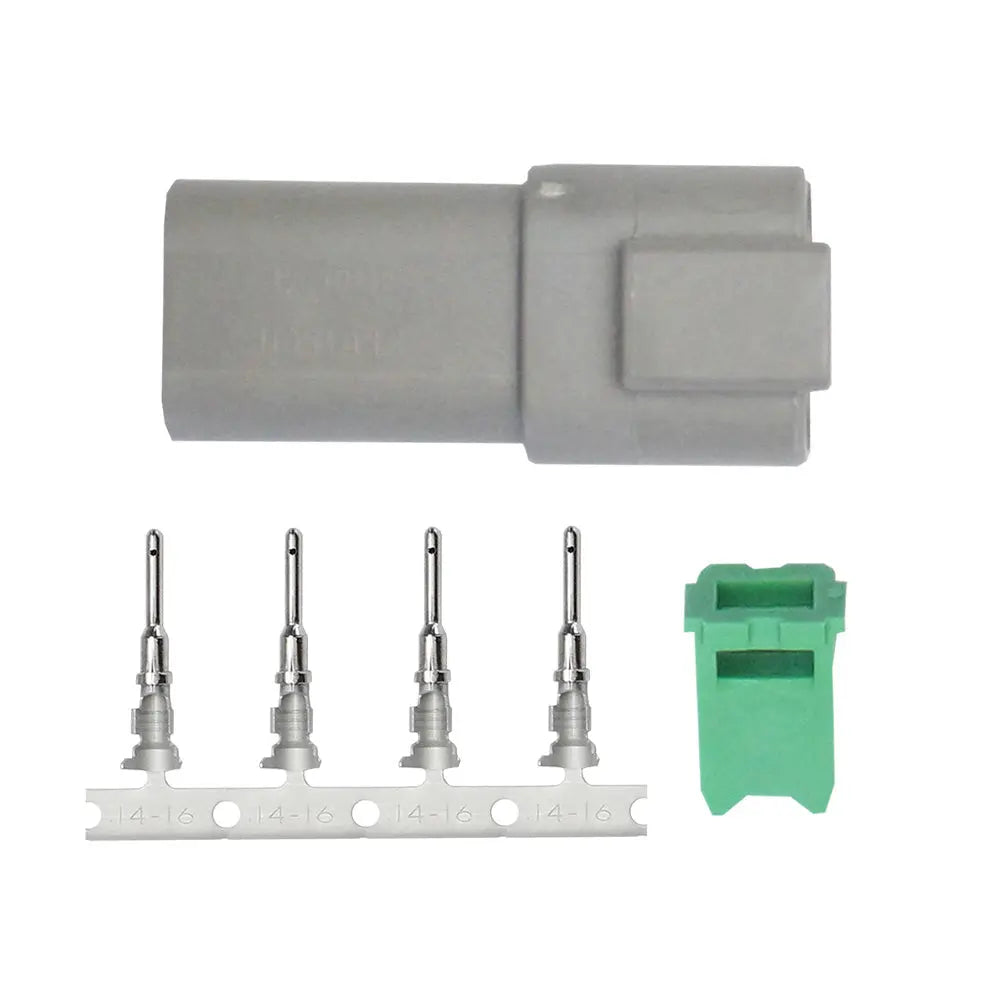

• (1) 4 pos. receptacle
• (1) 4 pos. wedge lock
• (5) pins
• (2) cavity plugs

The Pacer TDT04F-4RP Deutsch Receptacle Repair Kit is designed for reliable wire-to-wire connections in demanding electrical applications. This kit includes all necessary components to assemble a 4-position rectangular receptacle suitable for use with 14 AWG wires, providing a robust connection solution for various environments. The housing is constructed from reinforced plastic with glass fiber, ensuring durability and resistance to harsh conditions, while wedge locks maintain precise contact alignment and secure retention for dependable performance. Redundant silicone seals offer enhanced ingress protection, achieving IP68 and IP6K9K ratings, making this connector suitable for applications exposed to water, dust, and vibrations. The kit contains a 4-position receptacle, wedge lock, five pins, and cavity plugs to seal open circuits, facilitating versatile and sealed connections in complex wiring systems. The contacts are hand-insertable and removable, simplifying installation and maintenance without sacrificing security or electrical integrity. With a temperature range from -55°C to 125°C, this receptacle is engineered for high-performance environments where stability and safety are paramount. The design supports continuous operation at 13 amps per contact, suitable for numerous industrial, automotive, and field applications, ensuring versatility across multiple sectors. Built to meet standards such as UL-94 recognition and EU RoHS/ELV compliance, the TDT04F-4RP offers a combination of safety, durability, and reliability, making it an ideal choice for electricians and engineers seeking a proven connector solution.

Features:

• Includes all parts needed to assemble a 4-position connector

• Supplies one to two extra terminals for replacement or expansion

• Cavity plugs seal open circuits to prevent moisture ingress

• Wedge locks ensure contact alignment and secure retention

• Redundant silicone seals enhance ingress protection

• Hand-insertable and removable contacts for easy installation and maintenance

• Constructed with reinforced plastic housing for durability

• Supports a temperature range from -55°C to 125°C

• Rated for 13 amps per contact for reliable power transfer

• Compliance with IP68/IP6K9K, UL-94, and RoHS standards
