Pacer TDT04F-8RP Deutsch Receptacle Repair Kit for 14-18 AWG Wires, 8-Position

DT Deutsch Receptacle Repair Kit - 14-18 AWG (8 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 8
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Pins
• Operating Temperature: -55C to 125C

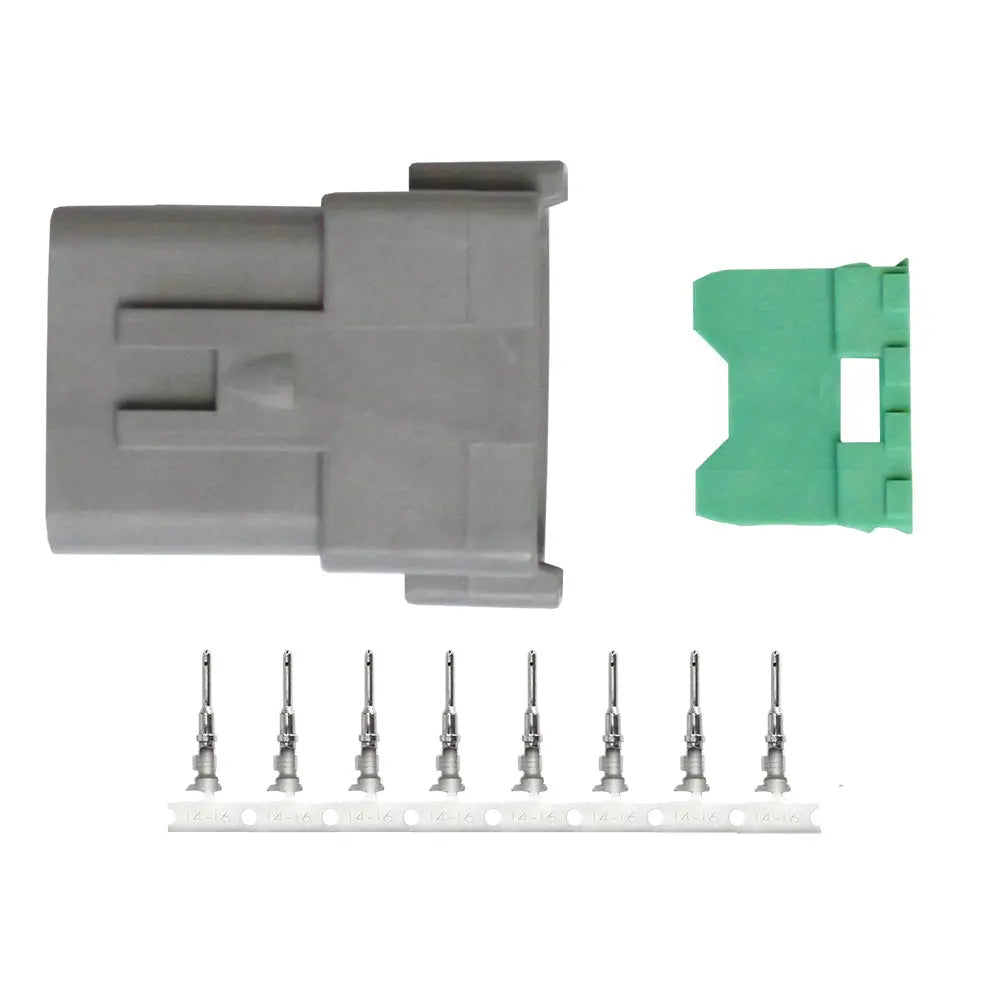

Contents:

• (1) 8 pos. receptacle
• (1) 8 pos. wedge lock
• (10) pins
• (4) cavity plugs

The Pacer TDT04F-8RP Deutsch Receptacle Repair Kit is designed for reliable wire-to-wire connections in demanding environments. This kit includes all necessary components to assemble an 8-position rectangular receptacle with a durable plastic housing reinforced with glass fiber, ensuring rugged performance. It is ideal for applications requiring secure, waterproof connections with an Ingress Protection rating of IP68 and IP6K9K, making it suitable for harsh conditions. The kit features hand-insertable and removable contacts, wedge locks for secure contact retention, and redundant silicone seals to prevent moisture ingress, delivering field-proven reliability for critical electrical systems. With a 13-amp continuous capacity per contact, the kit accommodates 14 AWG wires, providing versatile use in various industrial, automotive, and equipment applications. The included cavity plugs allow sealing of unused cavities, enhancing system durability and environmental protection. The components are compliant with EU RoHS/ELV standards and recognized under UL-94, assuring safety and environmental standards are met. This comprehensive kit simplifies assembly and maintenance, offering peace of mind for technicians working in challenging conditions. Whether for repair or assembly, the Pacer Deutsch Receptacle Repair Kit ensures high-quality, dependable connectors for your electrical needs.

Features:

• Includes all parts needed for connector assembly

• Contains one to two extra terminals for flexibility

• Cavity plugs included to seal unused circuits

• Wedge locks ensure contact alignment and retention

• Redundant silicone seals provide environmental protection

• Hand-insertable and removable contacts for easy maintenance

• Housing designed for rugged applications with IP68/IP6K9K ratings

• Suitable for 14 AWG wires with 13-amp capacity
